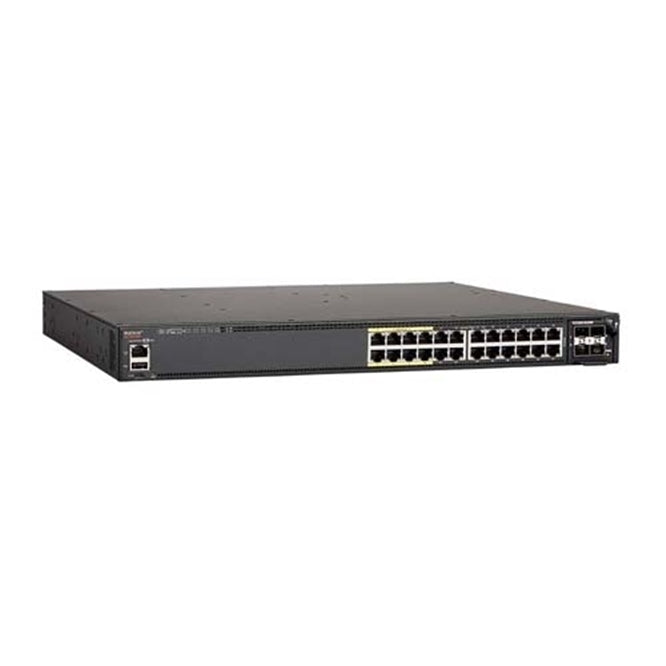

RUCKUS ICX 7450-24P
RUCKUS รุ่น ICX 7450-24P
Mid-Range 24 Ports 1G PoE Switch
คุณสมบัติ
- 24×10/100/1000 Mbps RJ-45 PoE+ ports with eight pre-assigned ports supporting PoH, IEEE 802.3bt
ready ports (90W) - Support Ruckus ICX 7450 Port and Service Module (Options)
- Switching capacity: 288 Gbps
- Lifetime Limited Warranty
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
General Specifications
| Switching Capacity, maximum | 288 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 24 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 12 |
| 10 GbE RJ45 Ports, quantity, maximum | 12 |
| 40 GbE QSFP Ports, quantity, maximum | 3 |
| PoE Power Budget, maximum | 1500 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 960 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | Yes |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | Yes |
| MACsec | Yes |
| BGP | Yes |
| Reversible Airflow Option | Yes |
| VxLAN | No |
| Multi Chassis Trunking (MCT) | No |
