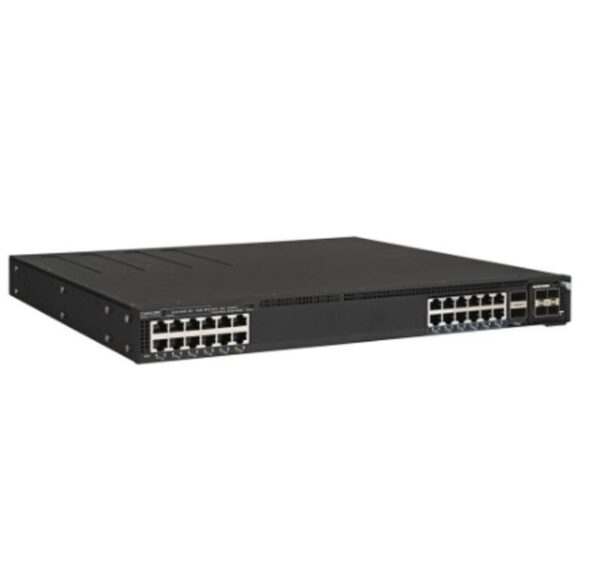

RUCKUS ICX 7550-24ZP
RUCKUS รุ่น ICX 7550-24ZP
Mid-Range 24 Ports MultiGigabit PoE Switch
คุณสมบัติ
- 12-port 10/100/1000 Mbps/2.5 Gbps 802.3bt POE,
- 12-port 100/1000 Mbps/2.5/5/10 Gbps 802.3bt POE
- 2-port 40/100 Gbps Uplink/Stack QSFP28, expansion module slot
- 24-PoE port 802.3bt, up to 90W per port, up to 2000W PoE budget
- Perpetual and Fast-boot POE on all ports
- Switching capacity: 700 Gbps
- Lifetime Limited Warranty
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
General Specifications
| Switching Capacity, maximum | 700 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 24 |
| 1 GbE SFP Ports, quantity, maximum | 4 |
| 10 GbE SFP+ Ports, quantity, maximum | 4 |
| 1/2.5 GbE RJ45 Ports, quantity, maximum | 12 |
| 1/2.5/5/10 GbE RJ45 Ports, quantity, maximum | 12 |
| 40 GbE QSFP Ports, quantity, maximum | 4 |
| 100 GbE QSFP28 Ports, quantity, maximum | 2 |
| PoE Power Budget, maximum | 2000 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 2400 Gb/s |
| PoE/PoE+ | Yes |
| Stacking | Yes |
| sFlow | Yes |
| Layer 3 (STATIC, RIP, OSPF) | Yes |
| OpenFlow with Hybrid Port Mode | Yes |
| Campus Fabric Technology | No |
| Redundant Power Option | Yes |
| Hot Swap Internal Power Supplies & Fans | Yes |
| 802.3bt2 (90 W PoE Power per Port) | Yes |
| VRF | Yes |
| EEE (Energy Efficient Ethernet) | Yes |
| IPsec VPN, with service module | No |
| MACsec | Yes |
| BGP | Yes |
| Reversible Airflow Option | Yes |
| VxLAN | Yes |
| Multi Chassis Trunking (MCT) | No |
ดาวน์โหลด
