Ruijie XS-S1960-10GT2SFP-P-H

Ruijie XS-S1960-10GT2SFP-P-H

Ruijie รุ่น XS-S1960-10GT2SFP-P-H

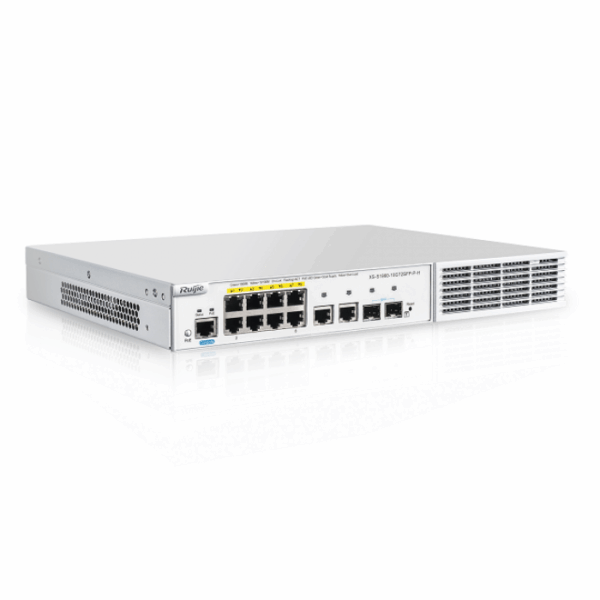

L2+ Managed Gigabit POE Switch 10 Port, POE 8 Port 125W

คุณสมบัติ

Ruijie XS-S1960-10GT2SFP-P-H L2+ Managed Gigabit POE Switch 10 Port, 2 SFP, จ่ายไฟ POE มาตรฐาน 802.3at จำนวน 8 Port จ่ายไฟสูงสุด 125W
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ

หมวดหมู่: อุปกรณ์เน็ตเวิร์ค (Network), Ruijie, Switches ป้ายกำกับ: Ruijie

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คำอธิบาย
ข้อมูลเพิ่มเติม

Product Specification
Overview	Ruijie XS-S1960-10GT2SFP-P-H L2+ Managed Gigabit POE Switch 10 Port, 2 SFP, จ่ายไฟ POE มาตรฐาน 802.3at จำนวน 8 Port จ่ายไฟสูงสุด 125W รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ
Ports	10 Port 10/100/1000BASE-T 2 Port SFP
PoE/PoE+ Enabled Ports	8 Port
PoE Power Budget	125W
Packet Buffer	12 Mbit
CPU Memory	512 MB
Flash	256 MB
Dimensions(WxDxH)	340 x 260 x 43.6 mm
Unit Weight	2.5kg
Maximum Power Rating	165 W
Cooling	Fanless
Safety	EN 62368-1
EMC	EN 300 386
Emissions	EN 55032
ESD	EN 61000-4-2
Radiated	EN 61000-4-3
EFT/Burst	EN 61000-4-4
Surge	EN 61000-4-5
Conducted	EN 61000-4-6
Power frequency magnetic field	EN 61000-4-8
Voltage dips and interruptions	EN 61000-4-11
Harmonics	EN 61000-3-2
Flicker	EN 61000-3-3
Operating Temperature	0 ℃ ~ 45 ℃
Storage Temperature	-40 ℃ ~ 70 ℃
Opertaing Humidity	10%~90% RH
Storage Humidity	5%~95% RH
Operating Altitude	-50m ~ 5000m
Package Contents	Ruijie XS-S1960-H Series Switch Power Cord Mounting Kit Rubber Feet Console Cable RJ45-RJ45 UTP Cable Grounding Cable Quick Start Guide
Performance
Switching Capacity	24Gbps
Forwarding Rate	18Mpps
ARP Table Size	500
MAC Table Size	16K
L2 Feature
STP	Support
RSTP	Support
MSTP	64 instances
Port Grouping	LACP
VLAN	IEEE802.1Q/ MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN
GVRP	Support
IGMP Snooping	(v1/v2/v3)/ SGVL/IVGL/IGMP filter/IGMP fast leave
Jumbo Frame	9KB
QinQ	Support
G.8032/ERPS	Support
L3 Feature
IPv4 Routing	Static/RIP/OSPFv1/v2/VRRP
IPv6 Routing	Static/RIPng/OSPFv3/ND(Neighbor Discovery)/VRRPv3/VRRP+
Ping	IPv4 and IPv6
Traceroute	IPv4 and IPv6
DHCP	Server/Client/Relay
ARP Features	ARP Proxy/Trusted ARP/ARP-Based IP Guard/Gratuitous ARP/ARP-Check
Reliability
VSU
GR	Support
REUP	Support
RLDP	Support
DLDP	Support
Security
CPP	Support
SSH	Support
SSL	Support
IEEE802.1X	Support
Port Security	Support
Radius	Support
TACACS+	Support
IP-MAC Binding	Support
ACL	IPv4 and IPv6, Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port
IP Source Guard	IPv4 and IPv6
DHCP Snooping	IPv4 and IPv6
QoS
Stream classification	Classification based on IEEE802.1p/DSCP/TOS
Shaping	Rate-limit on ingress/egress traffic on interface
Congestion avoidance	RED, WRED, Tail drop
Congestion management	SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port
Management
Web User Interface	Support
HTTP/HTTPS	Support
Ruijie Cloud Management	Support
RG-SNC Management	Support
Command Line Interface	Telnet/Console
SNMP	Support
Smart+ for CCTV	Auto Smart Deployment/Remote Reboot Helper
SYSLOG	Support
NTP	Support
Public MIBs	Support
Private MIBs	Support
RMON	1/2/3/9
Firmware Upgrade	Support
Port Mirroring	Support
