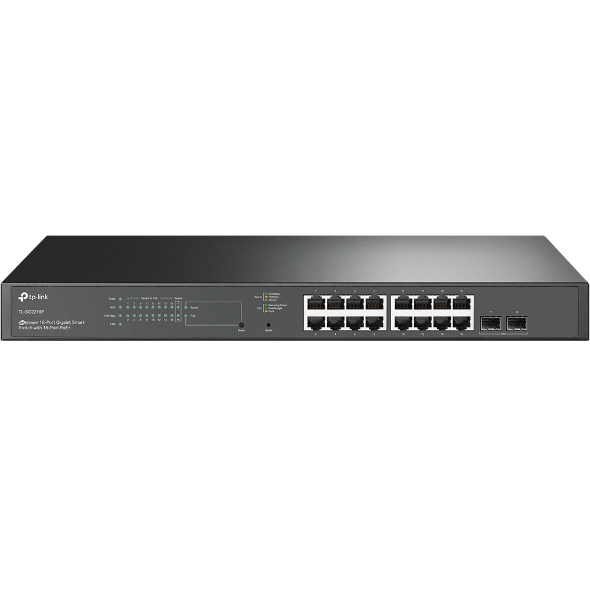

SG2218P | JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
TP-Link Omada SG2218P
18-Port Gigabit Smart PoE+ Switch
- 16×Gigabit PoE+ ports with 2×Gigabit SFP slots
- Supports IEEE 802.3af/at PoE with 150W PoE budget
- Supports VLAN, ACL, QoS, IGMP Snooping and Static Routing
- Cloud management via Omada SDN Controller and Omada App
- Supports Web, CLI, SNMP and RMON management
- Rackmount metal design with fanless operation
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ Omada SG2218P
| Features | Description |
|---|---|
| Device Type | 18-Port Gigabit Smart PoE+ Switch |
| Network Ports | 16 × 10/100/1000Mbps PoE+ RJ45 Ports + 2 × Gigabit SFP Slots |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | Up to 150W Total PoE Power Budget |
| PoE Output | Up to 30W Per PoE Port |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mpps |
| Management | Omada Cloud Controller, Web GUI, CLI, SNMP, RMON |
| Smart Features | VLAN, ACL, QoS, Static Routing, IGMP Snooping |
| Design | Metal Rackmount Case with Fanless Design |
| Application | IP Camera, Wireless AP, Enterprise Network |
| Device Type | Omada Smart Gigabit PoE+ Switch |
|---|---|
| Network Ports | 16 × Gigabit PoE+ RJ45 Ports + 2 × Gigabit SFP Slots |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | 16 × PoE+ Ports |
| Total PoE Budget | 150W |
| PoE Output | Up to 30W Per Port |
| PoE Functions | Fast PoE, Perpetual PoE |
| SMART FEATURES | |
|---|---|
| Management | Omada Cloud Controller, Omada App, Web GUI, CLI |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN |
| QoS | 802.1p CoS / DSCP Priority, Bandwidth Control |
| Security | ACL, 802.1X, IP-MAC-Port Binding, Port Security |
| Multicast | IGMP Snooping, Multicast VLAN Registration |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3af / 802.3at / 802.3x |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Routing | IPv4/IPv6 Static Routing |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount Case |
| Cooling | Fanless Design |
| Power Supply | 100–240V AC, 50/60Hz |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 180 × 44 mm |
| Installation | Rack Mountable |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The Omada SG2218P is an 18-port Gigabit Smart PoE+ switch with 16 PoE+ ports, 150W PoE budget, SFP uplinks, and advanced Layer 2 management. Suitable for IP cameras, access points, and enterprise networks.
