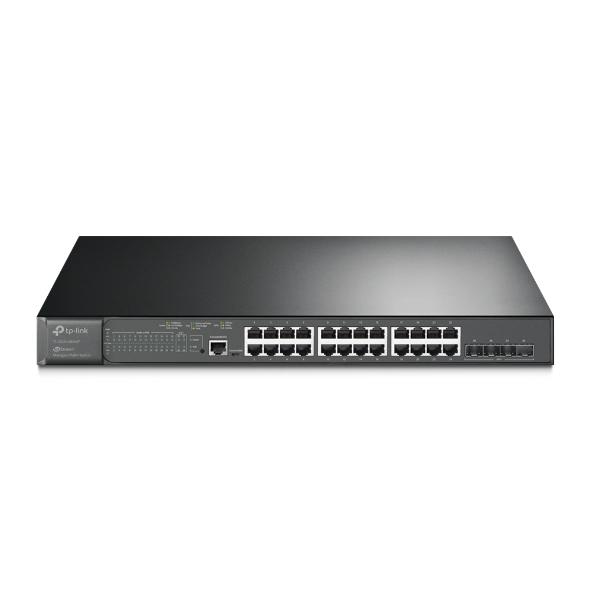

SG3428XMP | JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
TP-Link Omada SG3428XMP
24-Port Gigabit L2+ Managed PoE+ Switch
- 24×Gigabit PoE+ ports with 4×10G SFP+ uplink slots
- Supports IEEE 802.3af/at PoE with 384W PoE budget
- Supports VLAN, ACL, QoS, IGMP Snooping and Static Routing
- Cloud management via Omada SDN Controller and Omada App
- Supports Web, CLI, SNMP, RMON and advanced security features
- Rackmount design suitable for CCTV, AP and enterprise networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ Omada SG3428XMP
| Features | Description |
|---|---|
| Device Type | 24-Port Gigabit L2+ Managed PoE+ Switch with 10G SFP+ Uplink |
| Network Ports | 24 × 10/100/1000Mbps PoE+ RJ45 Ports + 4 × 1/10Gbps SFP+ Slots |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | Up to 384W Total PoE Power Budget |
| PoE Output | Up to 30W Per PoE Port |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| Management | Omada Cloud Controller, Web GUI, CLI, SNMP, RMON |
| Smart Features | VLAN, ACL, QoS, Static Routing, ERPS, IGMP Snooping |
| Design | Metal Rackmount Case with Smart Fans |
| Application | IP Camera, Wireless AP, Enterprise Network |
| Device Type | Omada L2+ Managed Gigabit PoE+ Switch |
|---|---|
| Network Ports | 24 × Gigabit PoE+ RJ45 Ports |
| Uplink Ports | 4 × 10G SFP+ Slots |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16K |
| Jumbo Frame | 9 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | 24 × Gigabit PoE+ Ports |
| Total PoE Budget | 384W |
| PoE Output | Up to 30W Per Port |
| PoE Functions | Fast PoE, Perpetual PoE |
| SMART FEATURES | |
|---|---|
| Management | Omada Cloud Controller, Omada App, Web GUI, CLI |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN |
| QoS | 802.1p CoS / DSCP Priority, Bandwidth Control |
| Security | ACL, 802.1X, IP-MAC-Port Binding, Port Security, DHCP Snooping |
| Multicast | IGMP Snooping, MLD Snooping |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3z / 802.3ae / 802.3af / 802.3at / 802.3x |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Routing | IPv4 / IPv6 Static Routing |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount Case |
| Cooling | 2 × Smart Fans |
| Power Supply | 100–240V AC, 50/60Hz |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 440 × 330 × 44 mm |
| Installation | Rack Mountable |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The Omada SG3428XMP is a 24-port Gigabit L2+ Managed PoE+ switch with 384W PoE budget, 4×10G SFP+ uplinks, and advanced network management. Suitable for enterprise networks, IP cameras, and high-performance access points.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
