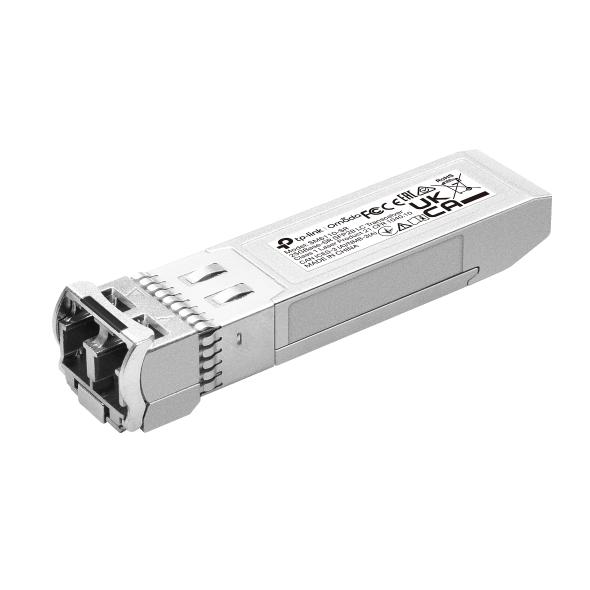

Specifications TP-Link SM6110-SR
| Features | Specifications |
|---|---|
| Product Type | 25GBase-SR SFP28 LC Transceiver |
| Model | SM6110-SR |
| Data Rate | 10.31 Gbps / 25.78 Gbps |
| Wavelength | 850 nm |
| Fiber Type | Multi-mode Fiber, 50/125 µm or 62.5/125 µm |
| Maximum Cable Distance | 70 m (OM3) at 25.78 Gbps; 100 m (OM4) at 25.78 Gbps; 300 m (OM3) at 10.31 Gbps |
| Connector | Duplex LC/UPC |
| Standards and Protocols | IEEE 802.3ae, IEEE 802.3by, SFF-8402, SFF-8431, SFF-8432, SFF-8472, eCPRI, CPRI, TCP/IP |
| Power Supply | 3.3V |
| Power Consumption | ≤ 1W |
| Digital Diagnostic Monitoring (DDM) | Supported |
| SFP Compatibility | SFP28 MSA / SFP+ MSA |
| Hot Swappable | Supported |
| Laser Class | Class 1 |
| Dimensions (W × D × H) | 57 × 14 × 13.45 mm |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10–90% RH, Non-condensing |
| Storage Humidity | 5–90% RH, Non-condensing |
| Certifications | CE, FCC, RoHS |
Important: The TP-Link SM6110-SR is a 10G/25GBASE-SR multi-mode SFP28 transceiver with an 850 nm wavelength. It supports DDM, hot-swapping and duplex LC/UPC connectivity for short-distance fiber connections.
