ST6000VX001-520

ST6000VX001-520

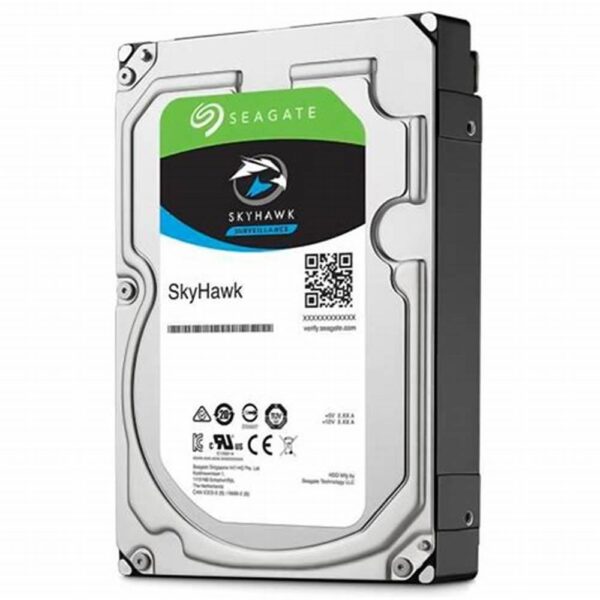

Seagate SkyHawk ST6000VX001-520

6TB Surveillance Hard Drive

  • 6TB capacity with 3.5-inch form factor
  • SATA 6Gb/s interface with 7200RPM
  • 256MB cache with up to 180MB/s transfer rate
  • CMR recording with ImagePerfect firmware
  • Supports up to 64 HD cameras and 180TB/year workload
  • 1 million-hour MTBF with 3-year warranty
หมวดหมู่: , ป้ายกำกับ:

Specifications Seagate ST6000VX001-520

Features Specifications
Product Type SkyHawk Surveillance Hard Drive
Capacity 6TB
Form Factor 3.5-inch
Interface SATA 6Gb/s
Recording Technology CMR
Cache 256MB
Maximum Sustained Transfer Rate Up to 180MB/s
Average Latency 6.0ms

Surveillance Features

Features Specifications
Surveillance Workload Designed for 24/7 Video Surveillance
Cameras Supported Up to 64 Cameras
Drive Bays Supported Up to 16 Bays
SkyHawk Health Management Supported
Rotational Vibration Sensors Supported
Load/Unload Cycles Up to 600,000
Annual Workload Rate Up to 180TB/year
MTBF Up to 1,000,000 Hours

Power & Reliability

Features Specifications
Startup Current 1.8A at 12V
Voltage 5V ±5%, 12V ±10%
Operating Temperature 0°C to 70°C
Non-Operating Temperature -40°C to 70°C
Operating Humidity 5% to 90% RH
Non-Operating Humidity 5% to 95% RH

General

Features Specifications
Height 26.1 mm
Width 101.6 mm
Depth 146.99 mm
Weight Approx. 610 g
Warranty 3 Years Limited Warranty

Note: ST6000VX001-520 is a 6TB Seagate SkyHawk surveillance hard drive designed for continuous 24/7 video recording in CCTV and NVR systems.

Important: Actual recording capacity and supported camera count may vary depending on camera resolution, bitrate, recording mode and NVR configuration.
