CAMERA

Image Sensor : 1/3” Progressive Scan CMOS Starlight Sensor

Lens

• Focal Length: 3.2 mm

• Aperture: F1.6

• Field of View: 112° (Diagonal), 95°(Horizontal), 53°(Vertical)

Motion Range

• Pan Mechanical Range: 340° (360° Pan Coverage)

• Tilt Mechanical Range: 60° (130° Tilt Coverage)

Night Vision

• 850 nm IR LED (98 ft / 29.9 m)

• Starlight Color Night Vision

Lighting : 2× Built-in Spotlights

Interface & Button

• 1× Ethernet Port

• 1× RESET Button

• 1× MicroSD Card Slot (Up to 512GB)

VIDEO & AUDIO

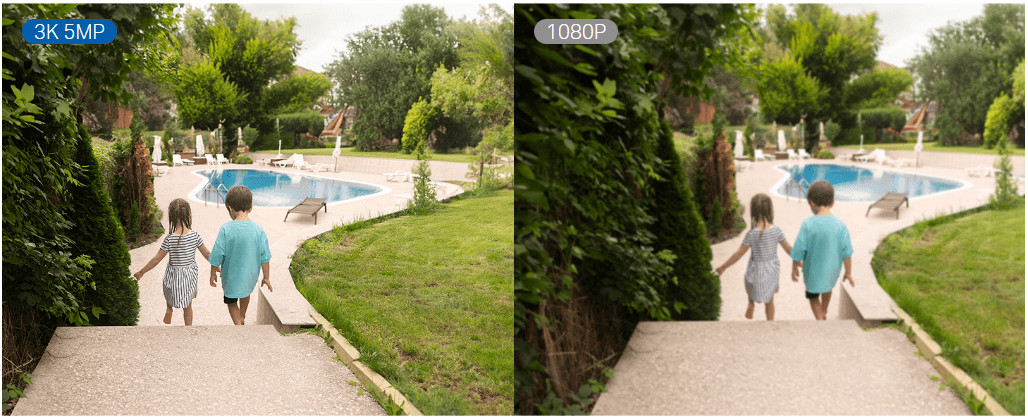

Maximum Resolution : 3K 5MP (2880 × 1620 px)

Frame Rate : 15/20/25/30 fps (Default 15 fps)

Digital Zoom : 12x

Video Compression : H.264

Live View : Yes

Image Enhancement

• 3DNR

• WDR

Audio Input & Output : Built-in Microphone and Speaker

Audio Communication : Two-Way Audio with Noise Cancellation

Siren Volume : 93 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage

• MicroSD Card Slot on Camera (Up to 512 GB)

• General Information about using MicroSD Cards >

Cloud Storage : Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

AI Detection

• Motion Detection

• Person Detection

• Pet Detection

• Vehicle Detection

• Line-Crossing Detection

• Tamper Detection

Activity Zones : Yes

Output Notification

• System Notification

• System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity : Connect via Wi-Fi or Ethernet

Wireless Connectivity : IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi

Ethernet Port : 1× 10/100 Mbps RJ45 Port on Camera

RTSP : Yes

ONVIF : Yes

SECURITY

Security

• On-Device Machine Learning

• 128-bit AES Encryption with SSL/TLS

• WPA/WPA2-PSK

POWER

Power Source : 9V DC Power Adapter

Input Voltage : 100-240 V, 50/60 Hz

Output Voltage : 9 V, 0.85 A (DC Power)

GENERAL

Smart Integration : Google Assistant, Amazon Alexa

Weather Resistance : IP66

System Requirements : Tapo App: iOS 12.0+ and Android 5.0+ operating systems.

Mounting Options

• Ceiling-Mounted

• Wall-Mounted

• Pole-Mounted (Pole-Mounting loops required but not included)

Operating Temperature : -30°C~60°C

Storage Temperature : -40°C~60°C℃

Operating Humidity : 10%~90% RH, Non-condensing

Storage Humidity : 0~90% RH, Non-condensing

Dimensions : 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)

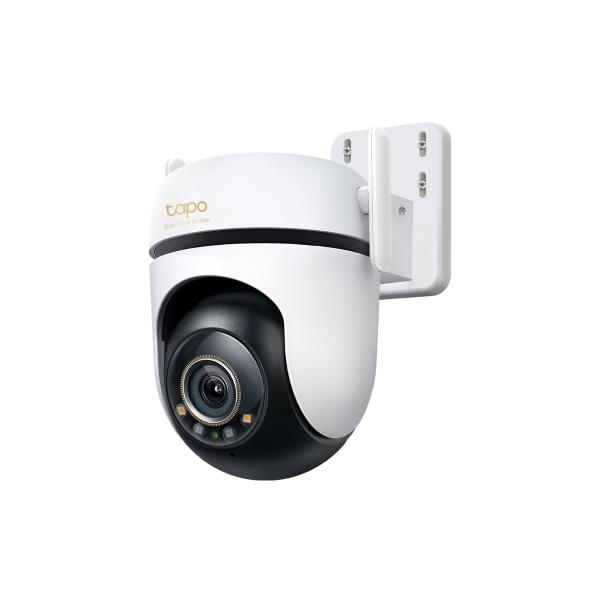

Package Contents : Tapo C530WS Camera

Power Adapter

• Mounting Anchors

• Mounting Screws

• Bracket Screws

• Mounting Template

• Mounting Bracket

• Waterproof Seal

• Waterproof Cable Attachments

• Quick Start Guide

Certifications : CE, FCC, RoHS, RCM
