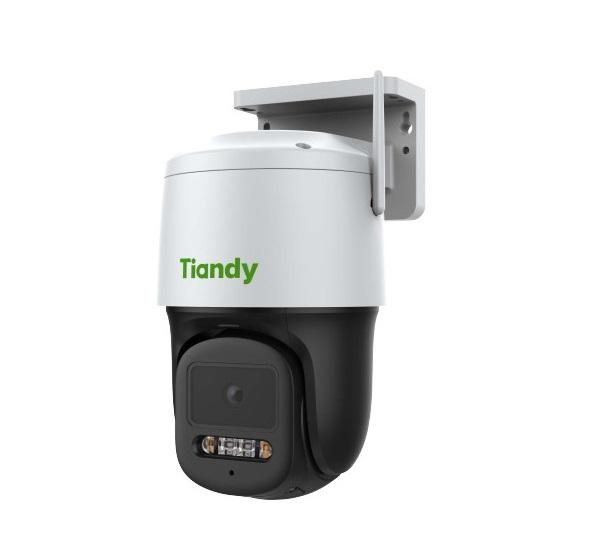

TC-H334S Spec:I5W/C/WIFI/4mm/V4.1
Tiandy รุ่น TC-H334S Spec:I5W/C/WIFI/4mm/V4.1
3MP Dual Light Wi-Fi
- วัสดุตัวเรือนโลหะ + พลาสติก
- ความละเอียดสูงสุด 2560×1440@25fps
- ไฟส่องสว่างสี: 0.02Lux@F1.6
- IR อัจฉริยะ, ระยะ IR: 30 ม
- ไมค์ในตัว
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Tiandy TC-H334S Spec:I5W/C/WIFI/4mm/V4.1
Metal+Plastic Housing Up to 2560×1440@25fps Min. illumination Color: 0.02Lux@F1.6 Smart IR, IR Range: 30m Built-In Mic
| Camera | |
| Image Sensor | 1/2.8′ CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day & Night | Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range | Digital WDR |
| Lens Type | Fixed |
| Focus | 4mm |
| Lens Mount | M12 |
| Aperture | F1.6, Fixed |
| FOV | Horizontal field of view: 90.4° Vertical field of view: 46.8° |
| Illuminator | |
| IR LEDs | 2 |
| IR Range | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264 |
| Video Bit Rate | 32Kbps~6Mbps |
| Audio Compression | G.711/G.711U |
| Audio Bit Rate | 8K/16K |
| Image TC-H334S | |
| Max. Resolution | 1920×1080 |
| Main Stream | PAL: 25fps (2304×1906, 1920×1080, 1280×720, 704×576, 640×480) NTSC: 24fps (2304×1906, 1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement | 3D DNR/HLC |
| OSD | 16×16, 32×32, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
| Privacy Mask | Yes, 4 regions |
| Smart Defog | Yes |
| Feature TC-H334S | |
| Alarm Trigger | IP Address Conflict |
| Early Warning(EW) | Yes |
| Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, Telnet, RTSP, CGI |
| System Compatibility | ONVIF (PROFILE S/T), SDK, P2P(Mutually exclusive with Profile G) |
| Remote Connection | 2 |
| Client | Easy7, EasyLive Plus |
| Web Version | Web6 |
| Wi-Fi | |
| Wireless Standards | IEEE802.11b/g/n |
| Frequency Range | 2.4GHz ~ 2.4835 GHz |
| Wireless Range | Up to 30m (The performance varies based on actual environment) |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | Mic in |
| Reset Button | Yes |
| On-board storage | Built-in MicroSD card slot, up to 512 GB |
| General TC-H334S | |
| Operating Conditions | -30℃～60℃, 0～95% RH |
| Power Supply | DC 12V±25% |
| Power Consumption | MAX: 12W(12V) |
| Protection | IP67 |
| Dimensions | 139mm(D)x246mm(H) |
| Weight | 1kg |
