THC-B229-M

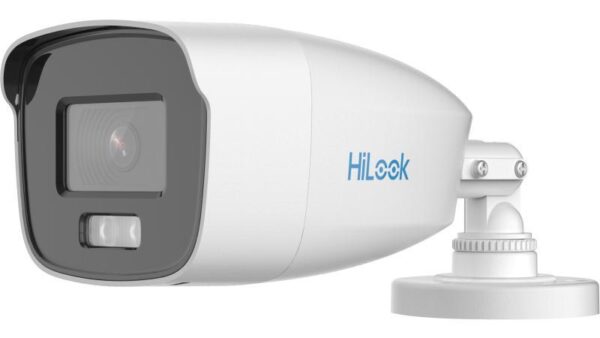

HiLook THC-B229-M
2MP ColorVu Bullet Camera
- 2MP high-resolution camera with 1920×1080 image quality
- ColorVu technology for 24/7 full-color imaging
- Fixed lens 2.8mm/3.6mm with wide viewing angle
- White light illumination up to 40m for night monitoring
- Supports TVI/AHD/CVI/CVBS switchable video output
- IP66 weatherproof metal housing for outdoor installation
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ HiLook THC-B229-M
| Features | Description |
|---|---|
| Device Type | 2 MP ColorVu Fixed Bullet Camera |
| Image Sensor | 2 MP CMOS |
| Resolution | 1920 × 1080 |
| Lens | 2.8 mm / 3.6 mm Fixed Lens |
| Night Vision | 24/7 Color Imaging with White Light up to 40 m |
| Video Output | TVI / AHD / CVI / CVBS Switchable |
| Image Enhancement | DWDR, BLC, HLC, 3D DNR |
| Protection | IP66 Weatherproof |
| Power Supply | 12V DC ±25% |
| Application | Home, Office, Retail Store, Outdoor CCTV System |
| Image Sensor | 2 MP CMOS |
|---|---|
| Maximum Resolution | 1920 × 1080 |
| Lens | 2.8 mm / 3.6 mm Fixed Focal Lens |
| Lens Mount | M12 |
| Minimum Illumination | 0.001 Lux @ F1.0, AGC ON / 0 Lux with White Light |
| Day/Night Mode | 24/7 Color Imaging |
| VIDEO & IMAGE | |
|---|---|
| Frame Rate | 1080p @ 25fps / 30fps |
| Video Output | TVI / AHD / CVI / CVBS |
| Wide Dynamic Range | Digital WDR |
| Noise Reduction | 3D DNR / 2D DNR |
| Image Enhancement | DWDR, BLC, HLC, Global |
| LENS & LIGHTING | |
|---|---|
| Focal Length | 2.8 mm / 3.6 mm |
| Horizontal FOV | 102° (2.8 mm) / 80° (3.6 mm) |
| White Light Range | Up to 40 m |
| Aperture | F1.0 |
| GENERAL | |
|---|---|
| Protection | IP66 |
| Material | Metal Housing |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max. 4W |
| Operating Temperature | -40°C to 60°C |
| Dimensions | 75.4 × 223.25 × 87.3 mm |
| Weight | Approx. 560 g |
HiLook THC-B229-M
2MP ColorVu Full-Time Color Imaging
Uses ColorVu technology with F1.0 aperture lens to deliver bright and clear color images in low-light environments.
40m White Light Night Monitoring
Built-in white light illumination provides clear full-color images at night with coverage up to 40 meters.
4-in-1 Analog Video Output
Supports TVI, AHD, CVI, and CVBS signals, allowing flexible connection with various DVR systems.
Durable Outdoor Bullet Design
Metal housing with IP66 protection provides reliable operation for indoor and outdoor surveillance applications.
Note: Product specifications may change without prior notice. Please check the latest datasheet before installation.
Important: Lens options and field of view may vary depending on the selected focal length (2.8 mm or 3.6 mm).
Datasheet
