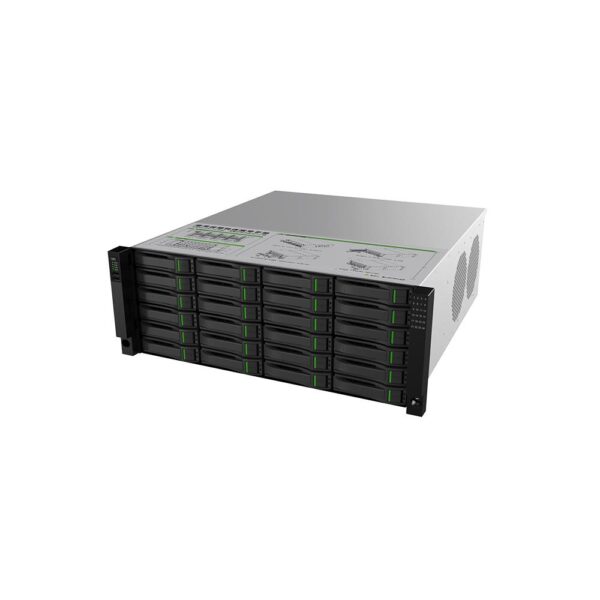

Tiandy NVR TC-R324160 Spec: E/B/N/C/V2.0

TC-R324160

Tiandy NVR TC-R324160 Spec: E/B/N/C/V2.0

Tiandy รุ่น NVR TC-R324160 Spec: E/B/N/C/V2.0

H.265 24HDD 160ch NVR

  • S+265 Compression
  • Support 160-ch input
  • Up to 12MP Resolution Recording
  • Incoming Bandwidth 1280Mbps
  • Outgoing Bandwidth 640Mbps
หมวดหมู่: , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Tiandy TC-R324160

HD Input

• S+265/H.265/H.264 video formats

• Connectable to third-party network cameras

• Up to 160 IP cameras can be connected

• Supports live view, storage and playback of connected camera at up to 12MP resolution

HD Output

• HDMI and VGA independent outputs

• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 24 SATA interfaces connectable for recording and backup on the front panel, up to 10TB for each HDD

• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 4×RJ45 self-adaptive 10/100/1000 Mbps network interfaces

Functions

• Centralized management of IP cameras, including configuration, parameter import/export, real-time information display, two-way audio, upgrade, etc.

• Connectable to smart IP cameras from Tiandy, recording, playing back and backing up of VCA alarms can be realized

• VCA detection alarm is supported

• Smart search for the selected area in the video and smart playback to make the playback efficiency

• Web6 supports plug-in free browsing and can preview videos on all browsers

Specifications:

Input
Video Input 160-ch
Max Resolution 12MP
Two-way Audio Input 1-ch, 3.5mm
Bandwidth Income 1280Mbps; Outcome 640Mbps
Output
HDMI/VGA Output HDMI: 2-ch, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
VGA:1-ch, 1920×1080, 1600×1200, 1280×1024, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
Screen Split 1/3/4/6/8/9/10/13/16/20/25/36/40/64
Audio Output 1×3.5mm
Decoding
Decoding Format S+265/H.265/H.264
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview Capability 3×12MP, 5×4K, 8×5MP, 10×4MP, 20×1080P, 40×720P, 80×4CIF
Synchronous Playback 3×12MP, 5×4K, 8×5MP, 10×4MP, 16×1080P, 16×720P
Records Encryption Yes
Hard Disk
SATA 24 SATA interfaces for 24 HDDs
Capacity Up to 10TB for each HDD
eSATA Interface 1 SATA interface
Array Type JBOD,RAID0/1/5/6/10/50/60
External Interface
Network Interface 4×RJ45 self-adaptive 10/100/1000 Mbps network interfaces
USB Interface 2×USB 2.0, 2×USB 3.0
Serial Interface 2×RS485, 1×RS232
Alarm In/Out 8/4
Reliablity
N+M Hot Standby Yes
ANR Yes
General
Web Version Web6
Language English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism (UI)
Operating Conditions 0℃～55℃, 10%~90% RH
Power Supply AC100~240V, 50/60HZ
Consumption (without HDD) ≤100W (without HDD)
Chassis 4U
Dimensions

558.2×446.2×173.8 mm (21.98×17.57×6.84 inch)
Weight (without HDD) 17Kg (37.48lb)
