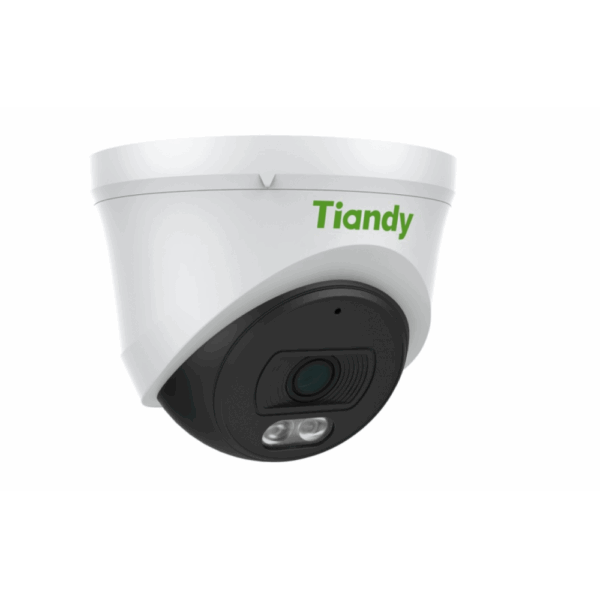

TIANDY TC-C32XN

2MP Fixed IR Turret Network Camera

  • 2MP 1/2.8″ CMOS sensor with 1920×1080 resolution at 30fps
  • 2.8mm fixed lens with 99.7° horizontal field of view
  • Smart IR illumination up to 30m for clear night-time monitoring
  • Supports S+265/H.265/H.264 compression with DWDR and 3D DNR
  • Built-in microphone, human/vehicle classification and perimeter detection
  • MicroSD up to 512GB, PoE 802.3af, IP67 and IK10 protection
หมวดหมู่: , , ป้ายกำกับ: ,

Specifications Tiandy TC-C32XN

Features Specifications
Product Type 2MP Fixed Color Maker Turret Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 × 1080 @ 30fps
Lens 2.8mm Fixed Lens, M12, F1.6
Minimum Illumination Color: 0.02 Lux @ F1.6; B/W: 0 Lux with IR
IR Distance Up to 30m
White Light Up to 15m
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Wide Dynamic Range DWDR
Intelligent Functions Tripwire, Perimeter
Audio Built-in Microphone
Storage MicroSD / microSDHC / microSDXC
Network Interface 1 × RJ45 10/100 Base-T
Power Supply DC 12V ±25% / PoE 802.3af
Protection IP67

Camera

Parameter Specification
Image Sensor 1/2.8″ CMOS
Signal System PAL / NTSC
Minimum Illumination Color: 0.02 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
Shutter Time 1s ~ 1/100000s
Day & Night IR-Cut Filter with Auto Switch (ICR)
Smart IR Yes
WDR DWDR
S/N >39dB
Angle Adjustment Pan: 0°–340°, Tilt: 0°–75°, Rotate: 0°–360°

Lens

Parameter Specification
Lens Type Fixed Focal Lens
Focal Length 2.8mm
Lens Mount M12
Aperture F1.6, Fixed
Field of View H: 104.9°, V: 56.5°, D: 119.2°
DORI Distance Detect: 38.6m, Observe: 15.3m, Recognize: 7.7m, Identify: 3.8m

Illuminator

Parameter Specification
IR LEDs 2
IR Distance Up to 30m
IR Wavelength 850nm
White LEDs 2
White Light Distance Up to 15m

Video & Image

Parameter Specification
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bit Rate 32Kbps ~ 6Mbps
Max. Resolution 1920 × 1080 @ 30fps
Main Stream PAL: 25fps (1920×1080, 1280×720, 640×480, 704×576)
NTSC: 30fps (1920×1080, 1280×720, 640×480, 704×480)
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament Lamp / Lock
ROI 8 Static Rectangular Areas
OSD 1 Region, up to 48 characters or 16 Chinese characters
Privacy Mask 4 Static Areas
Defog Yes

AI & Intelligent Functions

Parameter Specification
Video Analytics Tripwire, Perimeter
Behavior Analysis Rules 2 Rules in 1 Scene
Motion Detection Yes
Mask Alarm Yes
IP Address Conflict Yes
Linkage Method Trigger White Light, Trigger Capture

Audio

Parameter Specification
Audio Compression G.711A / G.711U / ADPCM_D
Audio Sampling Rate 8kHz / 32kHz / 48kHz
Microphone Built-in
Audio Input / Output N/A

Network & Storage

Parameter Specification
Network Interface 1 × RJ45 10/100 Base-T
Protocols HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS 1.2, QoS, IPv4, SSH, Unicast, FTP
System Compatibility ONVIF Profile S/T, SDK, CGI, Milestone, RTSP, P2P
Remote Connection ≤2
Client Easy7 VMS
Mobile Client EasyLive Plus
Web Browser IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+
Storage MicroSD / microSDHC / microSDXC, up to 512GB

Interface

Parameter Specification
Ethernet 1 × RJ45 10/100 Base-T
Built-in Microphone Yes
Audio Input / Output N/A
Alarm Input / Output N/A

Power & General

Parameter Specification
Power Supply DC 12V ±25% / PoE IEEE 802.3af
Power Consumption DC: Max. 6.5W; PoE: Max. 7W
Operating Temperature -30°C ~ 60°C
Operating Humidity ≤95% RH
Storage Temperature -30°C ~ 60°C
Storage Humidity 10% ~ 95% RH, Non-condensing
Protection IP67
Surge Protection 4000V
ESD Protection 6000V
Housing Metal + Plastic
Dimensions 117 × 117 × 96mm
Package Dimensions 140 × 140 × 120mm
Gross Weight 0.35kg

Note: Specifications are based on Tiandy TC-C32XN Spec:I3W/E/Y/2.8mm/V4.2.

Important: TC-C32XN has multiple hardware and specification versions. The specifications above refer specifically to the 2.8mm V4.2 Color Maker version.

Datasheet
