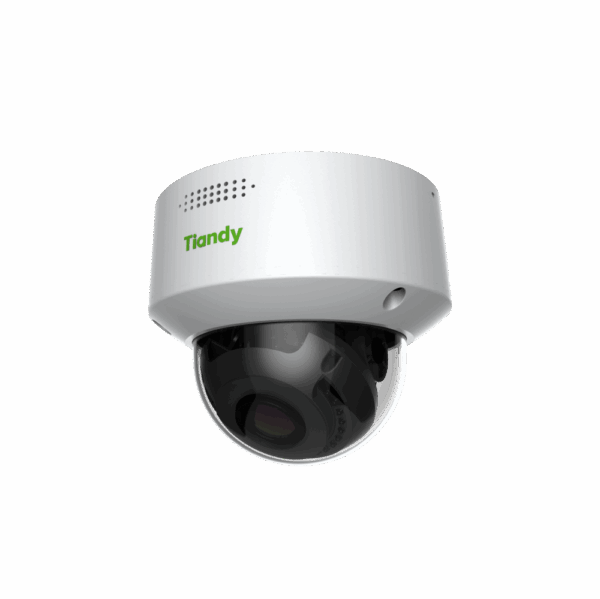

Specifications Tiandy TC-C35MS
| Features |
Description |
| Product Type |
5MP Starlight Motorized IR Dome Camera |
| Image Sensor |
1/2.8″ CMOS |
| Max. Resolution |
2592 × 1944 |
| Lens |
Motorized 2.7–13.5 mm |
| Optical Zoom |
5× |
| Minimum Illumination |
0.001 Lux @ F1.6, AGC ON |
| IR Distance |
Up to 50 m |
| WDR |
120 dB |
| Video Compression |
S+265 / H.265 / H.264 / M-JPEG |
| AI Analytics |
Human/Vehicle Classification, Face Capture and Video Analytics |
| Audio |
Built-in Microphone |
| Storage |
MicroSD up to 512 GB |
| Protection |
IP67 / IK10 / 6 kV Surge Protection |
| Camera |
| Image Sensor |
1/2.8″ CMOS |
| Signal System |
PAL / NTSC |
| Max. Resolution |
2592 × 1944 |
| Minimum Illumination |
Color: 0.001 Lux @ F1.6, AGC ON
B/W: 0 Lux with IR |
| Shutter Speed |
1 s–1/100,000 s |
| Day/Night |
IR-Cut Filter with Auto Switch (ICR) |
| Wide Dynamic Range |
120 dB |
| S/N Ratio |
>42 dB |
| Lens |
| Lens Type |
Motorized Zoom Lens |
| Focal Length |
2.7–13.5 mm |
| Optical Zoom |
5× |
| Aperture |
F1.6–F3.3 |
| Field of View |
Horizontal: 94.2°–29.3° |
| Focus Control |
Auto / Semi-Auto / Manual |
| Video |
| Video Compression |
S+265 / H.265 / H.264 / M-JPEG |
| Video Bit Rate |
32 Kbps–16 Mbps |
| Maximum Frame Rate |
2592 × 1944 @ 30 fps
1920 × 1080 @ 60 fps |
| Video Streams |
3 Streams |
| Backlight Compensation |
BLC / HLC |
| Noise Reduction |
3D DNR |
| Image Enhancement |
AGC / White Balance / Smart Defog / Corridor Mode |
| ROI |
Up to 8 Regions |
| Privacy Mask |
Up to 8 Regions |
| OSD |
Up to 8 Regions |
| Illuminator |
| IR LEDs |
18 |
| IR Distance |
Up to 50 m |
| IR Wavelength |
850 nm |
| Smart IR |
Supported |
| IR Adjustment |
Adjustable according to Zoom Level |
| AI & Video Analytics |
| Human/Vehicle Classification |
Supported |
| Face Capture |
Supported |
| Tripwire |
Supported |
| Double Tripwire |
Supported |
| Perimeter Detection |
Supported |
| Object Detection |
Object Abandon / Object Lost / Loitering / Running / Parking |
| People Analytics |
People Counting / Crowd Detection / On-Duty Detection |
| Other Analytics |
Heatmap / Video Abnormal / Audio Abnormal |
| Safety Detection |
Safety Helmet Detection |
| Audio & Alarm |
| Microphone |
Built-in Microphone |
| Audio I/O |
1 Input / 1 Output |
| Audio Compression |
G.711A / G.711U / ADPCM / AAC-LC |
| Alarm I/O |
2 Inputs / 1 Output |
| Network & Storage |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Network Protocols |
TCP/IP / HTTP / HTTPS / DHCP / DNS / DDNS / RTP / RTSP / FTP / IPv4 / IPv6 / NTP / SMTP / SNMP / QoS / SSL / 802.1X / UDP / UPnP / PPPoE / SFTP / NFS / RTMP |
| Interoperability |
ONVIF Profile S / T / G, SDK, CGI, Milestone, P2P |
| Remote Connection |
Up to 7 Users |
| Storage |
MicroSD / MicroSDHC / MicroSDXC up to 512 GB |
| Client |
Easy7 / EasyLive |
| Interface |
| Ethernet |
1 × RJ45 10/100 Mbps |
| Audio |
1 Input / 1 Output |
| Alarm |
2 Inputs / 1 Output |
| Reset |
Supported |
| MicroSD |
Up to 512 GB |
| Power & General |
| Power Supply |
DC 12V ±25% / PoE IEEE 802.3af |
| Power Consumption |
Max. 7.5 W (12V) / Max. 9 W (PoE) |
| Operating Temperature |
-35°C to +65°C |
| Operating Humidity |
0–95% RH |
| Protection |
IP67 / IK10 / Lightning Protection / Surge Protection |
| Housing |
Full Metal Housing |
| Dimensions |
Φ143 × 124 mm |
| Net Weight |
0.95 kg |
Note: Tiandy TC-C35MS is a 5MP Starlight Motorized IR Dome Camera with a 2.7–13.5 mm motorized lens, 120 dB WDR, 50 m Smart IR, Human/Vehicle Classification, Face Capture, built-in microphone and MicroSD storage up to 512 GB.
Important: The specifications above are based on TC-C35MS Spec:I5/A/E/Y/M/S/H/2.7-13.5mm/V4.0. Other TC-C35MS variants, such as the I3 version, may have different illumination, image sensor and performance specifications.
