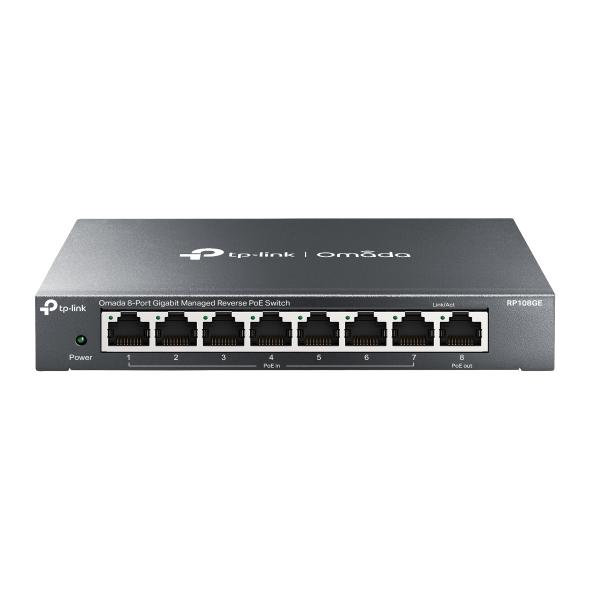

TL-RP108GE | 8-Port Gigabit Managed Reverse PoE Switch
TP-Link TL-RP108GE
8-Port Gigabit Reverse PoE Switch
- 7×Gigabit Passive PoE-In ports and 1×Gigabit Passive PoE-Out port
- 1×DC output port with selectable 5V/12V output
- Supports VLAN, QoS, Port Mirroring and Loop Prevention
- Web-based management and Easy Smart Utility
- Durable metal housing with energy-saving design
- Ideal for FTTH, ISP and Passive PoE deployments
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ TP-Link TL-RP108GE
| Features | Description |
|---|---|
| Device Type | 8-Port Gigabit Managed Reverse PoE Switch |
| Network Ports | 7 × Gigabit Passive PoE-In Ports + 1 × Gigabit Passive PoE-Out Port |
| PoE Type | Passive Reverse PoE (24V / 48V) |
| DC Output | 1 × DC Output (5V / 12V Selectable) |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| Management | Web GUI, Easy Smart Utility |
| Smart Features | VLAN, QoS, Port Mirroring, Loop Prevention |
| Application | FTTH, ISP, Reverse PoE Network Deployment |
| Power Source | Passive PoE Input or External Power Adapter |
| Device Type | Managed Reverse PoE Gigabit Switch |
|---|---|
| PoE-In Ports | 7 × 10/100/1000Mbps Passive PoE-In RJ45 |
| PoE-Out Port | 1 × 10/100/1000Mbps Passive PoE-Out RJ45 |
| DC Output | 1 × 5V / 12V DC Output Port |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| PoE FEATURES | |
|---|---|
| PoE Input | 7 × Passive PoE-In (24V / 48V) |
| PoE Output | 1 × Passive PoE-Out |
| DC Output | Selectable 5V / 12V |
| Power Source | Powered by Reverse PoE or External Adapter |
| SMART FEATURES | |
|---|---|
| VLAN | Port-Based, 802.1Q, MTU VLAN |
| QoS | 802.1p / DSCP QoS |
| Monitoring | Port Mirroring, Cable Diagnostics |
| Protection | Loop Prevention, Storm Control |
| NETWORK | |
|---|---|
| Standards | IEEE 802.3i / 802.3u / 802.3ab / 802.3x |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Management | Web GUI, Easy Smart Configuration Utility |
| GENERAL | |
|---|---|
| Housing | Metal Case |
| Cooling | Fanless Design |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Installation | Desktop |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link TL-RP108GE is an 8-port Gigabit Reverse PoE managed switch featuring 7 Passive PoE-In ports, 1 Passive PoE-Out port, and selectable 5V/12V DC output. It is ideal for FTTH, ISP, and reverse PoE network deployments.
