TL-SG1008MP | 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

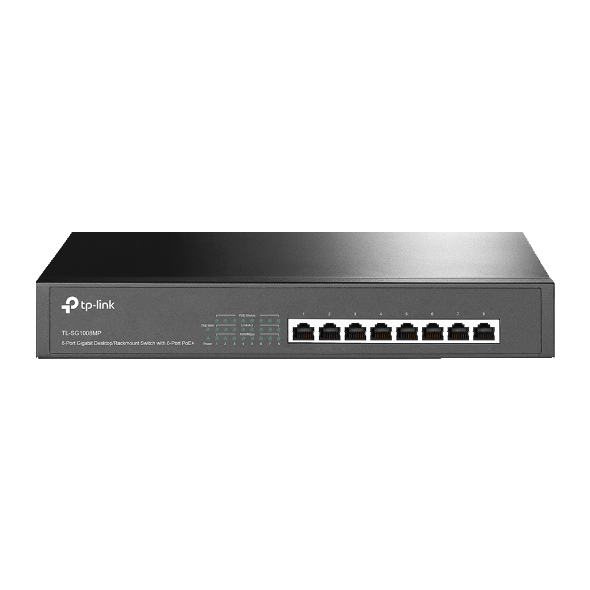

TP-Link TL-SG1008MP
8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
- 8×Gigabit RJ45 ports with 8×PoE+ ports
- Supports IEEE 802.3af/at with 153W PoE budget
- Extend Mode supports PoE transmission up to 250m
- PoE Auto Recovery and Priority Mode for stable operation
- Fanless Plug & Play design with no configuration required
- Ideal for IP cameras, access points and IP phones
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ TP-Link TL-SG1008MP
| Features | Description |
|---|---|
| Device Type | 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ |
| Network Ports | 8 × 10/100/1000Mbps RJ45 Ports |
| PoE Ports | 8 × IEEE 802.3af/at PoE+ Ports |
| PoE Budget | Up to 153W Total PoE Power Budget |
| PoE Output | Up to 30W Per PoE Port |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| Smart Features | Extend Mode, PoE Auto Recovery, Plug & Play |
| Application | IP Camera, Wireless AP, IP Phone, Business Network |
| Power Supply | 100–240V AC, 50/60Hz |
| Device Type | Unmanaged Gigabit PoE+ Switch |
|---|---|
| Network Ports | 8 × Gigabit RJ45 Ports |
| PoE Ports | 8 × IEEE 802.3af/at PoE+ Ports |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | 8 × PoE+ RJ45 Ports |
| Total PoE Budget | 153W |
| PoE Functions | Extend Mode (Up to 250m), PoE Auto Recovery |
| SMART FEATURES | |
|---|---|
| Installation | Plug & Play, No Configuration Required |
| PoE Auto Recovery | Automatically Reboots Unresponsive PoE Devices |
| Extend Mode | Data & PoE Transmission Up to 250m |
| Energy Saving | Green Ethernet Technology |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.3af / 802.3at |
| Transmission Method | Store-and-Forward |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount/Desktop Case |
| Cooling | Fanless Design |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 294 × 180 × 44 mm |
| Installation | Desktop / Rackmount |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link TL-SG1008MP is an 8-port Gigabit PoE+ switch with a 153W PoE budget, supporting Extend Mode up to 250m and PoE Auto Recovery. It is ideal for IP cameras, wireless access points, IP phones, and business surveillance networks.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
