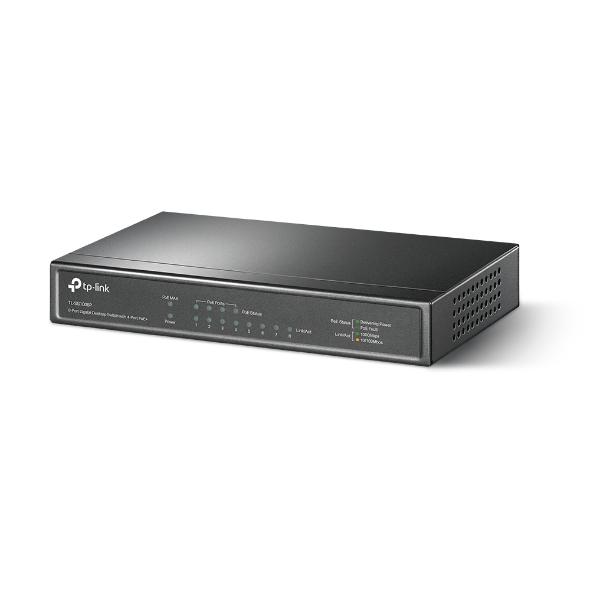

TL-SG1008P | 8-Port Gigabit Desktop PoE Switch with 4-Port PoE+
TP-Link TL-SG1008P
8-Port Gigabit Desktop Switch with 4-Port PoE+
- 8×Gigabit RJ45 ports with 4×PoE+ ports
- Supports IEEE 802.3af/at with 64W PoE budget
- Extend Mode supports PoE transmission up to 250m
- PoE Auto Recovery and 802.1p/DSCP QoS support
- Fanless Plug & Play design with no configuration required
- Ideal for IP cameras, access points and IP phones
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ TP-Link TL-SG1008P
| Features | Description |
|---|---|
| Device Type | 8-Port Gigabit Desktop Switch with 4-Port PoE+ |
| Network Ports | 8 × 10/100/1000Mbps RJ45 Ports |
| PoE Ports | 4 × IEEE 802.3af/at PoE+ Ports (Ports 1–4) |
| PoE Budget | Up to 64W Total PoE Power Budget |
| PoE Output | Up to 30W Per PoE Port |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| Smart Features | Extend Mode, PoE Auto Recovery, QoS, IGMP Snooping |
| Application | IP Camera, Wireless AP, IP Phone, Small Business |
| Power Supply | External 53.5V DC Power Adapter |
| Device Type | Unmanaged Gigabit PoE+ Switch |
|---|---|
| Network Ports | 8 × Gigabit RJ45 Ports |
| PoE Ports | 4 × IEEE 802.3af/at PoE+ Ports |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | Ports 1–4 |
| Total PoE Budget | 64W |
| PoE Functions | Extend Mode (Up to 250m), PoE Auto Recovery |
| SMART FEATURES | |
|---|---|
| QoS | 802.1p / DSCP QoS |
| IGMP Snooping | Optimized Multicast Traffic |
| Flow Control | IEEE 802.3x Flow Control |
| Installation | Plug & Play, No Configuration Required |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3x / 802.3af / 802.3at |
| Transmission Method | Store-and-Forward |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| GENERAL | |
|---|---|
| Housing | Metal Desktop Case |
| Cooling | Fanless Design |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 171 × 98 × 27 mm |
| Installation | Desktop / Wall Mount |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link TL-SG1008P is an 8-port Gigabit unmanaged switch with 4 PoE+ ports and a 64W PoE budget. It supports Extend Mode up to 250m and PoE Auto Recovery, making it ideal for IP cameras, wireless access points, and small business networks.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
