| Features |
Description |
| Device Type |
8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ |
| Network Ports |
8 × 10/100 Mbps PoE+ RJ45, 2 × Gigabit RJ45, 1 × Gigabit SFP |
| PoE Standard |
IEEE 802.3af/at |
| PoE Ports |
Ports 1–8 |
| PoE Power |
Up to 30 W per PoE Port, 65 W Total PoE Budget |
| Extend Mode |
Up to 250 m Data and Power Transmission |
| Isolation Mode |
Separates Client Traffic Between PoE Ports for Improved Security |
| PoE Auto Recovery |
Automatically Detects and Reboots Unresponsive PoE Devices |
| Switching Capacity |
7.6 Gbps |
| Packet Forwarding Rate |
5.6544 Mpps |
| Design |
Fanless Desktop Design |
| Application |
IP Cameras, Wireless Access Points, VoIP Phones, Small Business Networks and Surveillance Networks |
| Interface |
8 × 10/100 Mbps 802.3af/at PoE+ RJ45, 2 × Gigabit RJ45, 1 × Gigabit SFP |
| PoE Standard |
IEEE 802.3af/at |
| PoE Ports |
Ports 1–8 |
| PoE Power |
Up to 30 W per Port |
| Total PoE Budget |
65 W |
| Network Speed |
10/100 Mbps PoE Ports; 10/100/1000 Mbps Gigabit Ports and SFP |
| Switching Capacity |
7.6 Gbps |
| Packet Forwarding Rate |
5.6544 Mpps |
| MAC Address Table |
2K |
| Jumbo Frame |
16 KB |
| Transmission Method |
Store-and-Forward |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Extend Mode |
Ports 1–4 and Ports 1–8, Up to 250 m |
| Isolation Mode |
Ports 1–8 |
| PoE Auto Recovery |
Ports 1–8 |
| Flow Control |
IEEE 802.3x Flow Control for Full-Duplex and Backpressure for Half-Duplex |
| Fan |
Fanless |
| Power Supply |
53.5 VDC / 1.31 A External Power Adapter |
| Maximum Power Consumption |
77.32 W with 65 W PoE Load |
| Dimensions |
209 × 126 × 26 mm |
| SMART FEATURES |
| 8-Port PoE+ |
Provides Eight 10/100 Mbps PoE+ Ports Supporting IEEE 802.3af/at Devices with Up to 30 W per Port |
| 250 m Extend Mode |
Extends PoE Data and Power Transmission Distance up to 250 m for Long-Distance IP Camera and Access Point Deployments |
| PoE Auto Recovery |
Automatically Detects Unresponsive PoE-Powered Devices and Reboots Them to Maintain Stable Operation |
| Isolation Mode |
Separates Traffic Between PoE Ports to Improve Network Security and Reduce Network Interference |
| Gigabit Uplink |
Two Gigabit RJ45 Ports and One Gigabit SFP Port Provide High-Speed Uplink Connectivity |
| Fanless Design |
Silent Fanless Construction Reduces Noise and Power Consumption for Desktop and Surveillance Installations |
| GENERAL |
| Switch Type |
Unmanaged PoE+ Desktop Switch |
| PoE Ports |
8 × 10/100 Mbps PoE+ |
| Uplink Ports |
2 × Gigabit RJ45 + 1 × Gigabit SFP |
| PoE Budget |
65 W |
| Installation Method |
Desktop / Wall Mount |
| Extend Distance |
Up to 250 m |
| MAC Address Table |
2K |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90%, Non-Condensing |
| Storage Humidity |
5% to 90%, Non-Condensing |
| Certification |
FCC, CE and RoHS |
| Warranty |
3 Years |

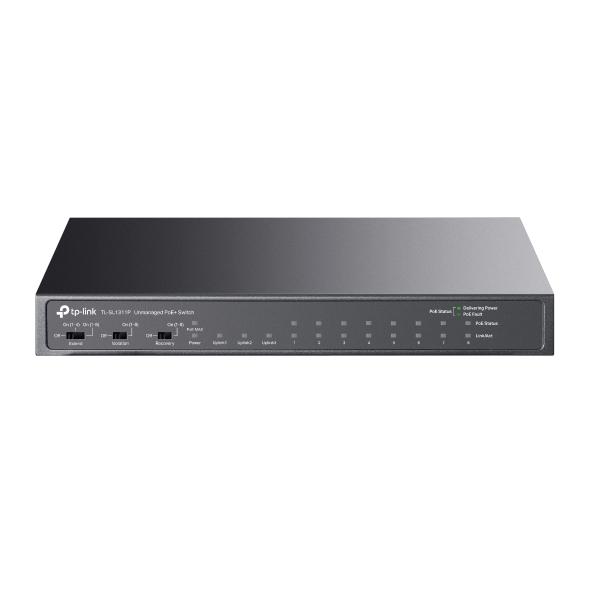

Note: The TP-Link TL-SL1311P is an 11-port desktop PoE+ switch featuring eight 10/100 Mbps PoE+ ports, two Gigabit RJ45 ports and one Gigabit SFP port. It supports IEEE 802.3af/at with up to 30 W per PoE port and a total PoE budget of 65 W, making it suitable for IP cameras, access points and other PoE-powered network devices.
Important: The TP-Link TL-SL1311P supports Extend Mode for up to 250 m data and power transmission, Isolation Mode for separating client traffic and PoE Auto Recovery for automatically rebooting unresponsive PoE devices. The switch uses a fanless design and requires no configuration, providing simple Plug-and-Play deployment.
