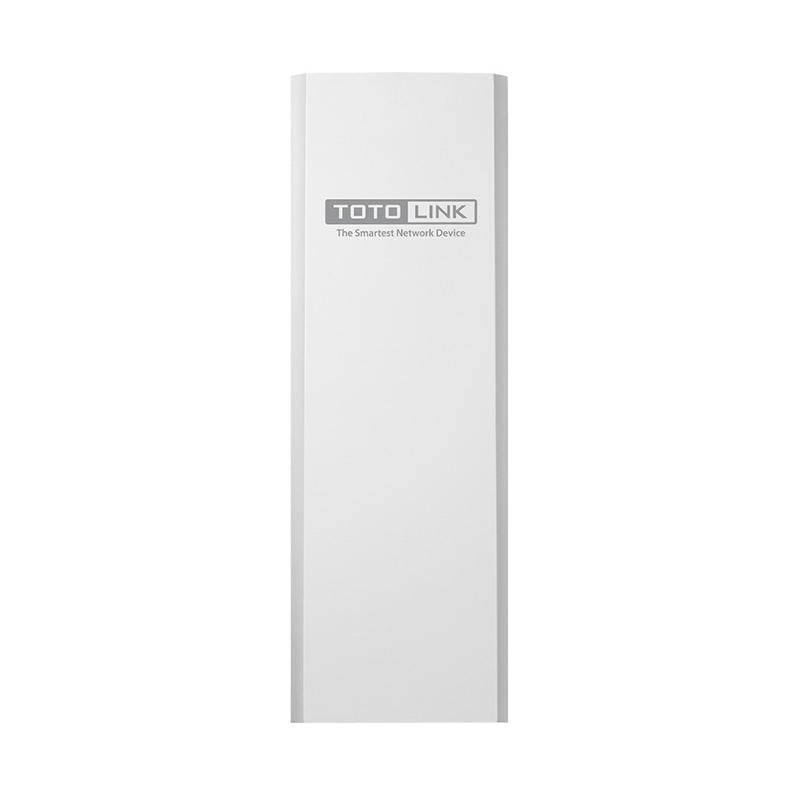

TOTOLINK CP900

Overview

TOTOLINK CP900 Wireless Outdoor CPE 25GHz มาตรฐาน ac ความเร็วสูงสุด 867Mbps กันน้ำกันฝุ่นมาตรฐาน IP65 พร้อม POE สำหรับเชื่อมต่อเครือข่ายระยะไกล รองรับการทำ Access Point , Wireless Bridge

Interface

1 *100BaseTX (Auto MDI/MDIX) LAN Port
1 *GND SMA connector

Power Supply

24V Passive PoE

Button

1 *RESET Button

Antenna

Built-in 13dBi dual polarized antennas

LED Indicators

1 *Power, 1 *LAN, 4 *Signal Strength

Button

1 *Reset Button

Dimensions（L X W X H）

9.3 x 3.1 x 2.3 in. (237.5 x 79 x 58.5mm)

Standards

IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n,

RF Frequency

5.15~5.85GHz

Data Rate

Up to 867Mbps

EIRE

< 26dBm

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensiticity

TX 802.11a/n(HT20)/n(HT40) /ac(VHT80)=  24/22/22/20dBm
RX 802.11a/n(HT20)/n(HT40)/ac=-72/-68/-65/-55dBm (MP)
802.11a/n(HT20)/n(HT40)/ac=-76/-72/-69/-59dBm  （ES）

Operation Mode

AP Mode
Repeater Mode
Client Mode
WISP Mode

Network

LAN Setup
Static DHCP Setup
WAN Setup

Wireless

Basic Setting, Security Setting, Advanced Setting, Multiple APs, MAC Authentication, WDS, WPS, Repeater

Reliability

6KV Lightning Protection
15KV ESD Protection
IP65 level dustproof and waterproof

Package Contents

CP900 Wireless CPE *1
PoE Box *1
Power Adapter *1
Ethernet Cable *1
Strips *2
Quick Installation Guide *1

Environment

Operating Temperature:0℃~50℃(32℉~122℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity:5%~90% non-condensing
