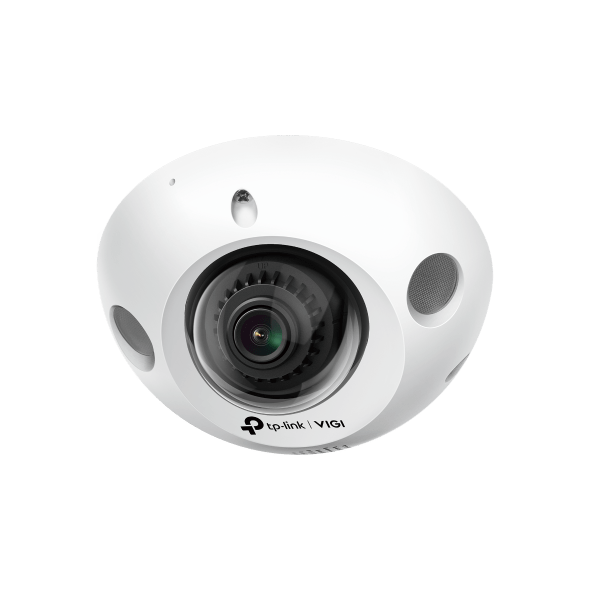

Specifications TP-Link VIGI C230I Mini

Features	Description
Device Type	3MP IR Mini Dome Network Camera
Brand / Series	TP-Link / VIGI Professional Surveillance Series
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	3 Megapixel (2304 × 1296) @ 30 fps
Lens Options	2.8 mm ultra-wide angle fixed focal lens
Minimum Illumination	Color: 0.1 Lux; 0 Lux with IR
IR Range	Up to 30m (98ft) Night Vision
Video Compression	H.265+ / H.265 / H.264+ / H.264
Protection	IK08 Vandal-Resistant Housing

CAMERA
Sensor	1/2.8″ Progressive Scan CMOS
Minimum Illumination	Color: 0.1 Lux, 0 Lux with IR
Day/Night	IR-Cut Filter with Auto/Scheduled Switch
Shutter	1/3 to 1/10000 s
WDR	Digital WDR (DWDR)
S/N Ratio	≥ 52 dB

LENS
Lens Type	Fixed Focal Lens (2.8 mm)
Aperture	F1.6
Horizontal FOV	106.9°
Vertical FOV	56.9°
Diagonal FOV	127.9°
Lens Mount	M12

VIDEO
Video Compression	H.265+ / H.265 / H.264+ / H.264
Main Stream	2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720 @ 30fps
Sub Stream	704 × 576, 640 × 480, 352 × 288, 320 × 240 @ 30fps
Bit Rate Control	CBR / VBR
ROI	1 Region
Video Stream	Dual Streams / Triple Streams support

Digital Noise Reduction	3D DNR
BLC / HLC	Supported
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, WDR, White Balance, Corridor Mode (90°/270° rotation)

SMART FEATURES
Smart Detection	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering/Exiting, Object Abandoned/Removal Detection
Basic Events	Motion Detection, Video Tampering Detection, Illegal Login Exception
Alarm Linkage	Memory Card Recording, Message Push, Audible Warning

ILLUMINATOR
IR LED Range	Up to 30m (850nm Wavelength)
Light Control	Auto / Scheduled / Always on / Always off
Smart IR	Supported

STORAGE
Edge Storage	Built-in MicroSD Card Slot, Support up to 256 GB / 512 GB (depending on firmware version)
Network Storage	NAS (NFS, SMB/CIFS), FTP, NVR Local Storage

NETWORK
Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port
ONVIF	Profile S
Network Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

AUDIO & ALARM
Audio Communication	Two-Way Audio Support
Built-in Microphone	Yes (Records within a 5m radius)
Built-in Speaker	Yes
Noise Filtering	Environment Noise Filtering

POWER & PROTECTION
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug / PoE (802.3af/at, class 0)
Maximum Power Consumption	12V DC: Max 7.5W; PoE: Max 8.5W
Protection Rating	IK08 Vandal-Resistant

PHYSICAL & ENVIRONMENT
Dimensions	114 × 114 × 58 mm
Weight	0.23 kg (Net Weight) / 0.41 kg (Gross Weight)
Operating Temperature	-30°C to 60°C (-22°F to 140°F)
Operating Humidity	95% or Less (Non-Condensing)

Note: The TP-Link VIGI C230I Mini is a compact 3MP IR mini dome network camera designed specifically for environments with limited space such as corridors, elevators, small warehouses, and convenience stores. It features an ultra-wide 2.8mm lens, two-way audio communication, smart human and vehicle classification, and an IK08 vandal-resistant enclosure.

Important: The VIGI C230I Mini delivers 3MP resolution through a compact mini dome form factor equipped with an IK08 vandal-proof rating to protect against physical tampering. It supports Smart Detection technologies including human and vehicle filtering, intrusion detection, and line-crossing to minimize false alerts. Power can be supplied via standard 12V DC or PoE (802.3af/at), and local recording is supported via a built-in MicroSD card slot (up to 256GB/512GB).
