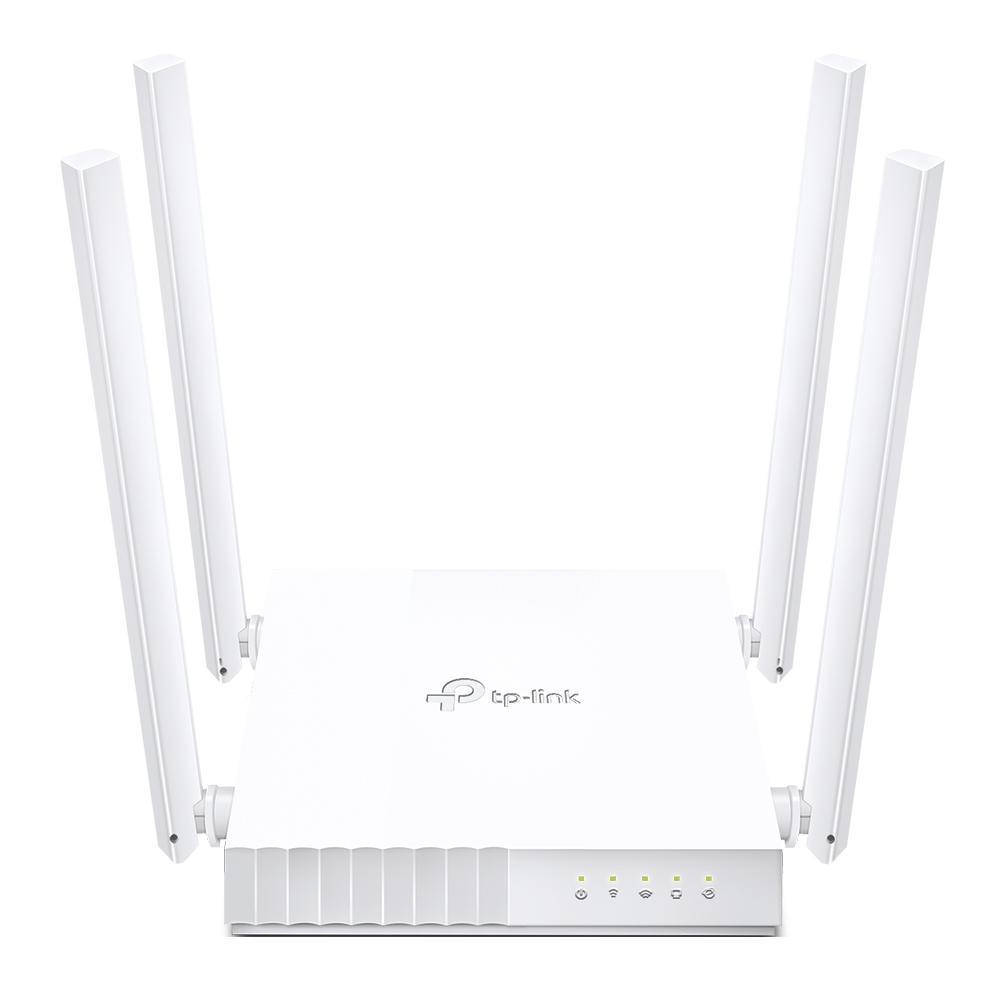

Specifications TP-Link Archer C24
| Features | Specifications |
|---|---|
Wireless |
|
| Product Type | AC750 Dual-Band Wi-Fi Router |
| Wi-Fi Standard | Wi-Fi 5, IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| 2.4GHz Speed | Up to 300Mbps |
| 5GHz Speed | Up to 433Mbps |
| Total Wireless Speed | Up to 750Mbps |
| Wi-Fi Capacity | Medium |
| Wi-Fi Coverage | Up to 2-Bedroom Houses |
Antennas |
|
| Antenna Type | 4 × Fixed Omnidirectional Antennas |
| Antenna Function | Signal-Boosting Array for Wider Coverage |
Network Interfaces |
|
| WAN Port | 1 × 10/100Mbps |
| LAN Ports | 4 × 10/100Mbps |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP and L2TP |
| IP Protocol | IPv4 / IPv6 |
| DHCP | DHCP Server, Client List and Address Reservation |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge and Tag VLAN |
Operating Modes |
|
| Router Mode | Supported |
| Access Point Mode | Supported |
| Range Extender Mode | Supported |
Wireless Features |
|
| Wireless Function | Enable/Disable Wireless Radio and WMM |
| Guest Network | 1 × 5GHz Guest Network and 1 × 2.4GHz Guest Network |
| Dual-Band | Simultaneous 2.4GHz and 5GHz Wireless Networks |
Security |
|
| Wi-Fi Encryption | WEP, WPA, WPA2 and WPA/WPA2-Enterprise (802.1X) |
| Network Security | SPI Firewall, Access Control, IP & MAC Binding and ALG |
| Parental Controls | URL Filtering and Time Controls |
| QoS | QoS by Device |
Management |
|
| Management | TP-Link Tether App and Web Management |
| DDNS | NO-IP and DynDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ and UPnP |
Hardware |
|
| Processor | Single-Core CPU |
| Button | 1 × WPS/Reset Button |
| Power Supply | 9V DC, 0.6A |
| Dimensions | 115 × 106.7 × 24.3mm |
Environmental |
|
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Temperature | -40°C to 60°C |
| Storage Humidity | 5% to 90% RH, Non-Condensing |
Certifications |
|
| Certifications | FCC, CE and RoHS |
Note: The TP-Link Archer C24 is an AC750 dual-band Wi-Fi 5 router designed for home and small network applications. It provides up to 300Mbps on 2.4GHz and 433Mbps on 5GHz. The router features four fixed omnidirectional antennas and supports Router, Access Point and Range Extender modes. It includes one 10/100Mbps WAN port and four 10/100Mbps LAN ports. Additional features include IPv4/IPv6 support, guest network, parental controls, QoS, IPTV and TP-Link Tether App management.
