| Features |
Specifications |
| Product Type |

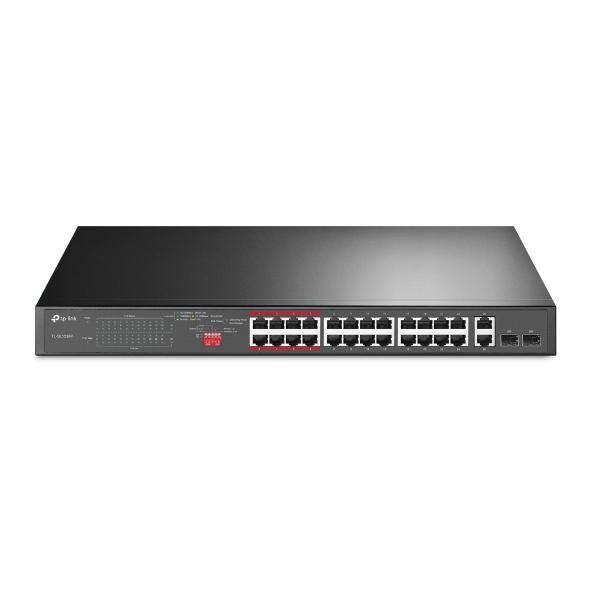

24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch |
| PoE Ports |
24 × 10/100 Mbps PoE+ RJ45 Ports |
| Uplink Ports |
2 × 10/100/1000 Mbps RJ45 Ports |
| SFP Ports |
2 × Combo Gigabit SFP Slots |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Budget |
250W total, up to 30W per PoE port |
| Switching Capacity |
8.8 Gbps |
| Packet Forwarding Rate |
6.54 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10 KB |
Layer 2 & Layer 3 Features
| Features |
Specifications |
| MAC Address Learning |
Auto-Learning and Auto-Aging |
| Flow Control |
IEEE 802.3x |
| Layer 2 Management |
Not Supported |
| Layer 3 Routing |
Not Supported |
Security & QoS
| Features |
Specifications |
| Priority Mode |
Ports 1–8 |
| Isolation Mode |
Ports 1–24 |
| Traffic Separation |
One-click client traffic separation for improved security and performance |
| QoS |
Priority Mode for sensitive applications such as video monitoring |
PoE & Advanced Functions
| Features |
Specifications |
| PoE Ports |
Ports 1–24 |
| PoE Power Budget |
250W |
| Maximum PoE Power |
Up to 30W per port |
| Extend Mode |
Up to 250m data and power transmission; port speed is reduced to 10 Mbps |
| PoE Auto Recovery |
Automatically reboots dropped or unresponsive PoE devices |
| Priority Mode |
Ports 1–8 |
| Isolation Mode |
Ports 1–24 |
| PD Detection |
Automatically detects connected PoE-powered devices |
| Intelligent Power Supply |
Automatically manages PoE power to prevent overload |
| PoE Compatibility |
IEEE 802.3af/at compliant powered devices |
Management & Configuration
| Features |
Specifications |
| Switch Type |
Unmanaged |
| Configuration |
Plug and Play; no configuration required |
| Management Interface |
Not Supported |
Hardware & General
| Features |
Specifications |
| Fan |
2 Fans |
| Power Supply |
100–240V AC, 50/60Hz |
| Dimensions |
440 × 180 × 44 mm |
| Mounting |
Rackmount |
| Operating Temperature |
0–50°C |
| Storage Temperature |
-40–70°C |
| Operating Humidity |
10–90% RH, non-condensing |
| Storage Humidity |
5–90% RH, non-condensing |
| Certification |
CE, FCC, RoHS |
| Transmission Method |
Store-and-Forward |
| Physical Security Lock |
Yes |
Note: Extend Mode supports PoE transmission up to 250 meters, but the port speed is reduced to 10 Mbps. Actual transmission distance may vary depending on cable quality.
Important: TL-SL1226P is an unmanaged PoE+ switch and does not support web-based configuration, VLAN configuration, static routing, or other advanced managed switch functions.
