| Features |
Description |
| Device Type |
3MP Outdoor / Indoor Turret Network Camera |
| Brand / Series |
TP-Link / VIGI Professional Surveillance Series |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Maximum Resolution |
3MP (2304 × 1296) @ 30 fps |
| Lens Specifications |
2.8 mm / 4 mm fixed focal lens options |
| Field of View |
(2.8mm) Horizontal FOV: 102° | Vertical FOV: 55° | Diagonal FOV: 122° |
| Minimum Illumination |
Color: 0.1 Lux; 0 Lux with IR active |
| Night Vision Range |
Smart IR Night Vision up to 30 meters (98 feet) |
| Protection Rating |
IP67 Weatherproof Housing |
| VIDEO & NETWORK PERFORMANCE |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Image Enhancements |
WDR (Wide Dynamic Range), 3D DNR, Smart IR, BLC (Backlight Compensation) |
| Smart Detection |
Motion detection, area intrusion detection, line-crossing detection, camera tampering |
| Network Protocols |
TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, RTSP, NTP, UPnP, IEEE 802.1X |
| MANAGEMENT & STORAGE |
| Management Software |
VIGI App, VIGI Security Manager, VIGI NVR, Web UI |
| Edge Storage |
Built-in MicroSD card slot supporting up to 256GB local storage |
| Audio Interface |
Built-in Microphone for real-time audio recording |
| Integration Support |
ONVIF compliance |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
12V DC ± 10% or Power over Ethernet (PoE IEEE 802.3af/at, Class 3) |
| Power Consumption |
Max 4 W (12V DC) / Max 5 W (PoE) |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Dimensions & Weight |
123 × 123 × 84 mm | Approx. 0.25 kg |
| Operating Environment |
-30°C to 60°C (-22°F to 140°F); Humidity: ≤95% (non-condensing) |

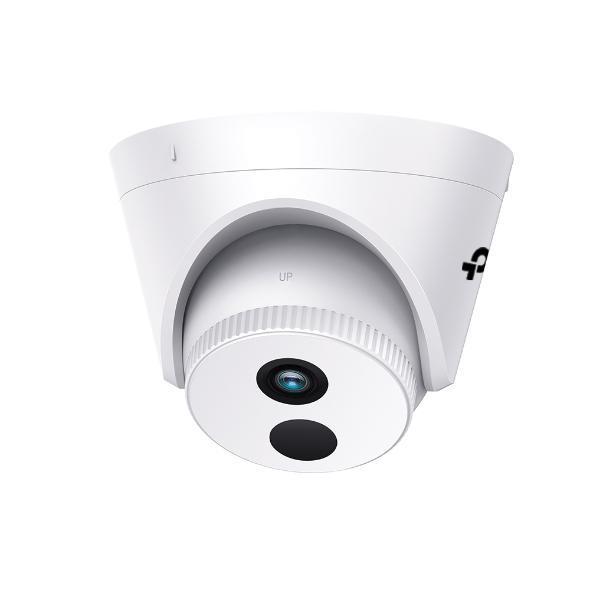

Note: The TP-Link VIGI C400HP is a 3MP turret network camera built for clear and reliable monitoring in indoor or outdoor spaces. Featuring a wide-angle lens option, smart IR night vision up to 30 meters, and advanced motion detection analytics, it provides crisp 2K video capture backed by flexible power and recording options.
Important: The VIGI C400HP offers a 3MP high-resolution sensor with a wide 2.8mm lens option (102° horizontal FOV), an IP67 weatherproof housing, and a built-in microphone. It supports MicroSD storage up to 256GB and operates on either 12V DC or PoE (802.3af) across temperatures ranging from -30°C to 60°C.
