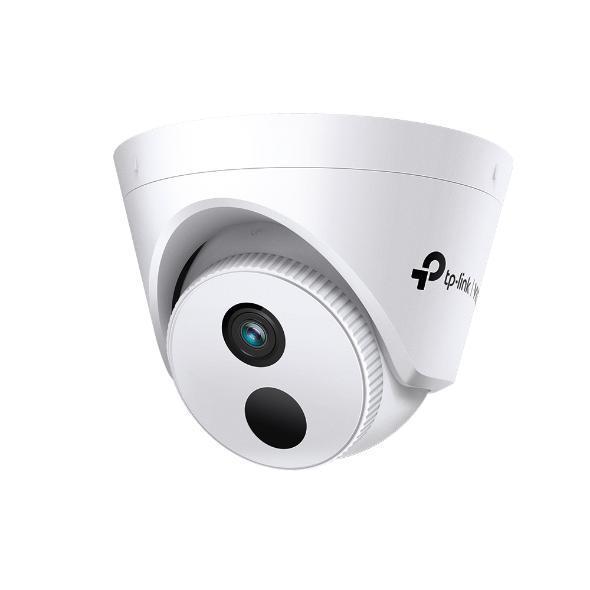

Specifications TP-Link VIGI C440I
| Features |
Description |
| Device Type |
4MP IR Turret Network Camera with AI Classification |
| Brand / Series |
TP-Link / VIGI Professional Surveillance Series |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
4MP (2560 × 1440) @ 30 fps |
| Lens Specifications |
2.8 mm / 4 mm fixed focal lens options |
| Field of View |
(2.8mm) Horizontal FOV: 88.8° | Vertical FOV: 48.9° | Diagonal FOV: 106.5°
(4mm) Horizontal FOV: 75.1° | Vertical FOV: 41.5° | Diagonal FOV: 88.7° |
| Minimum Illumination |
Color: 0.1 Lux; 0 Lux with IR active |
| Night Vision Range |
Smart IR Night Vision up to 30 meters (98 feet) |
| Form Factor / Housing |
Turret Design / Durable Plastic Enclosure |
| VIDEO & NETWORK PERFORMANCE |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Image Enhancements |
WDR (Wide Dynamic Range), 3D DNR, Smart IR, BLC, HLC (Highlight Compensation) |
| Smart Detection |
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, Motion Detection, Tampering |
| Network Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, IPv4/IPv6, SSL/TLS |
| MANAGEMENT & AUDIO INTERFACES |
| Management Software |
VIGI App, VIGI Security Manager, VIGI NVR, Web UI |
| Audio Interface |
Built-in Microphone (captures audio within a 5-meter / 16.4-ft radius) |
| Edge Storage |
Not supported (relies on NVR/VMS or cloud recording platforms) |
| Integration Support |
ONVIF Compliance (Profile S/T) |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
12V DC ± 5% (5.5mm Coaxial Power Plug) or Power over Ethernet (PoE IEEE 802.3af/at, Class 0) |
| Power Consumption |
Max 5 W (12V DC) / Max 5.5 W (PoE) |
| Network Interface |
1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Dimensions & Weight |
123 × 83 × 123 mm | Approx. 0.19 kg (Net) / 0.34 kg (Gross) |
| Operating Environment |
-30°C to 60°C (-22°F to 140°F); Humidity: ≤95% (non-condensing) |
Note: The TP-Link VIGI C440I is a high-definition 4MP turret network camera engineered with onboard AI algorithms for smart human and vehicle classification. Designed for seamless indoor or sheltered outdoor surveillance, it features smart IR night vision up to 30 meters, an integrated microphone for audio monitoring, and efficient H.265+ compression to save bandwidth and storage space.
Important: The VIGI C440I offers sharp 4MP Super-HD resolution with advanced AI target classification to dramatically reduce false motion alerts. Equipped with a built-in microphone, it supports flexible power input via 12V DC or PoE (802.3af) and operates reliably across temperatures ranging from -30°C to 60°C.
