| Features |
Description |
| Device Type |
8-Channel 1-HDD Network Video Recorder (NVR) |
| Brand / Series |
TP-Link / VIGI Professional Surveillance Series |
| Decoding Capacity |
1-ch @ 8MP (30 fps) / 2-ch @ 4MP (30 fps) / 4-ch @ 1080P (30 fps) |
| Incoming / Outgoing Bandwidth |
80 Mbps Incoming / 60 Mbps Outgoing Bandwidth |
| Video Outputs |
1 × HDMI and 1 × VGA (Supports up to 1080p simultaneous output) |
| Application |
Small to medium-scale commercial, retail, and residential security setups requiring reliable multi-channel recording and easy remote management |
| RECORDING & STORAGE |
| Recording Resolution |
8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF |
| Storage Capacity |
Equipped with 1 SATA interface supporting up to 10TB capacity for local hard drive storage |
| Compression Format |
H.265+ / H.265 / H.264+ / H.264 |
| Playback Capability |
8-Channel Simultaneous Playback |
| NETWORK & INTERFACES |
| Network Interfaces |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| USB Interfaces |
2 × USB 2.0 (Rear Panel) |
| Network Protocols |
TCP/IP, DHCP, DNS, NTP, UPnP, HTTP, HTTPS, SSL/TLS, SMTP, RTSP, SSH, 802.1x |
| Remote Access |
VIGI App, VIGI Security Manager, Web UI |
| AUDIO & ALARM |
| Audio Input / Output |
1-ch, RCA / 1-ch, RCA (Supports two-way audio communication) |
| Alarm Input / Output |
None |
| Audio Compression |
G.711u / G.711a |
| POWER & GENERAL |
| Power Supply |
12V DC, 1.5A |
| Power Consumption |
4.5 W (Without Hard Drive) / 10 W (With Hard Drive) |
| Dimensions |
246.2 × 148.2 × 45 mm (Compact Desktop Form Factor) |
| Weight |
Approx. 0.57 kg (Without Hard Drive) |
| Operating Temperature |
-10°C to 55°C (14°F to 131°F) |

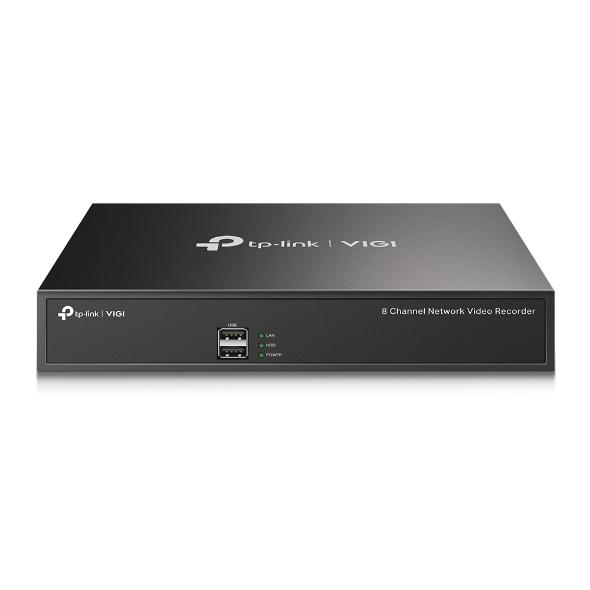

Note: The TP-Link VIGI NVR1008H is an efficient 8-channel network video recorder designed for small business and residential security applications. It features support for up to an 8MP camera resolution, 1 SATA hard drive bay (up to 10TB), H.265+ smart compression to maximize recording storage, and seamless remote monitoring via the VIGI app and management platform.
Important: The VIGI NVR1008H supports up to 8 camera channels with an 80 Mbps incoming bandwidth limit. It features a compact desktop design with 1 SATA bay supporting up to a 10TB hard drive and a single 10/100 Mbps Ethernet port. Power is supplied via an external 12V DC power adapter, and full system control is managed through the VIGI software ecosystem.
