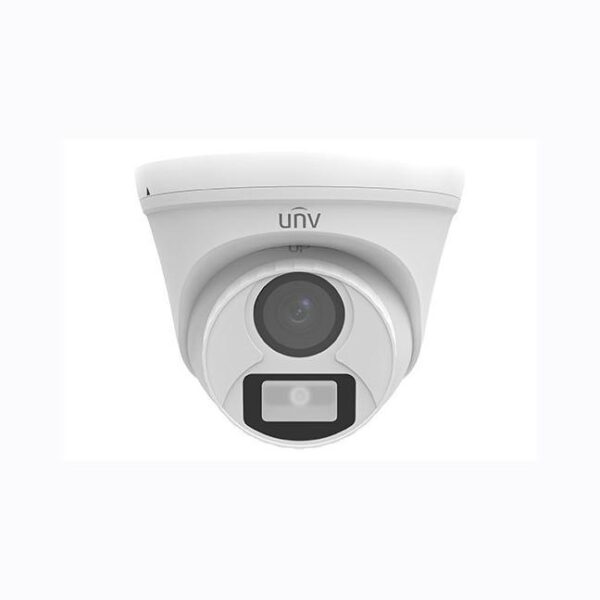

Specifications UNIVIEW UAC-T115-F28(40)-W
| Features | Description |
|---|---|
| Product Type | 5MP ColourHunter Fixed Warm Light Turret Analog Camera |
| Image Sensor | 1/2.7″ CMOS |
| Maximum Resolution | 5MP |
| Video Format | TVI / AHD / CVI / CVBS |
| Lens | 2.8mm / 4.0mm Fixed Lens |
| Illumination | White Light, up to 20m |
| Color Imaging | 24/7 Full-Color Imaging |
| Protection | IP67 |
| Camera & Lens | |
|---|---|
| Minimum Illumination | 0.01 Lux @ F1.6, AGC ON; 0 Lux with White Light |
| Lens Mount | M12 |
| 2.8mm Field of View | H 110.0° / V 57.0° / D 130.0° |
| 4.0mm Field of View | H 90.0° / V 48.0° / D 109.1° |
| Day/Night | 24/7 Full-Color Imaging |
| Shutter | PAL: 1/25s–1/50000s; NTSC: 1/30s–1/50000s |
| Flip | 180° Horizontal / 180° Vertical |
| Illuminator & Image | |
|---|---|
| Illuminator | 1 × White-Light Illuminator |
| Illumination Distance | Up to 20m |
| Illuminator Lifetime | ≥60,000 Hours |
| Exposure Mode | Global / BLC / HLC / DWDR |
| WDR | DWDR |
| Noise Reduction | 2D DNR |
| White Balance | Auto / Manual |
| Video | |
|---|---|
| 5MP Resolution | 2880 × 1620 @ 25fps |
| 5MP Resolution | 2592 × 1944 @ 20fps / 12.5fps |
| 4MP Resolution | 2560 × 1440 |
| 1080P Resolution | 1920 × 1080 |
| TVI | 5MP@20fps, 5MP@12.5fps, 4MP@30/25fps, 1080P@30/25fps |
| AHD | 5MP@20fps, 4MP@30/25fps, 1080P@30/25fps |
| CVI | 5MP@25fps, 4MP@30/25fps, 1080P@30/25fps |
| CVBS | PAL / NTSC |
| Interface | |
|---|---|
| Video Output | 1 × BNC, TVI / AHD / CVI / CVBS |
| Power Interface | 5.5mm DC Power Interface |
| OSD Menu | 11 Languages |
| OSD Configuration | Supported |
| Power & Physical | |
|---|---|
| Power Supply | DC 12V ±25% |
| Power Protection | Reverse Polarity Protection / Surge Protection |
| Power Consumption | Max. 2.4W |
| Dimensions | Φ118 × 96mm |
| Material | Graphene + Plastic |
| Weight | Approx. 205g |
| Mounting | Surface / Wall / Pole / Corner / Pendant Mount |
| Environment & Protection | |
|---|---|
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, Non-condensing |
| Surge Protection | 4KV Power / 4KV Video Output |
| Ingress Protection | IP67 |
| Certifications | CE, FCC, CB, CE-LVD, CE-RoHS, WEEE |
Note: The UNV UAC-T115-F28(40)-W is a 5MP ColourHunter fixed turret analog camera with 24/7 full-color imaging, white-light illumination up to 20m and support for TVI, AHD, CVI and CVBS video formats.
Important: The model is available with 2.8mm and 4.0mm fixed lenses. The 2.8mm version provides a wider 110° horizontal field of view, while the 4.0mm version provides a narrower 90° horizontal field of view.
