UniFi U7 Pro

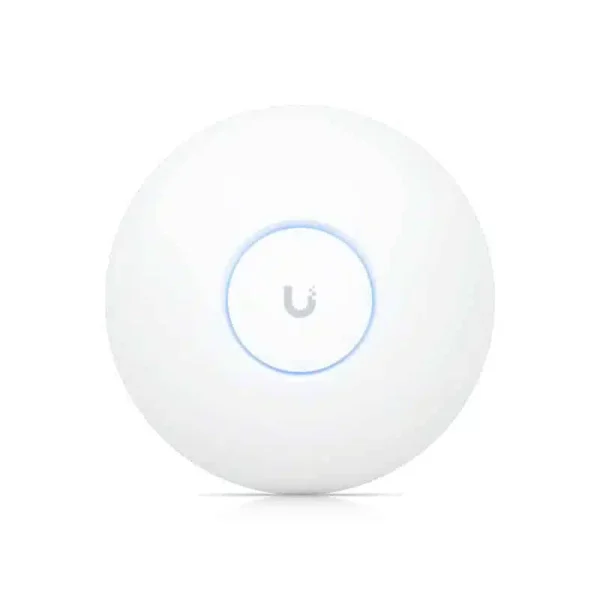

Ubiquiti UniFi U7 Pro
BE6800 Tri-Band Wi-Fi 7 Access Point
- Tri-band Wi-Fi 7 (BE6800) with speeds up to 9.3 Gbps
- Supports 2.4 GHz, 5 GHz and 6 GHz with 300+ concurrent clients
- 1× 2.5GbE RJ45 uplink with PoE+ (802.3at) power input
- Supports Multi-Link Operation (MLO), OFDMA and MU-MIMO
- Managed through the UniFi Network application
- Ceiling or wall mount design with up to 140 m² (1,500 ft²) coverage
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ UniFi U7 Pro
| Features | Description |
|---|---|
| Device Type | Tri-Band Wi-Fi 7 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Spatial Streams | 6 Streams (2×2 MIMO on 2.4 GHz / 5 GHz / 6 GHz) |
| Coverage Area | Up to 140 m² (1,500 ft²) |
| Client Capacity | 300+ Concurrent Clients |
| Ethernet Port | 1 × 2.5GbE RJ45 |
| Power Method | PoE+ (802.3at) |
| Management | UniFi Network Application |
| Mounting | Ceiling / Wall Mount |
| Operating Temperature | -30°C to 40°C |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
|---|---|
| Spatial Streams | 6 Streams |
| Maximum Data Rate | 6 GHz: 5.8 Gbps / 5 GHz: 4.3 Gbps / 2.4 GHz: 688 Mbps |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Clients | 300+ |
| Management | UniFi Network |
| NETWORK | |
|---|---|
| Ethernet Interface | 1 × 2.5GbE RJ45 |
| Power Method | PoE+ (802.3at) |
| Wireless Features | Wi-Fi 7, MU-MIMO, OFDMA, Band Steering, Fast Roaming (802.11r/k/v), Wireless Meshing |
| Security | WPA2, WPA3 Enterprise & Personal |
| GENERAL | |
|---|---|
| Power Consumption | Maximum 21 W |
| Mounting | Ceiling / Wall (Mount Included) |
| Dimensions | Ø206 × 46 mm |
| Weight | 680 g |
| Operating Temperature | -30°C to 40°C |
| Certifications | CE, FCC, IC |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official documentation before deployment.
Important: To fully utilize Wi-Fi 7 features such as 6 GHz operation and 320 MHz channels, compatible Wi-Fi 7 client devices and the latest UniFi Network software are required.
