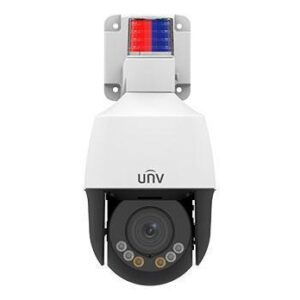

Specifications Uniview IPC675LFW-AX4DUPKC-VG

Features	Specifications
Model	IPC675LFW-AX4DUPKC-VG
Camera Type	5MP 4X ColorHunter Tri-Guard Dual-light Network PTZ Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Effective Pixels	5 Megapixels
Maximum Resolution	2880 × 1620
Frame Rate	Up to 30fps
Minimum Illumination	Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto/Manual, 1/1s ~ 1/100000s
WDR	120dB Optical WDR
S/N Ratio	>52dB

Lens & PTZ

Item	Specifications
Lens Type	Motorized Varifocal
Focal Length	2.8 ~ 12mm
Optical Zoom	4X
Aperture	F1.6
Field of View	H: 104.1° ~ 30.6°; V: 54.9° ~ 17.4°; D: 108.3° ~ 34.4°
Pan Range	360° Endless
Tilt Range	0° ~ 90°
Preset	Up to 300 Presets
PTZ Protocol	Private Protocol

Illumination

Item	Specifications
IR Distance	Up to 50m
Warm Light Distance	Up to 10m
IR Wavelength	850nm
Light Control	Auto / Manual
Dual-Light	IR and Warm Light

Video & Image

Item	Specifications
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128Kbps ~ 16Mbps
Image Enhancement	BLC, HLC, 3D DNR, Smart IR, Defog
White Balance	Auto, Indoor, Outdoor, Fluorescent Lamp, Sodium Lamp, Locked
Digital Zoom	16X
ROI	Supported
Privacy Mask	Supported
Corridor Mode	Supported

Intelligent Functions

Function	Specifications
Smart Intrusion Prevention	Cross Line, Intrusion, Enter Area and Leave Area Detection
False Alarm Filtering	Human and Vehicle Classification
People Counting	People Flow Counting and Crowd Density Monitoring
Smart Tracking	Supported
Auto Tracking	Supported
Best Snapshot	Automatic Selection of Best Snapshots
LightHunter	Supported

Audio & Active Deterrence

Item	Specifications
Built-in Microphone	Yes
Built-in Speaker	Yes
Audio Compression	G.711U, G.711A, AAC
Active Deterrence	Audio and Light Warning
Audible Alarm	Supported
Warning Light	Supported

Network & Interface

Item	Specifications
Network Interface	1 × RJ45 10/100Mbps Ethernet
Network Protocols	IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, SMTP, SNMP, SSL, TLS, UPnP, QoS, IGMP, SSH
ONVIF	Profile S, Profile G, Profile T
Web Browser	Internet Explorer, Firefox, Chrome
Remote Access	Supported
P2P	Supported

Storage & Alarm

Item	Specifications
MicroSD	Up to 512GB
Alarm Input	Supported
Alarm Output	Supported
Motion Detection	Supported
Video Loss	Supported
Network Disconnection	Supported

General

Item	Specifications
Power Supply	DC 12V ±25%, PoE IEEE 802.3af
Power Consumption	Max. 18W
Operating Temperature	-20°C ~ 60°C
Operating Humidity	≤95% RH, non-condensing
Protection	IP66
Dimensions	133 × 185 × 276mm
Weight	Approx. 0.87kg

Note: The IPC675LFW-AX4DUPKC-VG is a 5MP 4X Mini PTZ Camera featuring LightHunter, 120dB Optical WDR, Smart Intrusion Prevention, People Counting and dual-light illumination.

Important: Specifications are based on the current Uniview product information. MicroSD capacity has been updated to up to 512GB on the current product page; older datasheets may specify up to 256GB.
