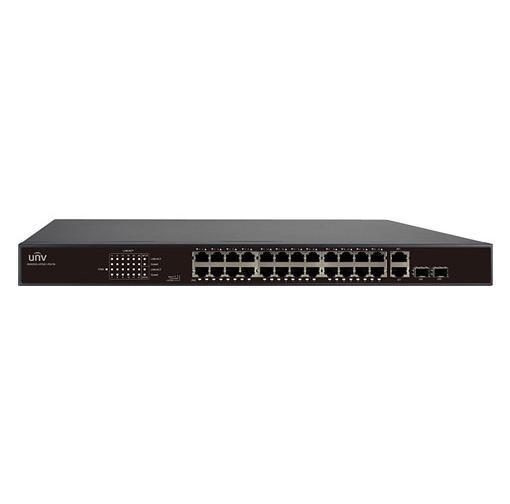

Specifications Uniview NSW2010-24T2GC-POE-IN
| Features | Specifications |
|---|---|
Switch |
|
| Product Type | Unmanaged PoE Ethernet Switch |
| Ports | 24 × 100Mbps PoE RJ45 Ports + 2 × 1000Mbps Combo Ports |
| Switching Capacity | 8.8Gbps |
| Forwarding Performance | 6.55Mpps |
| Packet Buffer | 4Mbit |
| MAC Address Table | 16K |
PoE |
|
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Ports | 24 Ports |
| Total PoE Power | Up to 370W |
| Maximum Power per Port | Up to 30W |
| PoE Mode | Mode A: 1/2+ and 3/6− |
| PoE Applications | IP Cameras, Wireless Access Points, IP Phones and Other PoE Devices |
Network Standards |
|
| Supported Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Traffic Control | Supported |
| Buffer Optimization | Supported |
Working Modes |
|
| Normal Mode | All Ports Can Communicate with Each Other |
| VLAN Mode | Downlink Ports Can Communicate Only with Uplink Ports |
| EXTEND Mode | Transmission Distance up to 250m for Surveillance Applications |
Uplink |
|
| Uplink Ports | 2 × 1000Mbps Combo Ports |
| Combo Interface | RJ45 / SFP Combo |
| Uplink Speed | Up to 1000Mbps |
General |
|
| Power Supply | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 390W |
| Cooling Fans | 2 |
| MTBF | >50,000 Hours |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90%, Non-Condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 5% to 90%, Non-Condensing |
| Dimensions | 440 × 207 × 45 mm |
| Weight | <4.2 kg |
| Housing | Metal |
| Installation | Rack Mount |
Note: The Uniview NSW2010-24T2GC-POE-IN is an unmanaged PoE Ethernet switch designed for IP surveillance and network applications. It provides 24 × 100Mbps PoE ports and 2 × 1000Mbps Combo uplink ports, with a switching capacity of 8.8Gbps and forwarding performance of 6.55Mpps. The switch supports IEEE 802.3af/at PoE with a total power budget of up to 370W and up to 30W per port. It features Normal, VLAN and EXTEND working modes, with EXTEND mode supporting transmission distances of up to 250m for surveillance devices. The all-metal housing, buffer optimization and traffic control provide a practical solution for CCTV systems, access points and other PoE network devices.
