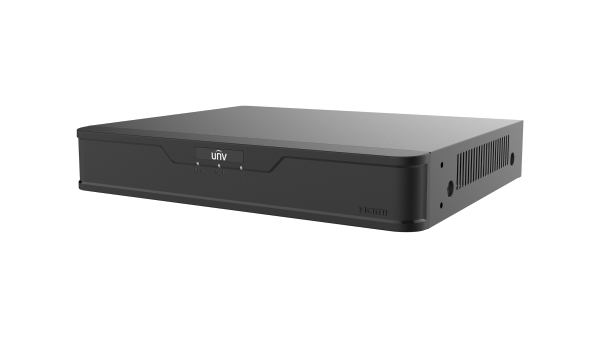

Specifications Uniview NVR301-04B-P4-IQ
| Features | Description |
|---|---|
| Product Type | 4-Channel 4-PoE 1U Network Video Recorder |
| IP Video Input | 4 Channels |
| PoE Ports | 4 × RJ45 PoE Ports |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Recording Resolution | Up to 12 Megapixels |
| Decoding Capability | 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30 |
| Hard Disk | 1 × SATA HDD |
| HDMI Output | Up to 4K (3840 × 2160) @ 30 Hz |
| VGA Output | Up to 1920 × 1080 @ 60 Hz |
| Audio | 1 × RCA Audio Input, 1 × RCA Audio Output |
| Network Bandwidth | 80 Mbps Incoming / 80 Mbps Outgoing |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power | Up to 30 W per Port, 50 W Total |
| ANR | Supported |
| Video & Decoding | |
|---|---|
| Decoding Format | Ultra 265 / H.265 / H.264 |
| Smart Off | 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30 |
| Smart On | 2 × 4K@30, 4 × 4MP@30 |
| Max. Channel Resolution | Up to 8192 × 4096 pixels per channel |
| Audio Compression | G.711A / G.711U |
| Network | |
|---|---|
| Network Interface | 1 × RJ45 Ethernet Port |
| PoE Interface | 4 × Independent RJ45 PoE Ports |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | Up to 128 Users |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| ONVIF | Profile S / Profile G / Profile T |
| RTSP | Supported |
| PoE | |
|---|---|
| PoE Ports | 4 Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Max. Power per Port | 30 W |
| Total PoE Power | 50 W |
| Plug & Play | Supported |
| Storage | |
|---|---|
| HDD Interface | 1 × SATA |
| HDD Support | 1 HDD |
| ANR | Supported for enhanced storage reliability when network is disconnected |
| Video & Audio Output | |
|---|---|
| HDMI Output | 4K (3840 × 2160) @ 30 Hz; 1920 × 1080 @ 60/50 Hz |
| VGA Output | 1920 × 1080 @ 60/50 Hz |
| Simultaneous Output | HDMI and VGA |
| Live View | 1 / 4 Screens |
| Corridor Mode | 3 / 4 Screens |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| General | |
|---|---|
| USB | 2 × USB Ports |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤ 90% RH, Non-Condensing |
| Power Consumption | ≤ 12 W without HDD |
| Dimensions | 260 × 222 × 47 mm |
| Form Factor | 1U |
| Weight | ≤ 2.7 kg without HDD |
Note: The NVR301-04B-P4-IQ is a 4-channel NVR with 4 independent PoE ports, supporting up to 12MP recording, Ultra 265 compression, 1 HDD, HDMI/VGA simultaneous output, and ANR.
Important: Total PoE power is limited to 50 W, with a maximum of 30 W per PoE port. Actual decoding capability may vary when Smart functions are enabled.
