| Features |
Description |
| Device Type |
6-Port Fast Ethernet PoE Switch |
| Network Ports |
4 × 10/100Mbps PoE Ports + 2 × 10/100Mbps RJ45 Uplink Ports |
| PoE Standard |
IEEE 802.3af/at PoE+ |
| PoE Budget |
Up to 45W Total PoE Power Budget |
| PoE Output |
Up to 30W Per PoE Port |
| Transmission Distance |
Extend PoE Transmission Distance Up to 250m |
| Switch Capacity |
1.2 Gbps |
| Smart Functions |
Port VLAN, Extend Mode, PD Alive Function |
| Design |
Metal Housing with Fanless Silent Operation |
| Application |
IP Camera, Wireless AP, IP Phone, Network Devices |
| Power Supply |
AC 100-240V |
| Device Type |
Unmanaged Fast Ethernet PoE Switch |
| PoE Ports |
4 × 10/100Mbps RJ45 PoE Ports |
| Uplink Ports |
2 × 10/100Mbps RJ45 Ports |
| SFP Port |
None |
| Switching Capacity |
1.2 Gbps |
| Packet Forwarding Rate |
0.89 Mpps |
| MAC Address Table |
2K |
| PoE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Output |
Up to 30W Per Port |
| Total PoE Budget |
Up to 45W |
| PoE Pin Assignment |
1/2(+), 3/6(-) |
| SMART FEATURES |
| Extend Mode |
Extends PoE Data and Power Transmission Up to 250m |
| Port VLAN |
Isolates PoE Ports to Improve Network Security |

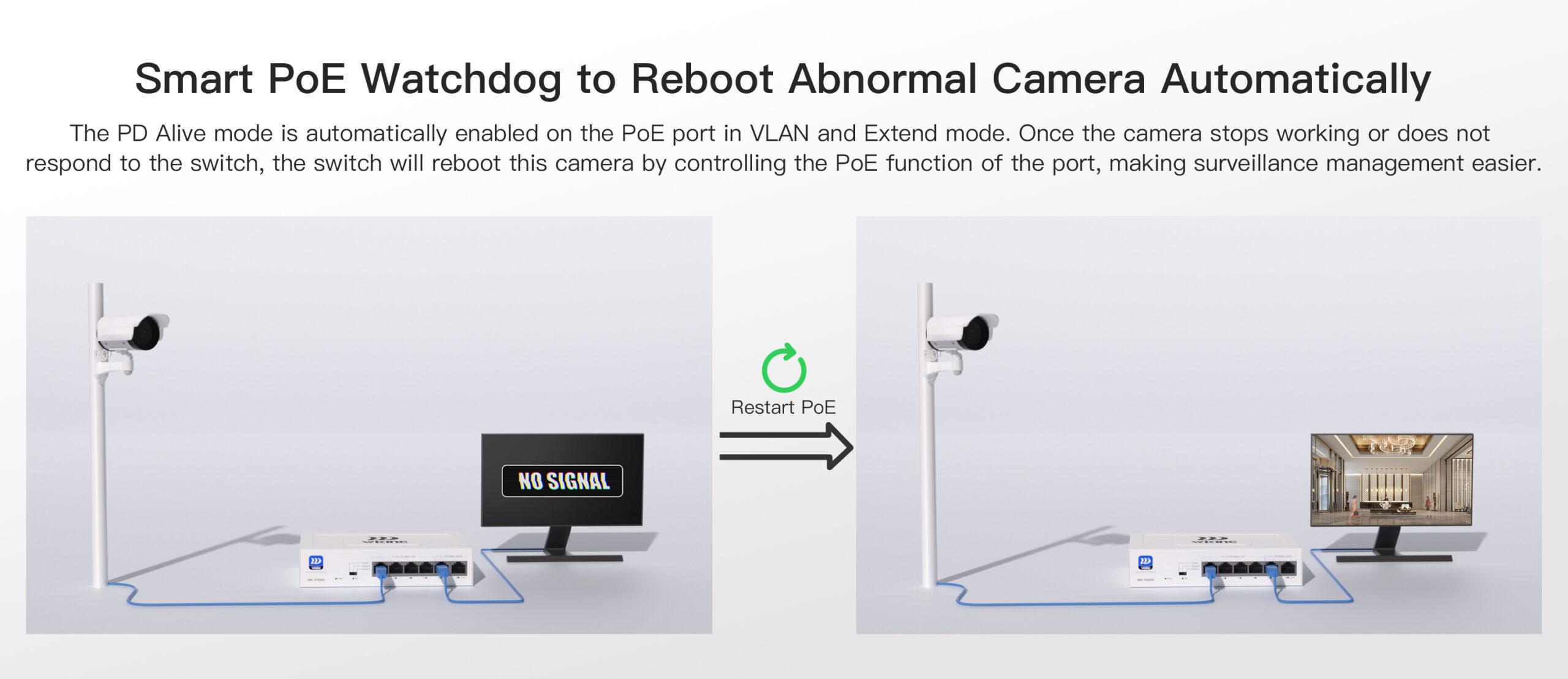

| PD Alive |
Automatically Detects and Reboots Unresponsive PoE Devices |
| Plug & Play |
No Configuration Required |
| NETWORK |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3x / IEEE 802.3af / IEEE 802.3at |
| Transmission Method |
Store and Forward |
| Jumbo Frame |
2KB |
| Flow Control |
IEEE 802.3x Full Duplex Flow Control |
| PROTECTION |
| Surge Protection |
Up to ±4kV |
| ESD Protection |
Contact ±6kV / Air ±8kV |
| Housing |
Metal Case |
| Cooling |
Fanless Passive Cooling |
| GENERAL |
| Power Supply |
AC 100-240V, 50/60Hz |
| Power Consumption |
Max. 50W |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Dimensions |
158 × 101 × 27 mm |
| Weight |
Approx. 0.5 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

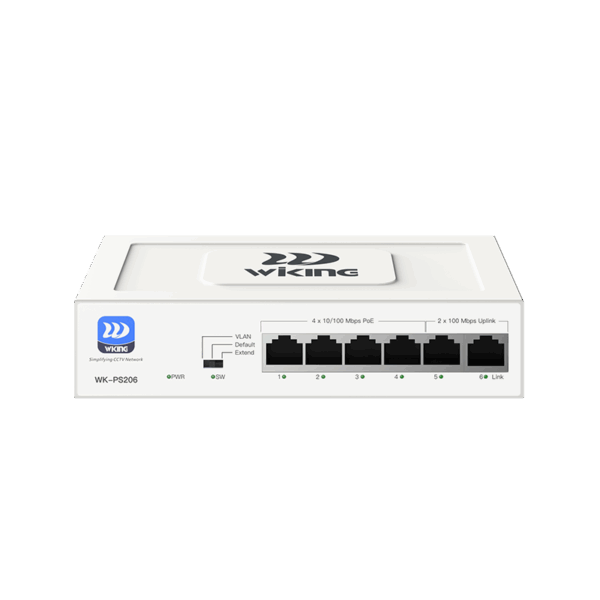

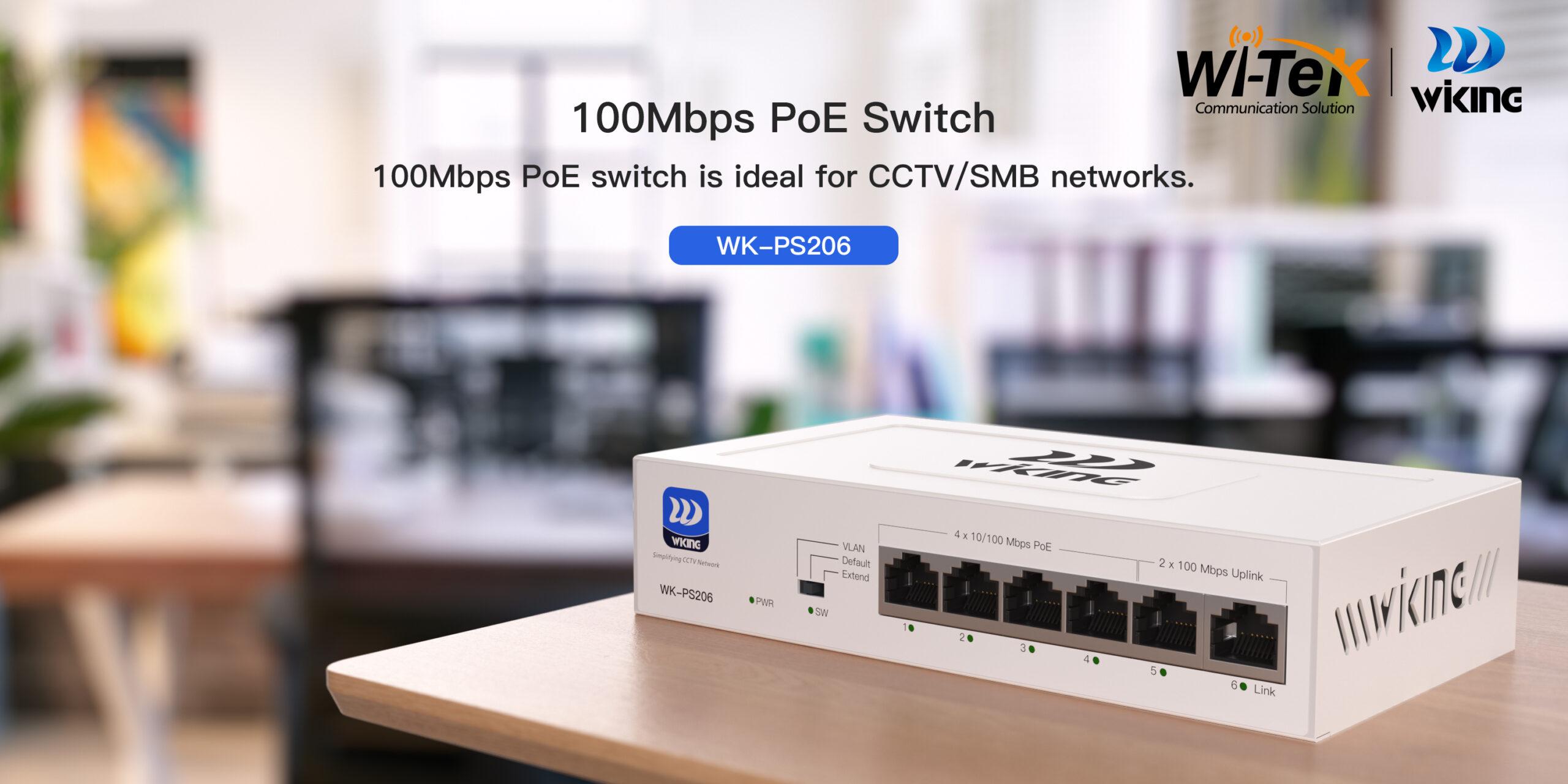

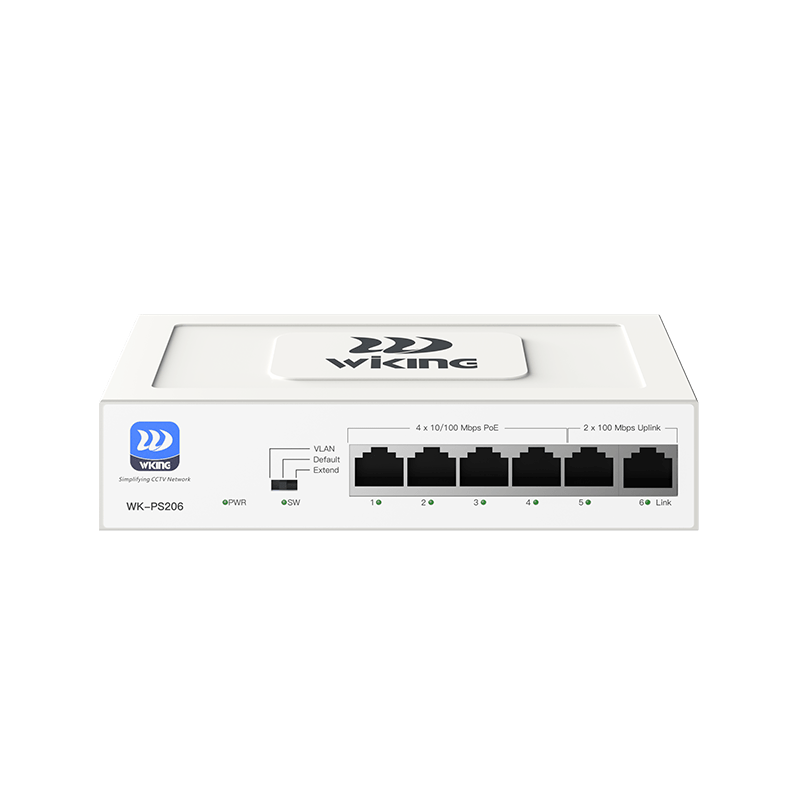

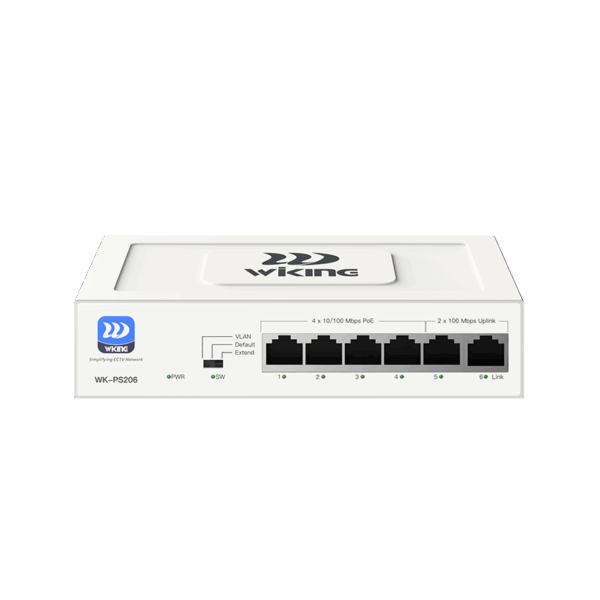

Important: The Wi-Tek WK-PS206 is a 6-port Fast Ethernet PoE switch with 4 PoE ports, 2 uplink ports, and a 45W PoE budget. It supports Extend Mode up to 250m, Port VLAN, and PD Alive, making it ideal for IP cameras and small CCTV network installations.
