Features Description
Device Type 10-Port Gigabit PoE Switch
Network Ports 8 × Gigabit PoE Ports + 2 × Gigabit RJ45 Uplink Ports
PoE Standard IEEE 802.3af/at PoE+
PoE Budget Up to 76W Total PoE Power Budget
PoE Output Up to 30W Per PoE Port
Transmission Distance Extend PoE Transmission Distance Up to 250m
Switch Capacity 20 Gbps
Smart Functions Port VLAN, Extend Mode, PD Alive Function
Design Metal Housing with Fanless Silent Operation
Application IP Camera, Wireless AP, IP Phone, Network Devices
Power Supply AC 100-240V
Device Type
Unmanaged Gigabit PoE Ethernet Switch
PoE Ports
8 × 10/100/1000Mbps RJ45 PoE Ports
Uplink Ports
2 × 10/100/1000Mbps RJ45 Ports
SFP Port
None
Switching Capacity
20 Gbps
Packet Forwarding Rate
14.88 Mpps
MAC Address Table
2K
PoE FEATURES
PoE Standard
IEEE 802.3af / IEEE 802.3at
PoE Output
Up to 30W Per Port
Total PoE Budget
Up to 76W
PoE Pin Assignment
1/2(+), 3/6(-)
SMART FEATURES
Extend Mode
Extends PoE Data and Power Transmission Up to 250m
Port VLAN
Isolates PoE Ports to Improve Network Security

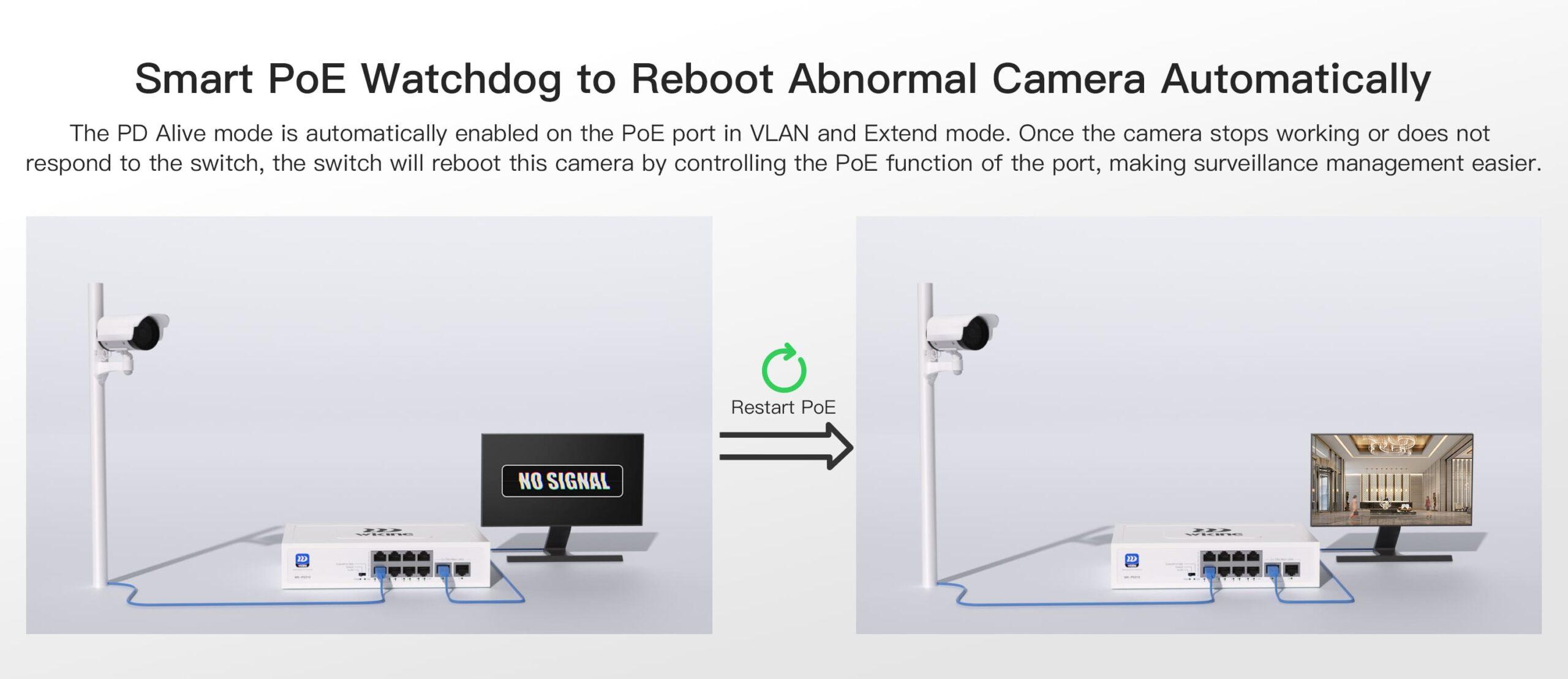

PD Alive
Automatically Detects and Reboots Unresponsive PoE Devices
Plug & Play
No Configuration Required
NETWORK
Network Standard
IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab / IEEE 802.3x / IEEE 802.3af / IEEE 802.3at
Transmission Method
Store and Forward
Jumbo Frame
9KB
Flow Control
IEEE 802.3x Full Duplex Flow Control
PROTECTION
Surge Protection
Up to ±4kV
ESD Protection
Contact ±6kV / Air ±8kV
Housing
Metal Case
Cooling
Fanless Passive Cooling
GENERAL
Power Supply
AC 100-240V, 50/60Hz
Power Consumption
Max. 90W
Operating Temperature
0°C to 40°C
Operating Humidity
10% to 90% RH (Non-Condensing)
Dimensions
200 × 118 × 44 mm
Weight
Approx. 1.5 kg
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
