| Features |
Description |
| Product Type |

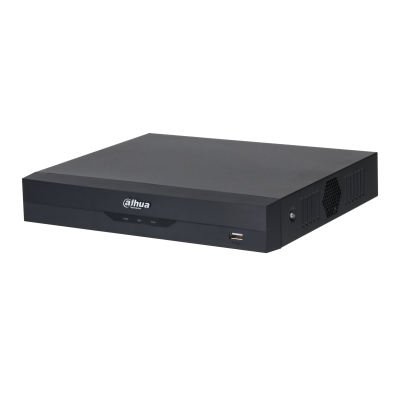

4CH Penta-brid 4K Value/5MP Compact 1U WizSense Digital Video Recorder |
| Analog Video Input |
4 BNC, HDCVI/AHD/TVI/CVBS Auto-detect |
| IP Video Input |
Up to 8 channels, up to 8MP per channel |
| Storage |
1TB SSD pre-installed |
| Compression |
H.265+/H.265, AI Coding |
| AI Functions |
QuickPick 2.0, Face Recognition, Perimeter Protection, EPTZ, Privacy Protection, SMD Plus |
| Video & Recording |
| Analog Recording |
Up to 4K@15fps / 5MP@25fps encoding capability |
| HDCVI |
4K@25/30fps, 6MP@20fps, 5MP@20/25fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30/50/60fps |
| TVI |
Up to 4K@15fps, 5MP@20fps, 4MP@25/30fps |
| AHD |
Up to 4K@15fps, 5MP@20fps, 4MP@25/30fps |
| Incoming Bandwidth |
64 Mbps |
| Video Compression |
AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| AI & Intelligent Functions |
| QuickPick 2.0 |
2 channels for efficient target search |
| Face Recognition |
2 channels, up to 20,000 face images in 10 databases |
| Face Detection |
2 channels, up to 8 face images/s per channel |
| Perimeter Protection |
Up to 4 channels, supporting tripwire and intrusion detection |
| SMD Plus |
4 channels with human and motor vehicle filtering |
| AI Coding |
4 channels |
| EPTZ |
1 channel |
| Privacy Protection |
1 channel |
| Display & Playback |
| HDMI Output |
1 port |
| VGA Output |
1 port |
| Display Resolution |
HDMI up to 3840 × 2160 |
| Multi-screen Display |
1/4/8/9 split display depending on input configuration |
| Audio |
| Audio Input |
1 RCA + 4 BNC coaxial audio |
| Audio Output |
1 RCA |
| Two-way Talk |
Yes, sharing audio input with the first channel |
| Storage |
| Storage Device |
1 × 1TB SSD pre-installed |
| SSD Capacity |
Replaceable with 256GB or 512GB SSD |
| Default Recording |
Approximately 18 days under default settings |
| Network & Interface |
| Network Port |
1 × RJ-45 10/100 Mbps Ethernet |
| RS-485 |
1 port for PTZ control |
| USB |
2 × USB 2.0, 1 front and 1 rear |
| Operating Interface |
Web and Local GUI |
| Power & Physical |
| Power Supply |
12 VDC, 2 A |
| Power Consumption |
<7 W with SSD |
| Dimensions |
260.0 × 237.9 × 47.6 mm (W × D × H) |
| Net Weight |
0.96 kg |
| Gross Weight |
1.37 kg |
| Installation |
Rack or Desktop |
| Environment |
| Operating Temperature |
−10°C to +55°C |
| Storage Temperature |
−20°C to +60°C |
| Operating Humidity |
≤93% RH |
| Certifications |
CE, FCC |
Note: The XVR5104HS-4KL-I3(1T) is the 1TB SSD version of the 4K Value/5MP WizSense XVR series and supports both analog and IP cameras.
Important: Specifications are based on Dahua Hardware Version 3.0 documentation. Actual performance may vary depending on camera resolution, encoding settings, storage conditions, and firmware version.
