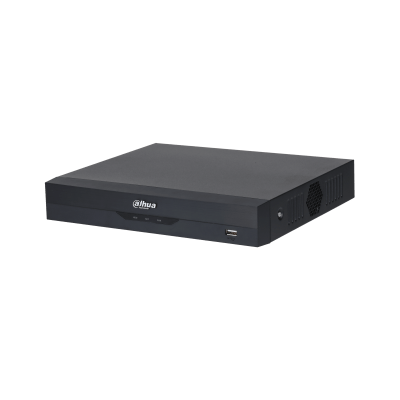

Dahua รุ่น XVR5108HS-I2

8 Channel Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder

  • การบีบอัดวิดีโอสตรีมคู่ H.265+/H.265
  • รองรับอินพุตวิดีโอ HDCVI/AHD/TVI/CVBS/IP
  • อินพุตกล้อง IP สูงสุด 12 ช่องแต่ละช่องสูงสุด 6MP
  • แบนด์วิดธ์ขาเข้าสูงสุด 64 Mbps
  • สตรีมวิดีโอสูงสุด 2 ช่อง (ช่องสัญญาณอนาล็อก) การป้องกันเขตปริมณฑล
  • สตรีมวิดีโอสูงสุด 8 ช่อง (ช่องสัญญาณอนาล็อก) SMD Plus
  • สตรีมวิดีโอสูงสุด 2 ช่อง (ช่องอนาล็อก) การจดจำใบหน้าของมนุษย์
  • ฟังก์ชัน IoT และ POS
หมวดหมู่: , , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
System
Main Processor Embedded Processor
Operating System Embedded LINUX
Perimeter Protection
Performance 2 channels, 10 IVS for each channel
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (Human, Vehicle)
Face Recognition
Performance Max 8 face pictures/sec processing
2 channels video stream face recognition, only support analog camera
Stranger Mode Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application Each database can be applied to video channels independently .
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance 8 channels
AI Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 8 channels, BNC
HDCVI Camera Input 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input PAL/NTSC
IP Camera Input 8+4 channels, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/

D1/CIF (1fps–25/30fps)

Sub stream: D1/CIF (1fps–15fps)
Bit Rate 32 Kbps–6144 Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression G.711A, G.711U, PCM
Audio Sample Rate 8 KHz, 16 bit Per Channel
Audio Bit Rate 64 Kbps Per Channel
Display
Interface 1 HDMI ,1 VGA
Resolution 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (100 MB)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 1/4/9

It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 10TB capacity
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (USB 2.0)
RS485 1 Port, for PTZ Control
RS232 N/A
Electrical
Power Supply DC 12V/2A
Power Consumption

(Without HDD)

 <7W
Construction
Dimensions Compact 1U, 260 mm × 238 mm × 48 mm

(10.24” × 9.34” × 1.87”)
Net Weight

(without HDD)

 1.1 kg (2.5 lb)
Gross Weight 1.5 kg (3.3 lb)
Installation Desktop installation
Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
