Specifications Dahua XVR5816S-X
| Features | Specifications |
|---|---|
Recorder |
|
| Product Type | 16-Channel Penta-brid 1080P 2U Digital Video Recorder |
| Operating System | Embedded Linux |
| Video Compression | H.265+ / H.265 |
| Video Input | HDCVI / AHD / TVI / CVBS / IP |
Video Input |
|
| Analog Video Input | 16 × BNC |
| IP Camera Input | Up to 12 Channels, Expandable to 24 Channels |
| IP Camera Resolution | Up to 6MP per Channel |
| Incoming Bandwidth | Up to 48Mbps / 96Mbps |
| Analog Recording | Up to 1080P |
Recording |
|
| Recording Resolution | Up to 1080P |
| Record Mode | Manual, Schedule, Motion Detection, Alarm and Stop |
| Bit Rate | 32Kbps–6144Kbps per Channel |
| Pre-record | 1–30 Seconds |
| Post-record | 10–300 Seconds |
AI & Smart Features |
|
| Perimeter Protection | Up to 4 Channels / 8 Channels |
| Tripwire | Supported |
| Intrusion Detection | Supported |
| Object Detection | Human and Vehicle Classification |
| Object Abandoned Detection | Supported on First 2 Channels |
| Object Missing Detection | Supported on First 2 Channels |
| Face Recognition | Supported |
| AI Search | Search by Human and Vehicle Classification |
Display |
|
| HDMI Output | 2 × HDMI |
| VGA Output | 1 × VGA |
| HDMI2 Spot Output | Supported |
| Multi-screen Display | 1 / 4 / 8 / 9 / 16 |
Audio |
|
| Audio Input | 16 × BNC |
| Audio Output | 1 × BNC |
| Two-way Talk | Supported |
| Audio Compression | G.711A / G.711U / PCM |
Network |
|
| Network Interface | 1 × RJ-45 10/100/1000Mbps |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P and PPPoE |
| ONVIF | Supported |
| Maximum Users | 128 Users |
| Mobile Support | iPhone, iPad and Android |
Storage |
|
| HDD Interface | 8 × SATA |
| Maximum HDD Capacity | Up to 10TB per HDD |
| eSATA | 1 × eSATA |
| USB | 2 × USB 2.0 |
| Backup | USB Device and Network |
Alarm & Control |
|
| Alarm Input | 16 Channels |
| Alarm Output | 6 Channels |
| RS485 | 1 × RS485 for PTZ Control |
| RS232 | 1 × RS232 for PC Communication and Keyboard |
General |
|
| Power Supply | 100–240V AC, 50/60Hz |
| Power Consumption | <15W without HDD |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% to 90% RH |
| Dimensions | 440 × 463 × 95mm |
| Weight | Approx. 6.7kg without HDD |
| Installation | Desktop or Rack Mount |

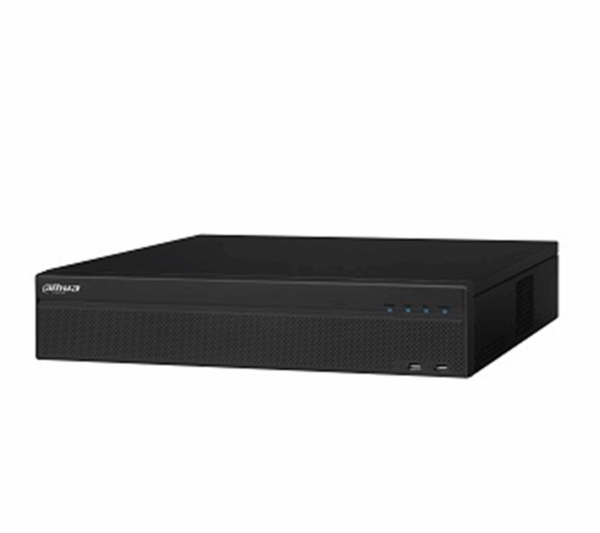

Note: The Dahua XVR5816S-X is a 16-channel Penta-brid 1080P 2U Digital Video Recorder supporting HDCVI, AHD, TVI, CVBS and IP cameras. It supports up to 12 IP camera inputs with expansion up to 24 channels, depending on configuration, and IP cameras up to 6MP per channel. The recorder supports H.265+ and H.265 video compression, perimeter protection, tripwire, intrusion detection and human/vehicle classification. It provides 8 SATA interfaces for HDD storage, dual HDMI outputs including HDMI2 spot output, VGA output, 16 alarm inputs, 6 alarm outputs and Gigabit network.
