| Features |
Description |
| Device Type |
AX1800 Dual Band Wi-Fi 6 XPON VoIP Router |
| XPON Support |
Supports GPON and EPON Dual Mode |
| Wireless Speed |
574Mbps (2.4GHz) + 1201Mbps (5GHz) |
| Wi-Fi Standard |
IEEE 802.11ax (Wi-Fi 6) |
| Network Ports |
1 × Gigabit WAN/LAN + 3 × Gigabit LAN Ports + 1 × FXS Phone Port |
| Voice Features |
SIP VoIP, Caller ID, Call Waiting, Call Forwarding |
| Antennas |
4 × External High-Gain Antennas |
| Mesh Support |
EasyMesh Compatible |
| Management |
Aginet App, Web UI, OMCI, TR-069, TR-369 |
| Power Supply |
12V DC / 1.5A |
| Device Type |
AX1800 XPON VoIP Router |
| XPON Port |
1 × SC/APC GPON/EPON Port |
| WAN/LAN Port |
1 × 10/100/1000Mbps RJ45 WAN/LAN |
| LAN Ports |
3 × 10/100/1000Mbps RJ45 |
| Phone Port |
1 × FXS (RJ11) |
| USB Port |
1 × USB 2.0 |
| Antennas |
4 × External Antennas |
| WIRELESS FEATURES |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/a (5GHz), IEEE 802.11ax/n/b/g (2.4GHz) |
| Wireless Speed |
1201Mbps (5GHz) + 574Mbps (2.4GHz) |
| Wireless Security |
WPA/WPA2/WPA3 |
| Advanced Features |
OFDMA, MU-MIMO, Beamforming, EasyMesh |
| VOICE FEATURES |
| VoIP Protocol |
SIP v1 / v2 |
| Voice Services |
Caller ID, Call Waiting, Call Forwarding, 3-Way Conference |
| Codec |
G.711, G.722, G.729, G.726 |
| Management |
TR-104 Remote VoIP Provisioning |
| NETWORK |
| Network Protocol |
IPv4 / IPv6 |
| IPTV |
IGMP Proxy, Snooping, Bridge, Tag VLAN |
| VPN |
PPTP, IPSec, OpenVPN Server |
| Management |
Web GUI, Aginet App, OMCI, TR-069, TR-369 |
| GENERAL |
| Power Supply |
12V DC / 1.5A |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Installation |
Desktop |
| Dimensions |
Compact Desktop Design |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

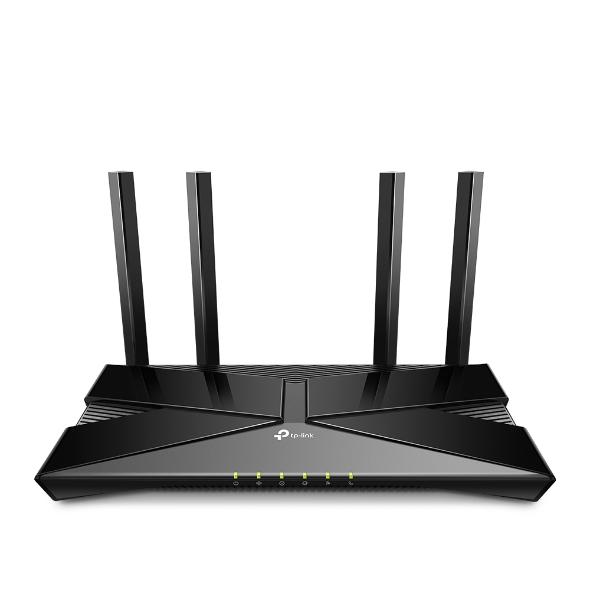

Important: The TP-Link XX230v is an AX1800 Wi-Fi 6 XPON router with built-in VoIP, supporting GPON/EPON dual mode, EasyMesh, Gigabit Ethernet, and an FXS phone port. It provides high-speed fiber connectivity and reliable voice services for homes and small businesses.
