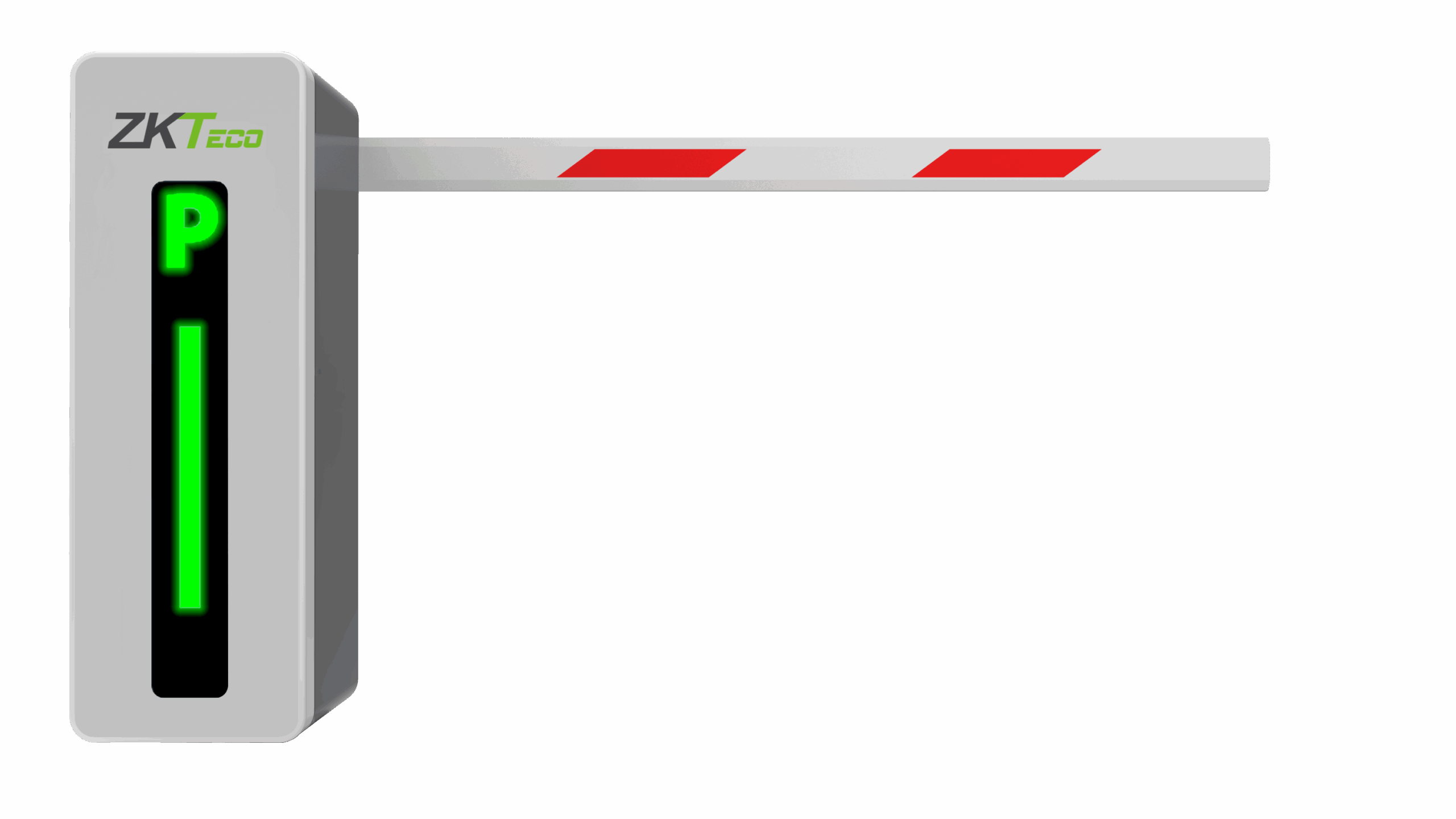

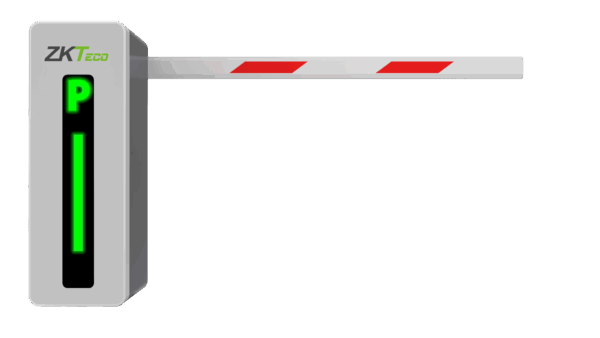

Specifications ZKTeco BGM500
| Features | Specifications |
|---|---|
General |
|
| Product Type | Automatic Barrier Gate |
| Series | BGM500 Series |
| Application | Vehicle Access and Parking Control |
| Control System | Intelligent ZKBarrier Mainboard |
| Chassis Indicator | Built-in LED Indicator |
Barrier Arm |
|
| Barrier Arm Type | Straight Boom, Telescopic Boom, Straight Boom with LED, Folding Boom and Fence Boom |
| Barrier Arm Length | 3 m, 4.5 m or 6 m, depending on model |
| BGM530 L/R | 3 m Straight Boom |
| BGM545 L/R | 4.5 m Telescopic Boom |
| BGM560 L/R | 6 m Telescopic Boom |
| BGM545 L/R-LED | 4.5 m Straight Boom with LED |
| BGM545 L/R-90 | 4.5 m Folding Boom |
| BGM545 L/R-F | 4.5 m Fence Boom |
Operating Performance |
|
| Operating Speed | 1.5 s, 2.5 s, 3 s or 5 s, depending on model |
| BGM530 L/R Speed | 1.5 s |
| BGM545 L/R Speed | 2.5 s |
| BGM560 L/R Speed | 5 s |
| BGM545 L/R-LED Speed | 2.5 s |
| BGM545 L/R-90 Speed | 3 s |
| BGM545 L/R-F Speed | 3 s |
| Remote Control Distance | ≥30 m |
| MCBF | Up to 3 Million Cycles |
Motor & Electrical |
|
| Motor Type | DC 24V Brushless Motor |
| Output Power | 160 W |
| Output Current | 10 A |
| Operating Voltage | DC 24 V |
| Power Supply | AC 220V/110V, 50 Hz to 60 Hz |
Communication & Control |
|
| Communication | RS-485 |
| Optional Wireless Communication | Wi-Fi / Bluetooth |
| Remote Control | Supported |
| Emergency Opening | Manual |
| Direction | Left / Right Reversible |
Construction |
|
| Chassis Material | SPCC Steel |
| Boom Material | Aluminum Alloy |
| Chassis LED Indicator | Supported |
| Anti-Collision | Optional |
Environment |
|
| Operating Temperature | -30°C to 75°C |
| Protection Level | IP54 |
| Suitable Environment | Indoor and Outdoor Parking Areas |
Physical |
|
| Chassis Dimensions | 350 × 302 × 1020 mm |
| Net Weight | 43 kg, excluding barrier arm |
Applications |
|
| Application | Parking Barrier and Vehicle Access Control |
| Suitable Locations | Schools, Residential Communities, Factories, Office Buildings, Hotels, Hospitals and Parking Areas |
| Traffic Intensity | Medium Traffic Intensity |
| Parking Management | Compatible with Vehicle Access and Parking Management Systems |
Note: The ZKTeco BGM500 is an automatic barrier gate series designed for vehicle access and parking control. It features a 24V DC brushless motor, integrated transmission mechanism and intelligent ZKBarrier mainboard. The series supports multiple barrier arm configurations, including straight, telescopic, LED, folding and fence boom types with lengths from 3 to 6 meters depending on the model. Operating speeds range from 1.5 to 5 seconds according to the selected barrier arm configuration. The BGM500 provides a remote control distance of at least 30 meters, a built-in LED chassis indicator and IP54 protection. It is suitable for schools, residential communities, factories, office buildings, hotels, hospitals and other parking areas requiring controlled vehicle access.
