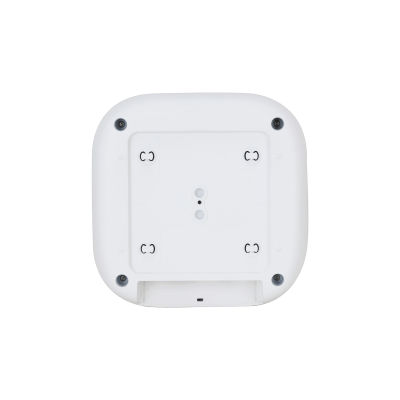

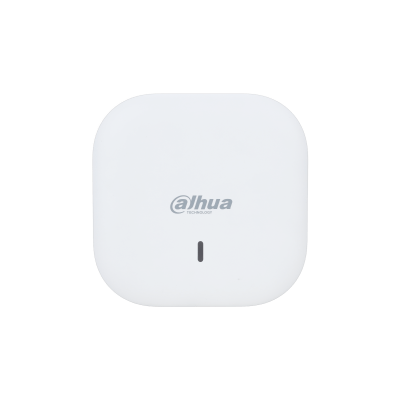

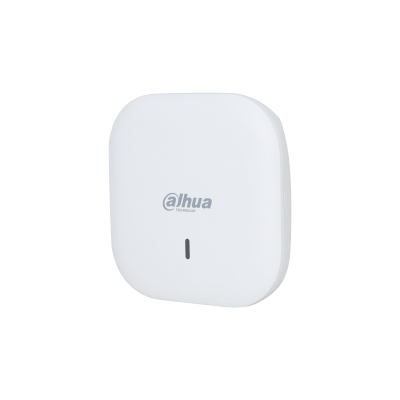

AWA6330-C
Dahua รุ่น AWA6330-C
802.11ax Indoor Wireless Access Point
- จุดเชื่อมต่อไร้สายในร่ม 802.11ax
- เสาอากาศภายใน 6 สตรีมวิทยุ Triple
- อัตราการเข้าถึงสูงสุด 3.267 Gbps
- DL/UL มู-มิโม > OFMA.
- เครื่องมือเพิ่มประสิทธิภาพ RF
- กำลังส่งสูงสุดถึง 20 dBm
- เสาอากาศขยายได้ถึง 5 dBi
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Dahua AWA6330-C
802.11ax Indoor Wireless Access Point
> 802.11ax Indoor Wireless Access Point.
> Internal Antennas 6 Streams Triple Radio.
> Up to 3.267 Gbps access rate.
> DL/UL MU-MIMO.
> OFDMA.
> RF Optimizing Engine.
> Maximum transmit power up to 20 dBm.
> Antenna gain up to 5 dBi.
Specifications
|
Hardware AWA6330-C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight (excluding mounting accessories) |
0.94 kg (2.07 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (excluding mounting and accessories) |
210 mm × 210 mm × 45 mm (8.27″ × 8.27″ × 1.77″) (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Ports |
1 x 100M/1000M/2.5Gbps Base-T RJ-45 1 x 100M/1000 Mbps Base-T RJ-45 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
Port1 (2.5GE): 802.3at/802.3af Port2 (GE): PSE, 802.3af |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Local Power Supply |
54 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Antenna |
Built-in omni-directional antenna Radio 1 : 5dBi antenna gain @ 5G Radio 2 : 5dBi antenna gain @ 5G Radio 3 : 5dBi antenna gain @ 2.4G or 5dBi antenna gain @ 5G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Frequencies |
802.11ax/ac wave2/ac/n/a: 5.725 GHz–5.850 GHz; 5.47 GHz–5.725 GHz; 5.15 GHz–5.35 GHz 802.11ax/b/g/n: 2.4 GHz–2.483 GHz MIMO-OFDM (11n): MCS 0-31 MIMO-OFDM (11ac): MCS 0-11 MIMO-OFDM (11ax): MCS 0-11 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Modulation Mode |
11b: DSS: CCK@5.5/11 Mbps, DQPSK@2 Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24 Mbps, QPSK@12/18 Mbps, BPSK@6/9 Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Maximum Transmit Power |
20 dBm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Reset/Restoration To Factory Default |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
State LED |
Alternating flashing mode, orange/green/blue for different working states, breathing mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Enviorment |
Indoor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
–10 °C to 55 °C (14 °F to 131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–40 °C to 70 °C(–40 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Humidity |
5%–95% (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–95% (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection Class |
IP42 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
EMC |
CE EMC, CE RED |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MTBF |
>250000H |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Software specifications AWA6330-C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compliance |
Compliant with 802.11a/b/g/n/ac/ac wace2/ax |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Frequencies And MIMO |
1. 5G (1) 2*2 MIMO 1.2 Gbps+5G (2) 2*2 MIMO 1.2 Gbps+5G (3) 2*2 MIMO 0.867 Gbps 2. 5G (1) 2*2 MIMO 1.2Gbps+5G (2) 2*2 MIMO 1.2 Gbps+2.4G 2*2 MIMO 0.4 Gbps 3. 5G (1) 2*2 MIMO 1.2Gbps+2.4G 2*2 MIMO 0.575 Gbps+5G(2) 2*2 MIMO 0.867 Gbps 4. 5G (1) 2*2 MIMO 1.2Gbps+2.4G (1) 2*2 MIMO 0.575 Gbps+2.4G (2) 2*2 MIMO 0.4 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Bandwidth |
20 MHz/40 MHz/80 MHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WLAN Basics |
Maximum number of clients per radio: 512 Virtual APs: 32 Open system/shared key authentication Broadcast probe request acknowledge control Concurrent login of WPA, WPA2, WPA3 and Pre-RSNA users RTS/CTS CTS-to-self 802.11k and 802.11v smart roaming 802.11r fast transition roaming Advanced Traffic Management Restrict low rate/sticky terminals access Channel reuse Receiver sensitivity adjustment Automatic channel/power/bandwidth adjustment Hide SSID Hotspot 2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Security Policy |
WEP-64/128/152bit, dynamic WEP, TKIP, AES, EAP, CCMP , WPA3 Multiple triggering conditions for unicast and broadcast key update Support 802.11i 802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK Layer 2 user isolation SSID-based user isolation Packet filtering MAC address filtering Broadcast storm suppression Wireless EAD SSID and VLAN binding Rogue device detection and countermeasure Dynamic ARP Inspection IP Source Guard (IPSG) WIDS/WIPS Management frame protection (802.11w) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
AAA |
RADIUS client Multiple-domain authentication server Backup authentication server |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Layer 2 And Layer 3 Features |
IP address configuration: Static IP (available only in fat AP mode)/DHCP assigned IP (Option 60) IPV6: Native IPv6/IPv6 Portal/IPv6 SAVI ACL: IPv4/IPv6 Local forwarding based on SSID and VLAN Link Layer Discovery Protocol (LLDP) SSID-based VLAN assignment EoGRE Tunnel Multicast: IGMP Snooping/MLD Snooping |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
QoS |
802.11e: Wi-Fi Multimedia (WMM) 802.1p priority and marking on Ethernet ports Priority mapping for wired and wireless packets SSID/VLAN and QoS policy mapping Layer 2 to Layer 4 packet filtering and traffic classification CAR Client bandwidth management Traffic-based load balancing Session-based load balancing Frequency-based load balancing (supports dual-band) Band navigation (5G priority) Multicast optimization (IPv4/IPv6) Call Admission Control (CAC) Airtime optimization Airtime fairness Layer 4-7 application identification SVP Phone Per-packet power control (PPC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Management And Maintenance |
AP Working Mode: Fit/Fat Network management:Trap, HTTP(S), SSH, Telnet, FTP/TFTP, SNMP V1/V2/V3 only applicable in Fat mode Management SSID Syslog Remote probing and analysis |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
