BL-855P48A-S7
ZKTeco รุ่น BL-855P48A-S7
คุณสมบัติ
- ขนาดเลนส์ 1/2.8 ” ชนิดเซนเซอร์ CMOS
- ความละเอียด 5 MP (2560*1920) @25fps
- ระยะอินฟาเรด 80 ม.
- ชนิดของเลนส์ Motorized 2.8 – 12 มม.
- รองรับ Audio/Alarm/RS485/SD Card Slot
- รองรับ PoE, IP67
- ตัวเครื่องทำมาจากเหล็ก
- รองรับระบบตรวจจับใบหน้า
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

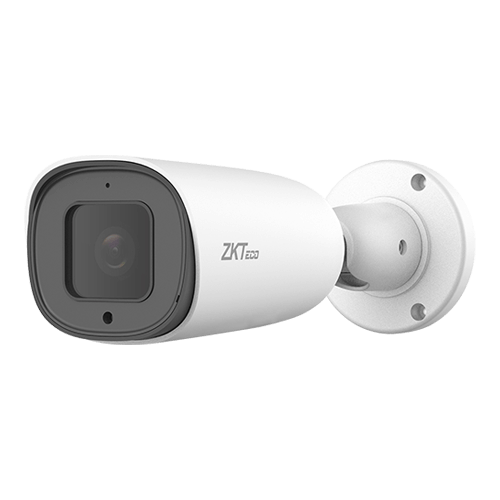

ZKTeco BL-855P48A-S7
1/2.8” 5MP Sony STARVIS CMOS sensor H.265+ triple-stream encoding High-quality optical lens: 2.8~12mm 80m IR effective range Built-in PoE An embedded facial recognition algorithm Capacity of 2,000 face templates in the camera White/Black-list alarm deployment Intelligent video aanalytics available Multiple web browsers supported Remote viewing with mobile application or VMS Lightning protection up to 6KV IP67 metal casing
พารามิเตอร์
| CAMERA BL-855P48A-S7 | |
| Image Sensor | 1/2.8” CMOS |
| Effective pixels | 2560*1920 |
| Min. Illumination | Color: 0.1Lux@F1.7 (AGC ON) B/W: 0.001Lux@F1.7 (AGC ON) |
| Flash / DDR | 128Mb / 1Gb |
| IR LED No. | 2 |
| IR Distance | 80m |
| S/N Ratio | >52dB |
| LENS | |
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 2.8mm~12mm |
| Aperture | F1.7~F3.3 |
| FOV | 29.8°~93.5°(h) |
| Optical Zoom | 3x |
| VIDEO BL-855P48A-S7 | |
| Compression | H.265 / H.264 |
| Resolution | 5MP(2560×1920) / 4MP (2688 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720) |
| Bitrate Control | CBR / VBR |
| Bitrate | H.265: 4Mbps – 16Mbps H.264: 5Mbps – 20Mbps |
| Multi-Streaming | Main Stream: 5MP@25fps/ 4MP@25fps / 3MP@25fps /1080P@25fps/ 960P@25fps / 720P@25fps Sub Stream: D1@25fps / VGA@25fps / CIF@25fps Third Stream: 1920×1080@25fps |
| Motion Detection | Support |
| Digital Zoom | Support |
| Audio Compression | G7.11u |
| Privacy Mask | 5 areas |
| WDR | DWDR |
| Day / Night | Support |
| White Balance | Support |
| Corridor Mode | Support |
| Defog | Support |
| Noise Reduction | 2D/3D DNR |
| Flip | Support |
| HLC | Support |
| BLC | Support |
| ROI | 4 areas |
| Anti-flicker | Support |
| IVA BL-855P48A-S7 | |
| Intelligent Video | Face Detection |
| Facial Detection | |
| Face Detected Per Frame | 6 |
| Detected Face Size | 80 x 80 ~ 300 x 300 Pixels |
| Face Quality Filtering | Support |
| Detection Area | User-defined |
| Capture Response | ≤200ms |
| NETWORK | |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, RTMP |
| Interoperability | ONVIF Profile S, SDK, API |
| Max. Online Users | 3 |
| Web Browser | IE / Firefox / Chrome / Safari |
| Management Software (VMS) | AntarVis 2.0 / ZKBioSecurity IVS / ZKBio Access IVS |
| Operation System | Windows |
| Mobile APP | AntarView Pro |
| P2P Cloud Service | Support |
| INTERFACE | |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Audio I/O | 1/0 |
| Alarm I/O | 2/1 |
| RS485 | Support |
| Reset Button | Support |
| Micro-SD Slot | Support (up to 128GB) |
| GENERAL | |
| Power Supply | PoE (IEEE802.3af), DC 12V±10% |
| Power Consumption | <3W |
| Ingress Protection | IP67 |
| Dimensions (L*W*H) | 246 * 85 * 76 (mm) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 10% to 90% |
| Net Weight | 0.5kg |
PDF ดาวน์โหลด
