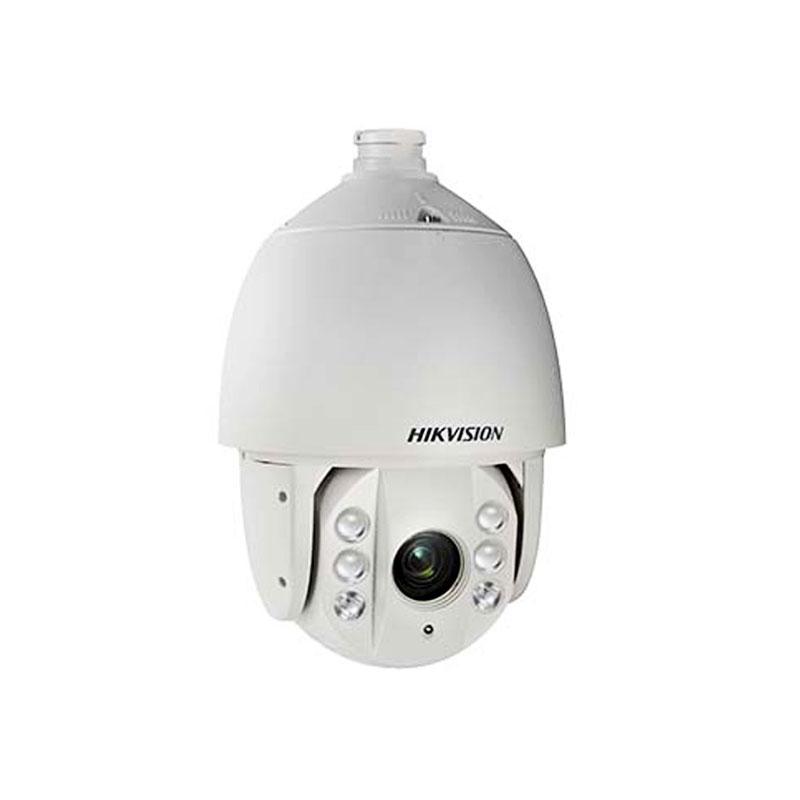

HIKVISION IP Camera รุ่น DS-2DE7230IW-AE
HIKVISION IP Camera รุ่น DS-2DE7230IW-AE
2MP 30X Network IR PTZ Dome Camera
- อิมเมจเซนเซอร์ 1/2.8’’ CMOS, ความละเอียด 2 ล้านพิกเซล1920×1080
- 25 เฟรมเรตที่ภาพ 2 ล้านพิกเซล
- ระยะอินฟาเรต 150 เมตร
- มีเทคโนโลยีย้อนแสง 3D DNR, DWDR
- ซัพพอร์ท 3D intelligent positioning function
- ซูมเลนส์ 30 เท่า
- มาตรฐานกันฝุ่นกันน้ำ IP66
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3″ Progressive Scan CMOS |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01lux, 0 lux with IR |
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| WDR: | | | DWDR |
| Shutter Time: | | | 1-1/10,000s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16X |
| Privacy Masking: | | | 2 privacy masks programmable |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
| Focal Length: | | | 4.3-129mm, 30x |
| Zoom Speed: | | | Approx.3s(Optical Wide-Tele) |
| Angle of View: | | | 65.5-2.11 degree (Wide-Tele) |
| Minimum Working Distance: | | | 10-1,500mm(Wide-Tele) |
| Aperture Range: | | | F1.6 – F5.0 |
| Pan & Tilt | ||
| Pan Range: | | | 360°endless |
| Pan Speed: | | | Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s |
| Tilt Range: | | | -15°-90° (Auto Flip ) |
| Tilt Speed: | | | Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Freeze Frame: | | | Support |
| Infrared | ||
| IR irradiation distance: | | | 150m |
| IR irradiation angle: | | | Adjustable by zoom |
| Alarm | ||
| Alarm Input: | | | 2 |
| Alarm Output: | | | 1 |
| Alarm Actions: | | | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
| Input & Output | ||
| Audio Input: | | | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output: | | | 1 Audio output interface Line level, impedance: 600Ω |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 1920×1080 |
| Main Stream: | | | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
| Sub Stream: | | | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) |
| Third Stream: | | | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) |
| Video Compression: | | | H.264 / MJPEG |
| ROI encoding: | | | Support 2 areas with adjustable levels |
| Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2 |
| No. of Simultaneous Users: | | | Up to 20 users |
| Dual Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC cardSupport Edge recording |
| Security Measures: | | | User authentication (ID and PW), host authentication (MAC address) |
| Hik-Connect: | | | Support |
| Client GUI | ||
| Camera Control: | | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 + |
| General | ||
| Menu Language: | | | English |
| Power Supply: | | | 24 VAC & Hi-PoE |
| Power Consumption: | | | Max40W |
| Working Temperature/Humidity: | | | -30 ℃-65℃(-22℉-149℉)(outdoor) 90% or less |
| Protection Level: | | | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | | | Various mounting modes optional |
| Dimensions: | | | Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor) |
| Weight (approx.): | | | 4.5kg(9.92Ibs) |
| Mount Option: | | | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box |
