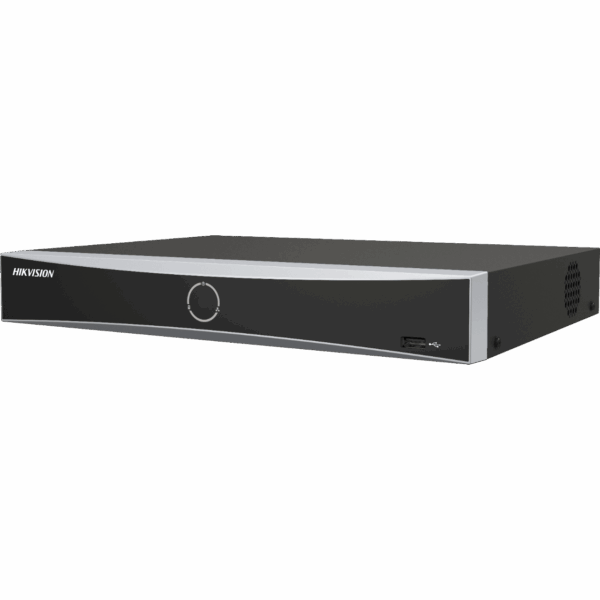

DS-7608NXI-K2

HikVision รุ่น DS-7608NXI-K2

อินพุตกล้อง IP สูงสุด 8 ช่อง
รูปแบบวิดีโอ H.265+/H.265/H.264+/H.264
ความสามารถในการถอดรหัสสูงสุด 2-ch@12 MP หรือ 3-ch@8 MP หรือ 6-ch@4 MP หรือ 12-ch@1080p
แบนด์วิธขาเข้าสูงสุด 80 Mbps
นำเทคโนโลยี Hikvision Acusense มาใช้เพื่อลดเวลาและค่าใช้จ่ายด้านความปลอดภัย

หมวดหมู่: Hikvision, NVR, NVR 8 Channel ป้ายกำกับ: Hikvision

Up to 8-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection And Analytics Performance1-ch, 8 MP
Face Picture Comparison4-ch

By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

IP Video Input8-ch
Incoming Bandwidth80 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA independent output
CVBS OutputN/A
Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio1-ch, RCA (Linear, 1 KΩ)

Decoding FormatH.265/H.265+/H.264+/H.264
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback8-ch
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

Remote Connection128
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
DS-7608NXI-K2 Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply 12 VDC, 3.3 A
Consumption≤ 15 W (without HDD)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
Weight≤ 1 kg (without HDD, 2.2 lb.)

Certification DS-7608NXI-K2
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
