ES-852O21C-S5-MI

ZKTeco รุ่น ES-852O21C-S5-MI

คุณสมบัติ

  • ขนาดเลนส์ 1/2.9 ” ชนิดเซนเซอร์ CMOS
  • ความละเอียด 2 MP (1920*1080)
  • ระยะอินฟาเรด  30 ม.
  • ชนิดของเลนส์ Fixed Lens 3.6 มม.
  • รองรับ PoE, IP67
  • ตัวเครื่องทำมาจากเหล็ก
  • รองรับระบบตรวจจับใบหน้า
  • ไมโครโฟนในตัว
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

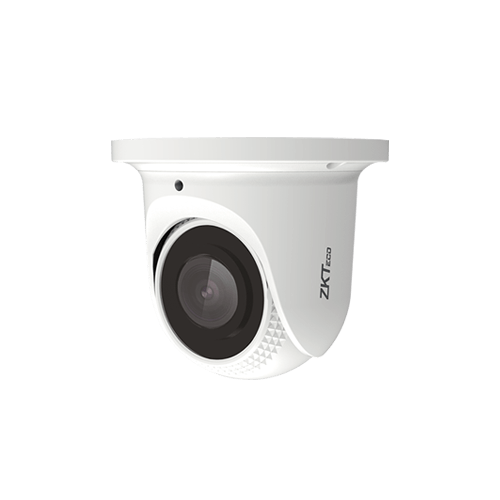

ZKTeco ES-852O21C-S5-MI

2MP Fixed Lens Face Detection Eyeball IP Camera

ES-852O21C-S5-MI

BioEco Series is a super cost-efficient solution that is powered by cutting-edge technology for crystal clear video monitoring with embedded face detection algorithm, the camera supports White/Black list event alarm deployment in different scenarios. The camera also supports multiple industry-leading Intelligent video analytic functions, such as Face Detection, Line Crossing, Intrusion, Object Left/Lost, Counting for smart event alarms. The P2P cloud function is built-in for every device , allowing more convenient and flexible remote real-time viewing and monitoring.

H.265
ES-852O21C-S5-MI H.265 technology is an evolutionary optimization of traditional H.264; it includes a series of encoding strategies such as dynamic ROI,smart 2D&3D noise reduction, and so on, for delivering high-quality videos, and significantly saving up to 70% bandwidth and storage.
Protection ES-852O21C-S5-MI
ES-852O21C-S5-MI With the precise mechanical and rugged metal casing design, IP cameras of the BioEco series rated IP67 could stand against water and
dust for a long time.
With 10% of input voltage tolerance, the cameras could work safely under extreme or unstable power conditions.
With a working temperature range from -30°C to 60°C, the cameras could adapt to a variety of harsh outdoor environments.

พารามิเตอร์

CAMERA
Model ES-852O21C-S5-MI
Image Sensor 1/2.9” CMOS
Effective pixels 1920*1080
Min. Illumination Color: 0.5Lux@F2.0 (AGC ON) / B/W: 0.001Lux@F2.0(AGC ON)
Flash / DDR 128Mb / 512Mb
IR LED No. 2
IR Distance 30m
S/N Ratio >50dB
LENS
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm
Aperture F2.0
FOV 104.14°
Optical Zoom N/A
VIDEO
Compression H.265 / H.264
Resolution 1080P (1920 × 1080) / 1.3M (1280 × 960) / 720P (1280 × 720)
Bitrate Control CBR / VBR
Bitrate H.265: 128Kbps – 6Mbps / H.264: 128Kbps – 6Mbps
Multi-Streaming Main stream: 1080P@25fps / 960P@25fps / 720P@25fps
Sub stream: D1@25fps / VGA@25fps / CIF@25fps
Third stream: N/A
Motion Detection Support
Digital Zoom Support
Audio Compression G7.11u
Privacy Mask 4 areas
WDR DWDR
Day / Night Support
White Balance Support
Defog N/A
Noise Reduction 2D/3D DNR
Mirror/Flip Support
Corridor Mode Support
HLC Support
BLC Support
ROI 4 areas
Anti-flicker N/A
IVA
Intelligent Video Face Detection
FACIAL DETECTION
Face Templates N/A
Face Detected per Frame 5
Detected Face Size 80×80~300×300 Pixels
Face Quality Filtering Support
Detection Area User-defined
Capture Response ≤200ms
NETWORK
Protocol TCP/IP, UDP, HTTP, HTTPS,DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP
Interoperability ONVIF, GB28181
Max. Online Users 3
Web Browser IE / Firefox / Chrome / Safari
Management Software (VMS) AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS
Operation System Windows
Mobile APP AntarView Pro
P2P Cloud Service Support
INTERFACE
Ethernet 1 RJ-45 port (10/100Mbps)
Audio I/O Built-in Mic for audio in
Alarm I/O N/A
RS485 N/A
Reset Button N/A
Micro-SD Slot N/A
ANR N/A
USB N/A
GENERAL
Power Supply PoE (IEEE802.3af), DC 12V±10%
Power Consumption <3.7W
Ingress Protection IP67
Dimensions Φ107 x 107 (mm)
Working Temperature -20°C ~ 55°C
Working Humidity 10% ~ 90%
Net Weight 0.39kg
Gross Weight 0.52kg
