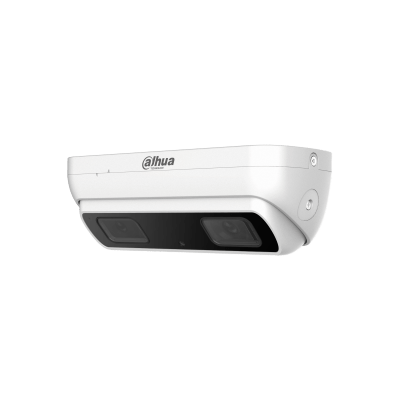

Dahua รุ่น IPC-HDW8341X-3D

3MP Dual-Lens People Counting AI Network Camera

  • Two 1/2.8” 3Megapixel progressive scan STARVISTM CMOS
  • รองรับระบบ H.265&H.264 triple-stream encoding
  • อัตราเฟรมเรท25fps@3MP(2048×1536)
  • WDR(120dB)ย้อนแสง, โหมกลางวัน / กลางคืนควบคุมด้วยออร์โต้ (ICR), 3DNR, AWB, AGC, BLC
  • ตรวจสอบเครือข่ายหลายช่องทาง : Web viewer,CMS(DSS/PSS) & DMSS
  • เลนส์ฟิก 2.8mm,3.6mm
  • ระยะอินฟาเรท 10เมตร
  • Micro SD memory
  • มาตรฐานกันฝุ่น กันน้ำ  IP67
  • รองรับ PoE
  • ซัพพอร์ต People Counting: Support line crossing people counting, region people counting

หมวดหมู่: , , , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Camera
Image Sensor Two 1/2.8”3Megapixel progressive scan CMOS
Effective Pixels 2048(H)x1536(V)
RAM/ROM 512MB/4096MB
Scanning System Progressive
Minimum Illumination 0.009Lux/F1.8 (Color,1/3s,30IRE)

0.08Lux/F1.8 (Color,1/30s,30IRE)

0Lux/F1.8(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm)
Max. Aperture F1.8
Angle of View H: 106° (80°), V:80° (58°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.6m (0.9m)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 45m(147ft) 18m(59ft) 9m(29ft) 4m(13ft)
3.6 mm 57m(187ft) 23m(75ft) 11m(36ft) 6m(19ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Tilt:-10˚~70˚;
Artificial Intelligence
People Counting line crossing people counting, region people counting, Height filter, loitering filter
General Intelligence
Event Trigger Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly
General Intelligence Heatmap
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 3 Streams
Resolution 3MP(2048×1536)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480) / VGA(640×480)/ CIF(352×288/342×240)
Frame Rate Main Stream: 3MP (1~25fps)
Sub Stream 1: D1 (1 ~ 25/30fps)
Sub Stream 2: 6MP (1~7fps, For Debugging Only)
Bit Rate Control CBR/VBR
Bit Rate H.264: 192~ 10240Kbps

H.265: 80~ 6144Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip N/A
Mirror N/A
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (100/1000Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B
Interface
Video Interface 1 port (For Adjustment Only)
Audio Interface 2/1 channel In/Out (RCA), Built-in Mic
RS485 N/A
Alarm 2 channel In: 5mA 5VDC

2 channel Out: 300mA 12VDC
Electrical
Power Supply DC12V, PoE (IEEE 802.3af)(Class 0)
Power Consumption < 12W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 204mmx78mmx62mm (8.03″x3.07″x2.44″)
Net Weight 0.8kg (1.76lb)
Gross Weight 1.09kg (2.40lb)
