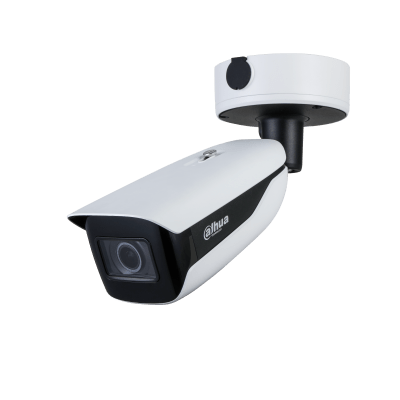

Dahua รุ่น IPC-HFW7842H-Z

8MP IR Bullet WizMind Network Camera

  • 8MP, เซ็นเซอร์ภาพ CMOS 1/1.8″, ความสว่างต่ำ, ความคมชัดของภาพสูง
  • เอาต์พุตสูงสุด 8MP (3840×2160) @25fps/30fps
  • การเข้ารหัส H.264&H.265 อัตราการบีบอัดสูง
  • ไดนามิกกว้าง กลางวัน/กลางคืน 3D NR, AWB, HLC, BLC > ROI, SVC, SMART H.264+/H.265+, การเข้ารหัสที่ยืดหยุ่น, ใช้ได้กับแบนด์วิดธ์และสภาพแวดล้อมการจัดเก็บข้อมูลที่หลากหลาย
  • ด้วยอัลกอริธึมการเรียนรู้เชิงลึก รองรับการนับจำนวนคน การตรวจจับใบหน้า การป้องกันปริมณฑล ฯลฯ > ปลุก: 3 ใน 2 ออก; เสียง: 1 ใน 1 ออก; อาร์เอส-485; บีเอ็นซี; รองรับสูงสุด การ์ด SD 256G
  • แหล่งจ่ายไฟ 24V AC/12V DC/PoE (พอร์ตจ่ายไฟจะแตกต่างกันไปตามแหล่งจ่ายไฟ)
  • ห้าสตรีมสำหรับวิดีโอ HD สามช่องสัญญาณ
  • IP67, เกรดป้องกัน IK10
  • เอาต์พุตกำลังไฟ DC 12V สูงสุด ปัจจุบัน 165mA ติดตั้งง่าย
หมวดหมู่: , , , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Camera
Image Sensor 1/1.8”8Megapixel progressive CMOS
Effective Pixels 3840 (H) × 2160 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.003 Lux@F1.2 (Color, 30IRE)

0.0003 Lux@F1.2 (B/W, 30IRE)

0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 60 m (196.85 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type Module interface
Focal Length 2.7 mm–12 mm
Max. Aperture F1.2
Field of View Horizontal: 114°(W)–47°(T)

Vertical: 59°(W)–27°(T)

Diagonal: 141° (W–55°(T)
Iris Type Auto; Precise iris control
Close Focus Distance W: 1 m (3.28ft)

T: 2.5 m (8.20ft)
DORI Distance Lens Detect Observe Recognize Identify
W 87.2 m (286.09 ft) 34.9 m (114.50 ft) 17.4 m (57.09 ft) 8.7 m

(28.54 ft)
T 186.7 m (612.53 ft) 74.7 m (245.07 ft) 37.3 m (122.38 ft) 18.6 m (61.02 ft)
Smart event
IVS Abandoned object, moving object
Professional, intelligent
IVS (Perimeter Protection) Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Detection Face detection, track, priority, snapshot,Upload Optimized snapshot picture; face

enhancement, face exposure, face attribute extract,

6 attributes and 8 expressions: Gender, age, glasses,

expressions (anger, sadness, disgust, fear, surprise,

calm, happiness and confusion), Mouth mask, beard; Face matting setting: face, single inch photo Three snapshot;

methods: real-time snapshot, priority snapshot, quality priority;

Face angle filter Priority time setting;

Support Duration Optimal,Non-living Filtering;
ANPR ANPR, track, priority, snapshot

Vehicle attributes: license plate, vehicle type, vehicle color,vehicle brand

Other attributes: sun visor, seat belt, smoking, phoning, in-car accessories, annual vehicle inspection mark
Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
People Counting Support tripwire number counting, people counting in area, and displaying and outputting yearly/monthly/daily reports.Support queue management, and displaying and outputting monthly/daily reports.Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functions
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265, H.264,H.264H,H.264B, MJPEG(only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main Stream: 3840 × 2160 (1–25/30 fps)
Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps)
Third stream: 1920 × 1080 (1–25/30 fps)
Fourth stream: 1920 × 1080 (1–25/30 fps)
Fifth stream: 704 × 576 (1–25fps);704 × 480 (1–30fps)
Stream Capability 5 streams
Resolution 8M (3840 × 2160), 6M (3072 × 2048/3072 × 1728), 5M (2592 × 1944), 4M (2688 × 1520), 3M (2048 × 1536/2304 × 1296), 1080p(1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps-16384 kbps

H.265: 12 kbps-16384 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional Custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Electronic Image Stabilization(EIS) Yes
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution or below.)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; G726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception detection; safety exception, Queue Management
Network
Network RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMP
User/Host 20(Total bandwidth: 160M)
Storage FTP; Micro SD card (256 G); NAS; SFTP
Browser IE: IE9 and later

Chrome: Chrome 42 and later

Firefox: Firefox 48.0.2 and later
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS, Android
Certification
Certifications CE-LVD: EN62368-1,EN60950-22 (optional)
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL 50E NEMA Type 4X (optional)
Port
RS-485 1 (Bit rate: 1200 bps-115200 bps)
Audio Input Audio Interface: 1/1 channel In/Out
Audio Output
Alarm Input 3 channel In: 5mA 5V DC

2 channel Out: 1000mA 30V DC/500mA 50V AC
Alarm Output
Power
Power Supply 12V DC/24V AC/PoE+ (802.3at); ePoE
Power Consumption Basic power consumption: 3.7W (12V DC); 5.7W(24V AC); 5.5W (PoE)

Max. power consumption (Max. stream + intelligent function + IR LED + focus): 12.2W (12V DC);17.3W(24V AC); 17.1W (PoE)

Heat power consumption: 3.3W (12V DC);5.5W(24V AC); 5.5W (PoE)
Environment
Operating Conditions –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional)
Structure
Casing Metal + Plastic
Dimensions 340.1 mm × 108.5 mm × 92.9 mm

(13.39″ × 4.27″ × 3.66″) (L × W × H)
Net Weight 1600 g (3.53 lb)
Gross Weight 2400 g (5.29 lb)
