Sensor 1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
DORI Distance
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 42 16.8 8.4 4.2
4.0 60 24 12 6
Angle of View (H) 112.7° 91.2°
Angle of View (V) 60.1° 47.9°
Angle of View (O) 121.2° 95.9°
Adjustment Angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120db
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 4 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°
Dewarping Supported
HLC Supported
BLC Supported

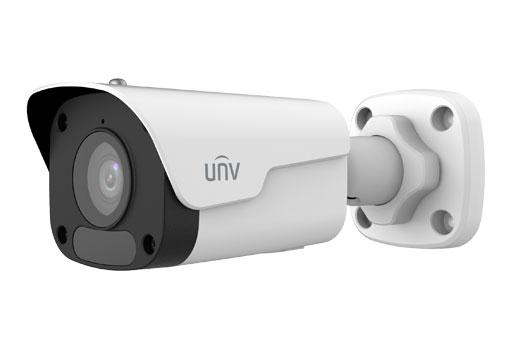

IPC2122LB-DSF40KM
