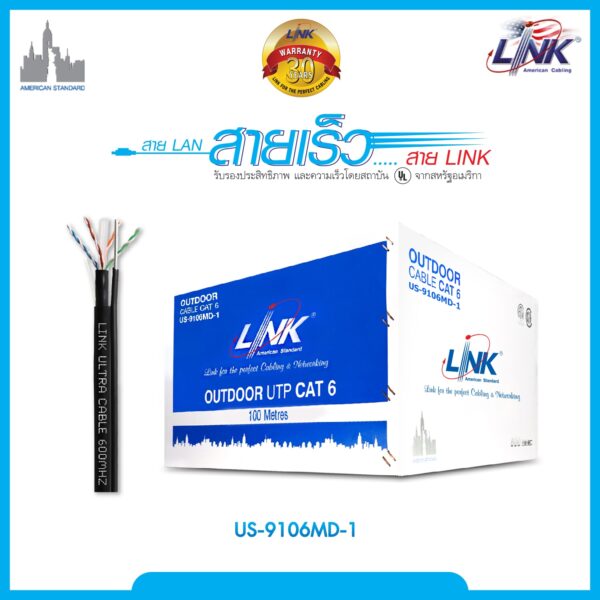

LINK US-9106MD-1
LINK US-9106MD-1
CAT6 UTP PE Outdoor Cable with Drop Wire (Double Jacket, 600MHz, 100m)
- Category 6 U/UTP cable with 4 pairs 23AWG solid bare copper conductor
- Supports bandwidth up to 600MHz for high-speed data transmission
- Double Jacket PE construction with galvanized steel messenger wire for aerial installation
- Cross Filler design minimizes crosstalk and improves signal performance
- Supports 10 Gigabit Ethernet, PoE, PoE+ and outdoor CCTV applications
- Complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, UL and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9106MD-1
| Features | Description |
|---|---|
| Device Type | CAT6 U/UTP Outdoor Double Jacket LAN Cable with Drop Wire |
| Category | Category 6 (CAT6) |
| Bandwidth | 600 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 23 AWG |
| Cable Construction | 4 Pairs (8 Wires) U/UTP with Cross Filler and Galvanized Steel Drop Wire |
| Messenger Wire | Galvanized Steel Wire, 1.3 mm |
| Jacket Material | Double Jacket (Inner FR-PVC + Outer UV-Proof PE) |
| Jacket Color | Black |
| Cable Length | 100 Meters / Reel in Box |
| Application | Outdoor LAN, CCTV, IP Camera, Building-to-Building Network, Wireless Access Point and Aerial Installation |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | CAT6 U/UTP Outdoor Double Jacket |
| Frequency | 600 MHz |
| Conductor Material | 23 AWG Solid Bare Copper |
| Number of Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE |
| Cross Filler | FRPE Cross Filler |
| Inner Jacket | Lead-Free FR-PVC |
| Outer Jacket | UV-Proof PE |
| Cable Diameter | 7.4 mm (11.5 mm Including Drop Wire) |
| SMART FEATURES | |
|---|---|
| Double Jacket Construction | Inner FR-PVC Jacket and Outer UV-Proof PE Jacket Provide Enhanced Mechanical Protection and Weather Resistance |
| Integrated Messenger Wire | 1.3 mm Galvanized Steel Wire Supports Secure Aerial Installation Between Buildings or Utility Poles |
| 600 MHz CAT6 Performance | Supports Gigabit Ethernet, 2.5G/5GBASE-T and 10GBASE-T up to 55 Meters |
| Cross Filler Design | Maintains Pair Separation to Minimize Crosstalk and Improve Signal Integrity |
| PoE Ready | Supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Outdoor Double Jacket Cable with Drop Wire |
| Impedance | 100 ± 15 Ohms (1 MHz to 600 MHz) |
| DC Resistance | ≤ 6.658 Ω/100m |
| Propagation Delay | ≤ 536 ns/100m |
| Delay Skew | ≤ 30 ns |
| Minimum Bend Radius | 4 × Cable Diameter (Operation), 8 × Cable Diameter (Installation) |
| Tensile Strength | 16.5 MPa (2400 PSI) |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1, EN 50288-6-1, IEC 61156-5, ICEA S-102-700, UL 444, ASTM D4566-98, CSA 22.2 No.214, RoHS |
| Packaging | 100m Reel in Box |
| Warranty | 30 Years |
Note: The LINK US-9106MD-1 is a 100-meter CAT6 U/UTP outdoor double-jacket LAN cable featuring 23 AWG solid bare copper conductors, 600 MHz bandwidth, a galvanized steel messenger wire, and a UV-resistant PE outer jacket with an inner FR-PVC jacket. It is designed for outdoor aerial installations where high mechanical strength and long-term weather resistance are required.
Important: The LINK US-9106MD-1 provides the same electrical and mechanical performance as the 305-meter US-9106MD model, with the primary difference being its convenient 100-meter Reel-in-Box packaging. Its double-jacket construction offers greater protection than standard outdoor cables, while the integrated messenger wire allows direct aerial installation without requiring a separate support wire. It supports Gigabit Ethernet, 2.5G/5GBASE-T, 10GBASE-T (up to 55 m), IEEE 802.3af/at/bt PoE, HDBaseT 2.0, VoIP, CCTV, and industrial networking applications.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
