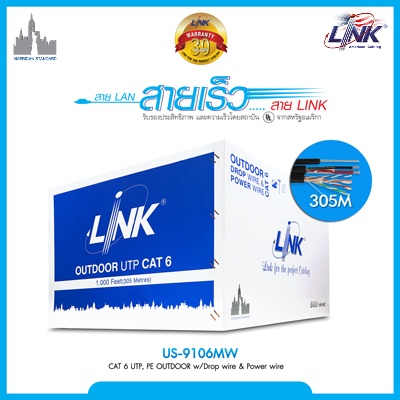

LINK US-9106MW

LINK US-9106MW

LINK US-9106MW

LINK US-9106MW

CAT6 UTP PE Outdoor Cable with Drop Wire & Power Wire (600MHz, 23AWG)

  • Category 6 U/UTP cable with 4 pairs 23AWG solid bare copper conductor
  • Supports bandwidth up to 600MHz for high-speed data transmission
  • PE outdoor jacket with galvanized steel messenger wire for aerial installation
  • Includes 2 power wires for supplying power to network and CCTV devices
  • Supports 10 Gigabit Ethernet, PoE, PoE+ and HDBaseT applications
  • Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class E, UL and RoHS standards
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK US-9106MW

Features Description
Device Type CAT6 U/UTP Outdoor LAN Cable with Drop Wire and Power Wire
Category Category 6 (CAT6)
Bandwidth 600 MHz
Conductor Solid Bare Copper
Wire Gauge 23 AWG
Cable Construction 4 Pairs (8 Wires) U/UTP with Messenger Wire and 2 Power Wires
Messenger Wire Galvanized Steel Wire, 1.3 mm
Power Wire 18 AWG Stranded Bare Copper (2 Cores)
Jacket Material UV Resistant PE (Polyethylene)
Jacket Color Black
Cable Length 305 Meters / Reel in Box
Application Outdoor LAN, CCTV, IP Camera, Wireless Access Point, Building-to-Building Network, Aerial Installation and Industrial Networking
Cable Standard ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E
Category CAT6 U/UTP Outdoor with Drop Wire & Power Wire
Frequency 600 MHz
Conductor Material Solid Bare Copper
Data Conductor Size 23 AWG
Power Wire Size 18 AWG Stranded Bare Copper (24 × 0.2 mm)
Number of Data Conductors 4 Pairs / 8 Wires
Insulation Material HDPE
Cross Filler FRPE Cross Filler
Messenger Wire Galvanized Steel Wire, 1.3 mm
Outer Jacket UV Resistant PE Black Jacket
Cable Diameter 6.5 mm (16.5 mm Including Messenger & Power Wires)
SMART FEATURES
3-in-1 Outdoor Cable Integrates CAT6 Data Cable, Dual 18 AWG Power Wires and Galvanized Messenger Wire into a Single Cable for Simplified Installation
Messenger Wire Support Built-In Steel Messenger Wire Enables Secure Aerial Installation Between Buildings and Utility Poles
600 MHz CAT6 Performance Supports 10 Gigabit Ethernet (Up to 55m), 2.5G/5GBASE-T and Gigabit Ethernet Applications
Outdoor PE Jacket UV Resistant Jacket Protects Against Sunlight, Rain and Harsh Outdoor Environments
PoE Ready Supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (Type 4) Power over Ethernet Applications
GENERAL
Cable Type CAT6 U/UTP Outdoor Cable with Drop Wire & Power Wire
Impedance 100 ± 15 Ohms (1 MHz to 600 MHz)
DC Resistance ≤ 6.658 Ω/100m
Propagation Delay ≤ 536 ns/100m @600MHz
Delay Skew ≤ 30 ns
Minimum Bend Radius 4 × Cable Diameter
Tensile Strength 16.5 MPa (2400 PSI)
Installation / Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +80°C
Standards Compliance ANSI/TIA-568.2-D, ANSI/TIA-568.2-E, ISO/IEC 11801:2017 Class E, EN 50173-1, EN 50288-6-1, IEC 61156-5, UL 444, ASTM D4566-98, CSA 22.2 No.214, RoHS
Packaging 305m Reel in Box
Warranty 30 Years

Note: The LINK US-9106MW is a CAT6 U/UTP outdoor LAN cable featuring 23 AWG solid bare copper conductors, 600 MHz bandwidth, two integrated 18 AWG power wires, and a 1.3 mm galvanized steel messenger wire. It is designed for aerial outdoor installations requiring both data transmission and power delivery, making it ideal for CCTV, IP cameras, wireless access points, and building-to-building network links.

Important: The LINK US-9106MW combines CAT6 networking, dual power wires, and a steel support wire in a single outdoor cable, eliminating the need for separate messenger and power cables. It supports 10GBASE-T (up to 55 meters), 2.5G/5GBASE-T, Gigabit Ethernet, IEEE 802.3af/at/bt PoE, and HDBaseT 2.0 applications while providing excellent UV resistance and mechanical strength for long-span outdoor installations.
