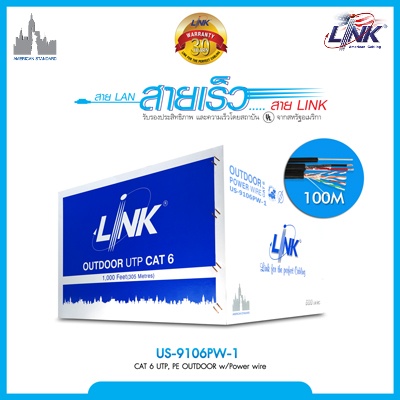

LINK US-9106PW-1
LINK US-9106PW-1
CAT6 UTP PE Outdoor Cable with Power Wire (600MHz, 100m)
- Category 6 U/UTP cable with 4 pairs 23AWG solid bare copper conductor
- Supports bandwidth up to 600MHz for high-speed data transmission
- PE outdoor jacket with UV-resistant protection for outdoor installation
- Includes 2 power wires for supplying power to network and CCTV devices
- Supports 10 Gigabit Ethernet, PoE, PoE+ and HDBaseT applications
- Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class E, UL and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9106PW-1
| Features | Description |
|---|---|
| Device Type | CAT6 U/UTP Outdoor LAN Cable with Power Wire |
| Category | Category 6 (CAT6) |
| Bandwidth | 600 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 23 AWG |
| Cable Construction | 4 Pairs (8 Wires) U/UTP with 2 Power Wires |
| Power Wire | 18 AWG Stranded Bare Copper (2 Cores) |
| Jacket Material | UV Resistant PE (Polyethylene) |
| Jacket Color | Black |
| Cable Length | 100 Meters / Reel in Box |
| Application | Outdoor LAN, CCTV, IP Camera, Network Camera, Wireless Devices, PoE and Power Distribution Applications |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | CAT6 U/UTP Outdoor with Power Wire |
| Frequency | 600 MHz |
| Conductor Material | Solid Bare Copper |
| Data Conductor Size | 23 AWG |
| Power Wire Size | 18 AWG Stranded Bare Copper (2 Cores) |
| Number of Data Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE |
| Cross Filler | FRPE Cross Filler |
| Outer Jacket | UV Resistant PE Black Jacket |
| Cable Diameter | 6.5 mm (12.6 mm Including Power Wire) |
| SMART FEATURES | |
|---|---|
| Integrated Dual Power Wires | Allows Simultaneous Data Transmission and AC/DC Power Delivery Through a Single Cable |
| 600 MHz CAT6 Performance | Supports 10 Gigabit Ethernet (Up to 55m), 2.5G/5GBASE-T and Gigabit Ethernet Applications |
| Outdoor PE Jacket | Provides Excellent Resistance to UV Exposure, Moisture and Harsh Outdoor Weather Conditions |
| Cross Filler Design | Maintains Pair Separation to Minimize Crosstalk and Improve Signal Integrity |
| PoE Ready | Supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (Type 4) Power over Ethernet Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Outdoor Cable with Power Wire |
| Impedance | 100 ± 15 Ohms (1 MHz to 600 MHz) |
| DC Resistance | ≤ 6.658 Ω/100m |
| Mutual Capacitance | ≤ 5.6 nF/100m |
| Propagation Delay | ≤ 536 ns/100m @600MHz |
| Delay Skew | ≤ 30 ns |
| Minimum Bend Radius | 4 × Cable Diameter |
| Tensile Strength | 1200 N |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1, EN 50288-6-1, IEC 61156-5, ICEA S-102-700, UL 444, ASTM D4566-98, CSA 22.2 No.214, RoHS |
| Packaging | 100m Reel in Box |
| Warranty | 30 Years |
Note: The LINK US-9106PW-1 is a 100-meter CAT6 U/UTP outdoor LAN cable featuring 23 AWG solid bare copper conductors, 600 MHz bandwidth, two integrated 18 AWG power wires, and a UV-resistant PE jacket. It is designed for outdoor structured cabling where both network connectivity and AC/DC power are required for devices such as CCTV cameras, IP cameras, and wireless equipment.
Important: The LINK US-9106PW-1 offers the same electrical and mechanical performance as the 305-meter US-9106PW model, with the primary difference being its convenient 100-meter Reel-in-Box packaging. It supports 10GBASE-T (up to 55 meters), 2.5G/5GBASE-T, Gigabit Ethernet, IEEE 802.3af/at/bt PoE, HDBaseT 2.0, VoIP, CCTV, and industrial Ethernet applications while allowing both data and power to be installed through a single outdoor cable.
