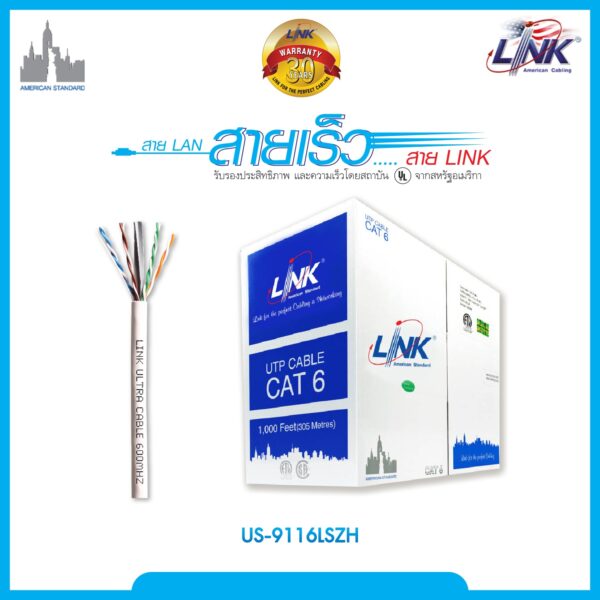

LINK US-9116LSZH
LINK US-9116LSZH
CAT6 UTP Ultra LSZH Network Cable (600MHz, 23AWG)
- Category 6 U/UTP cable with 4 pairs 23AWG solid bare copper conductor
- Supports bandwidth up to 600MHz for ultra high-speed data transmission
- Cross Filler design minimizes crosstalk and improves signal performance
- LSZH jacket provides low smoke and zero halogen protection
- Supports 10 Gigabit Ethernet, PoE, PoE+ and high-performance LAN applications
- Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class E, UL and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9116LSZH
| Features | Description |
|---|---|
| Device Type | CAT6 U/UTP Ultra LSZH LAN Cable |
| Category | Category 6 (CAT6) |
| Bandwidth | 600 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 23 AWG |
| Cable Construction | 4 Pairs (8 Wires) U/UTP with Cross Filler |
| Jacket Material | FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | White |
| Cable Length | 305 Meters / Pull Box |
| Application | Indoor LAN Cabling, Data Center, Enterprise Network, CCTV, IP Camera, VoIP and PoE Applications |
| Cable Standard | ANSI/TIA-568.2-E Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | CAT6 U/UTP Ultra |
| Frequency | 600 MHz |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Number of Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE (High Density Polyethylene) |
| Cross Filler | FRPE Cross Filler |
| Outer Jacket | Lead-Free FR-LSZH |
| Cable Diameter | 6.0 ± 0.2 mm |
| SMART FEATURES | |
|---|---|
| 600 MHz Ultra Performance | Supports High-Speed Data Transmission Beyond Standard CAT6 Requirements for Demanding Network Applications |
| Cross Filler Design | Maintains Pair Separation to Reduce Crosstalk and Improve Signal Integrity |
| LSZH Safety Jacket | Minimizes Smoke and Toxic Halogen Gas Emission During Fire for Safer Indoor Installations |
| 10 Gigabit Ready | Supports 10 Gigabit Ethernet Over Standard CAT6 Distances Where Applicable |
| PoE Support | Compatible with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP LSZH Indoor Cable |
| Impedance | 100 ± 5 Ohms |
| DC Resistance | ≤ 6.658 Ω/100m |
| Mutual Capacitance | ≤ 5.6 nF/100m |
| Propagation Delay | ≤ 536 ns/100m |
| Delay Skew | ≤ 30 ns |
| Minimum Bend Radius | 4 × Cable Diameter |
| Tensile Strength | 110 N |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-E, ISO/IEC 11801:2017, EN 50173-1, IEC 61156-5, IEC 60332-1, IEC 60754-1/2, IEC 61034-1/2, UL 444, CSA 22.2 No.214, ETL Verified, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9116LSZH is a CAT6 U/UTP Ultra LAN cable featuring 23 AWG solid bare copper conductors, 600 MHz bandwidth, FRPE cross filler, and a flame-retardant LSZH jacket. Designed for indoor structured cabling systems, it supports 10 Gigabit Ethernet, PoE applications, IP surveillance, enterprise networking, and data center installations.
Important: The LINK US-9116LSZH is intended for indoor environments where enhanced fire safety is required. Its LSZH jacket reduces smoke and corrosive gas emissions during fire conditions, while the 600 MHz performance, 23 AWG solid copper conductors, and ETL-verified CAT6 compliance make it suitable for high-performance network infrastructure and future-ready installations.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
