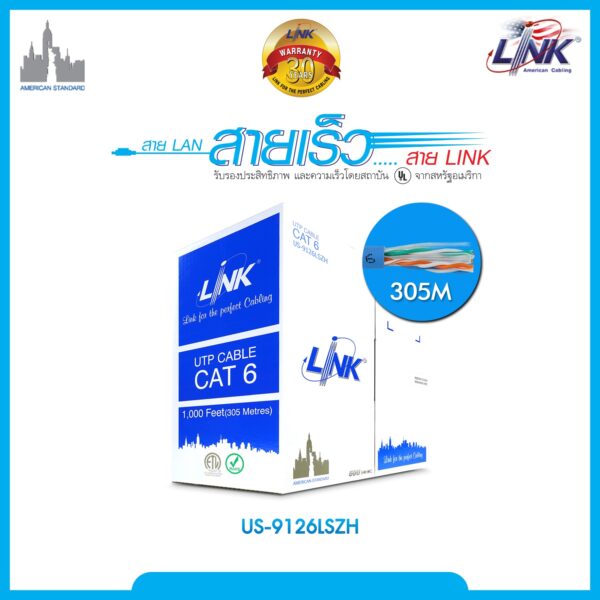

LINK US-9126LSZH
LINK US-9126LSZH
CAT6 UTP Stranded LSZH Network Cable (600MHz, 24AWG)
- Category 6 U/UTP cable with 4 pairs 24AWG stranded bare copper conductor
- Supports bandwidth up to 600MHz for high-speed data transmission
- Cross Filler design minimizes crosstalk and improves signal performance
- LSZH jacket provides low smoke and zero halogen protection
- Supports 10 Gigabit Ethernet, PoE, PoE+ and patch cord applications
- Complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, UL and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9126LSZH
| Features | Description |
|---|---|
| Device Type | CAT6 U/UTP Stranded LSZH Patch Cable |
| Category | Category 6 (CAT6) |
| Bandwidth | 600 MHz |
| Conductor | Stranded Bare Copper |
| Wire Gauge | 24 AWG (7 × 0.20 mm) |
| Cable Construction | 4 Pairs (8 Wires) U/UTP with FRPE Cross Filler |
| Jacket Material | Lead-Free FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | Blue |
| Cable Length | 305 Meters / Pull Box |
| Application | Patch Cord Manufacturing, Horizontal Cabling, Data Network, CCTV, VoIP, PoE and Data Center Applications |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | CAT6 U/UTP Stranded |
| Frequency | 600 MHz |
| Conductor Material | Stranded Bare Copper |
| Conductor Size | 24 AWG (7 × 0.20 mm) |
| Number of Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE (High Density Polyethylene) |
| Cross Filler | FRPE Cross Filler |
| Outer Jacket | Lead-Free FR-LSZH |
| Cable Diameter | 6.15 ± 0.2 mm |
| SMART FEATURES | |
|---|---|
| Stranded Conductor Design | Provides Excellent Flexibility for Patch Cord Manufacturing and Frequent Cable Movement |
| 600 MHz Performance | Supports High-Speed Data Transmission and 10 Gigabit Ethernet Applications |
| LSZH Safety Jacket | Reduces Smoke and Toxic Halogen Gas Emission During Fire for Improved Indoor Safety |
| Cross Filler Structure | Maintains Pair Separation to Reduce Crosstalk and Improve Signal Integrity |
| PoE Ready | Supports IEEE 802.3af, IEEE 802.3at and 2.5G/5G BASE-T (IEEE 802.3bz) Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Stranded LSZH Indoor Cable |
| Impedance | 100 ± 5 Ohms |
| Minimum Bend Radius | 4 × Cable Diameter |
| Tensile Strength | 110 N |
| Ultimate Breaking Strength | >400 N |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801:2017, EN 50173-1, EN 50288-6-2, IEC 61156-5, IEC 60332-1, IEC 60754-1/2, IEC 61034-1/2, UL 444, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9126LSZH is a CAT6 U/UTP stranded LAN cable designed primarily for patch cord and flexible indoor cabling applications. It features 24 AWG (7 × 0.20 mm) stranded bare copper conductors, 600 MHz bandwidth, an FRPE cross filler, and a lead-free LSZH jacket for improved safety and reliable high-speed network performance.
Important: Unlike standard solid-conductor horizontal cables, the LINK US-9126LSZH uses stranded conductors for greater flexibility, making it ideal for patch cord assembly, equipment racks, work areas, and applications requiring frequent cable movement. It supports 10 Gigabit Ethernet, 2.5G/5G BASE-T, PoE/PoE+, VoIP, CCTV, and structured cabling systems.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
