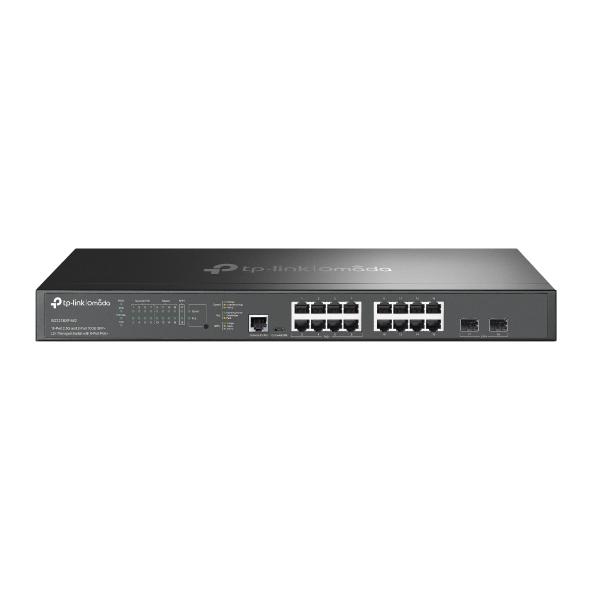

Omada SG3218XP-M2 | 16-Port 2.5G and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+
TP-Link Omada SG3218XP-M2
16-Port 2.5G L2+ Managed PoE+ Switch
- 16×2.5Gbps RJ45 ports with 2×10G SFP+ uplink slots
- Supports 4×PoE++ ports and 12×PoE+ ports
- Supports IEEE 802.3af/at/bt with 240W PoE budget
- Supports VLAN, ACL, QoS, IGMP Snooping and Static Routing
- Cloud management via Omada SDN Controller and Omada App
- Ideal for Wi-Fi 7/6 APs, IP cameras and high-speed networks
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ Omada SG3218XP-M2
| Features | Description |
|---|---|
| Device Type | 16-Port 2.5G L2+ Managed PoE Switch with 10G SFP+ Uplink |
| Network Ports | 16 × 10/100/1000/2500Mbps RJ45 Ports + 2 × 10Gbps SFP+ Slots |
| PoE Standard | IEEE 802.3af/at/bt PoE |
| PoE Budget | Up to 240W Total PoE Power Budget |
| PoE Output | Ports 1-4 PoE++ up to 90W / Ports 5-16 PoE+ up to 30W |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| Management | Omada Cloud Controller, Omada App, Web GUI, CLI, SNMP |
| Smart Features | VLAN, ACL, QoS, Static Routing, IGMP Snooping, ERPS |
| Design | Metal Rackmount Housing with Smart Fan |
| Application | Wi-Fi 7/6 Access Point, IP Camera, Enterprise Network |
| Device Type | Omada L2+ Managed 2.5G PoE Switch |
|---|---|
| Network Ports | 16 × 2.5GBASE-T RJ45 Ports |
| Uplink Ports | 2 × 10G SFP+ Slots |
| Switching Capacity | 120 Gbps |
| Packet Forwarding Rate | 89.28 Mpps |
| MAC Address Table | 16K |
| Jumbo Frame | 9 KB |
| PoE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at / 802.3bt |
| PoE Ports | 16 × 2.5G PoE Ports |
| Total PoE Budget | 240W |
| PoE Output | Port 1-4 Up to 90W (PoE++) / Port 5-16 Up to 30W (PoE+) |
| PoE Functions | Fast PoE, Perpetual PoE |
| SMART FEATURES | |
|---|---|
| Management | Omada Cloud Controller, Omada App, Web GUI, CLI |
| VLAN | 802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN |
| QoS | 802.1p CoS / DSCP Priority, Bandwidth Control |
| Security | ACL, 802.1X, IP-MAC-Port Binding, Port Security |
| Multicast | IGMP Snooping, MLD Snooping |
| NETWORK | |
|---|---|
| Network Standard | IEEE 802.3i / 802.3u / 802.3ab / 802.3bz / 802.3z / 802.3ae / 802.3af / 802.3at / 802.3bt |
| Transmission Method | Store-and-Forward |
| Flow Control | IEEE 802.3x Flow Control |
| Routing | IPv4/IPv6 Static Routing |
| GENERAL | |
|---|---|
| Housing | Metal Rackmount Case |
| Cooling | 2 × Smart Fans |
| Power Supply | 100–240V AC, 50/60Hz |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 180 × 44 mm |
| Installation | Rack Mountable |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The Omada SG3218XP-M2 is a 2.5G L2+ Managed PoE switch with 16 ports, 240W PoE budget, 10G SFP+ uplinks, and advanced network management. Ideal for Wi-Fi 7/6 access points, IP cameras, and enterprise networks.
